EMT 16538 RD (2690927) - Murray 38" Rear-Discharge Lawn Tractor, 16.5hp (2011) 38" Mower Deck - Support Group (885454c) Parts Diagram

38" Rear-Discharge Lawn Tractor, 16.5hp

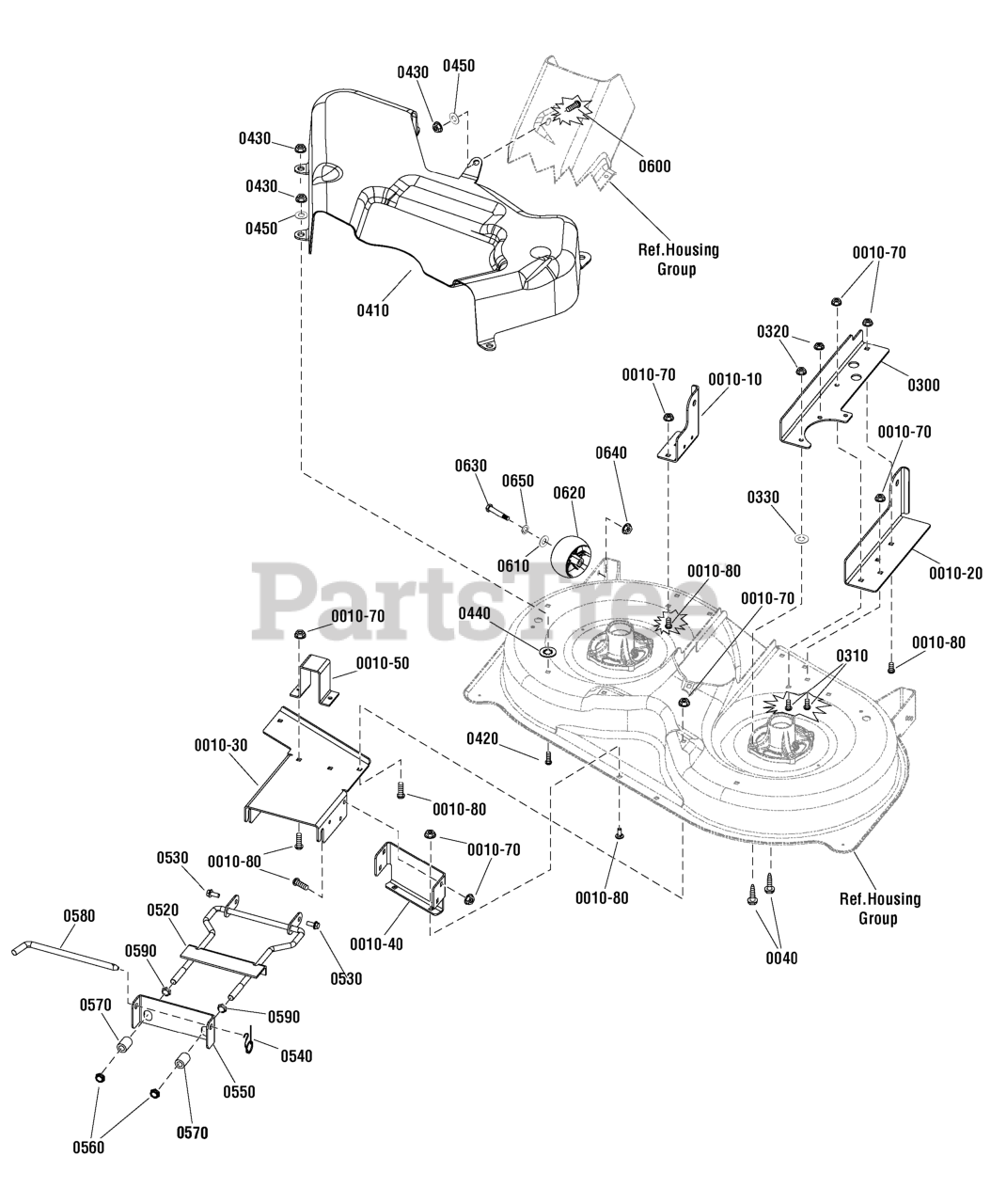

38" Mower Deck - Support Group (885454c) Parts Diagram

  • Title

0010-10

Murray 885462AYP

BRACKET, Deck, Rear

$15.99

$

Usually ships in 2-12 days

0

0010-20

Murray 885463AYP

BRACKET, Rear Lift, LH

$37.99

$

Usually ships in 2-12 days

0

0010-30

Murray 885464AYP

SUPPORT, Deck Front

$49.99

$

Usually ships in 2-12 days

0

0010-40

Murray 885465AYP

BRACKET, Support

$39.99

$

Usually ships in 2-12 days

0

0010-50

Murray 885519AYP

BRACKET, Front Upstop

$18.99

$

Usually ships in 2-12 days

0

0010-70

Murray 1931277SM

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

0010-80

Murray 1931333SM

BOLT, Carriage, Short Neck, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

0040

Murray 1930600SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 1-1/2

$5.49

$

In Stock, Qty 6

0

0300

Murray 885526AYP

BRACKET, Rear Lift, LH

$29.99

$

Usually ships in 2-12 days

0

0310

Murray 1931333SM

BOLT, Carriage, Short Square Neck, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

0320

Murray 1931277SM

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

0330

Murray 1919326SM

WASHER, 5/16

$4.49

$

Usually ships in 2-12 days

0

0410

Murray 885543YP

COVER, Pulley

$296.99

$

Usually ships in 2-12 days

0

0420

Murray 1931333SM

BOLT, Carriage, Short Neck, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

0430

Murray 1931277SM

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

0440

Murray 5025498YP

NUT, Push On, 5/16
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

0450

Murray 1919326SM

WASHER, 5/16

$4.49

$

Usually ships in 2-12 days

0

0520

Murray 885576AYP

ROD ASSEMBLY, Front Hanger

$61.99

$

Usually ships in 2-12 days

0

0530

Murray 1930591SM

CAPSCREW, Hex Lock Flange, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 9

0

0540

Murray 2176012SM

RETAINER, Pin Spring
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

0550

Murray 1730221ASM

HANGER, Front

$14.99

$

Usually ships in 2-12 days

0

0560

Murray 1960379SM

NUT, Hex Lock, 1/2-13

$5.49

$

In Stock, Qty 20+

0

0570

Murray 1679166SM

SPACER, 1/2 x 7/8 x 1 3/16

$7.99

$

In Stock, only 4 left!

0

0580

Murray 1731414SM

ROD, Latch

$15.99

$

In Stock, only 3 left!

0

0590

Murray 1913744SM

NUT, Hex Jam, 1/2-13

$4.99

$

In Stock, Qty 20+

0

0600

Murray 002X53MA

BOLT, Carriage, 5/16-18 x 5/8
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

0610

Murray 1960170SM

WASHER, 1/2
(Superseded to 703853)

$5.49

$

In Stock, Qty 20+

0

0620

Murray 1714760SM

WHEEL, Gauge

$6.99

$

In Stock, Qty 20+

0

0630

Murray 2108765SM

BOLT, 3/8-16 x 2-3/4

$6.49

$

In Stock, Qty 20+

0

0640

Murray 1960687SM

NUT, Hex Flange, ESNA, 3/8-16
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

0650

Murray 0020X3MA

WASHER, Spring, 1/2

$4.49

$

Usually ships in 2-12 days

0
