EMT 16538 RD (2690927) - Murray 38" Rear-Discharge Lawn Tractor, 16.5hp (2011) Collector Group (885453) Parts Diagram

38" Rear-Discharge Lawn Tractor, 16.5hp

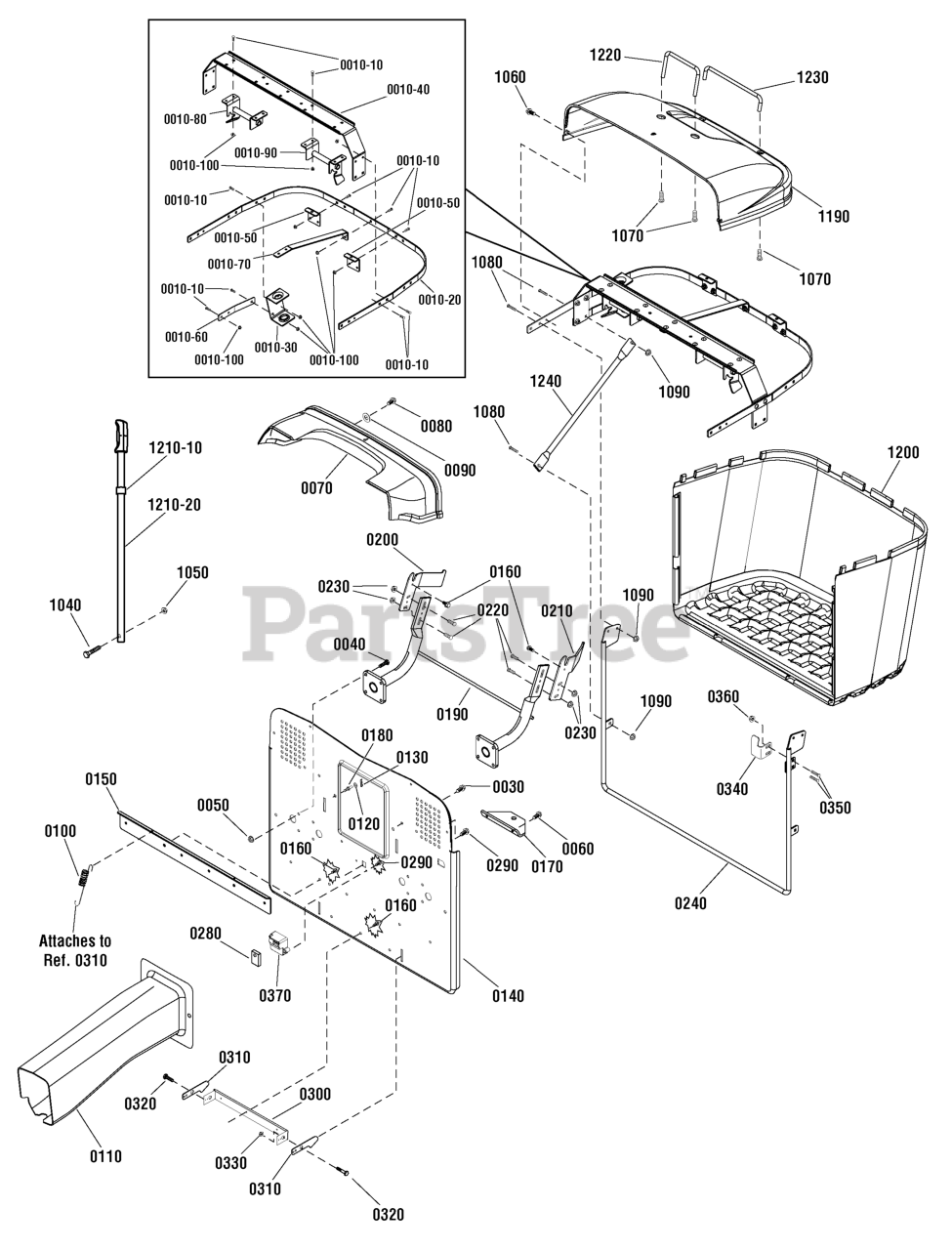

Collector Group (885453) Parts Diagram

  • Title

0010-10

Murray 002X82MA

BOLT, Carriage, 1/4-20 X 5/8
(Superseded to 703841)

$3.99

$

Usually ships in 2-12 days

0

0010-20

Murray 885413AYP

FRAME, Upper

$94.99

$

Usually ships in 2-12 days

0

0010-30

Murray 885416AYP

SUPPORT, Dump Handle

$20.99

$

Usually ships in 2-12 days

0

0010-40

Murray 885507AYP

CROSS BRACE

$68.99

$

Usually ships in 2-12 days

0

0010-50

Murray 885514AYP

BRACKET, Mounting, Long

$21.99

$

Usually ships in 2-12 days

0

0010-60

Murray 885520AYP

SUPPORT STRAP, Dump Handle

$11.99

$

Usually ships in 2-12 days

0

0010-70

Murray 885525AYP

SUPPORT, Back, Frame

$38.99

$

Usually ships in 2-12 days

0

0010-80

Murray 885561AYP

BAGGER LOCATOR ASSEMBLY, LH

$50.99

$

Usually ships in 2-12 days

0

0010-90

Murray 885562AYP

BAGGER LOCATOR ASSEMBLY, RH

$50.99

$

Usually ships in 2-12 days

0

0010-100

Murray 1930641SM

NUT, Hex Flange, 1/4-20
(Superseded to 703161)

$3.49

$

In Stock, Qty 20+

0

0030

Murray 26X249MA

CAPSCREW, 5/16-18 x 3/4

$

$

Not available

0040

Murray 1931202SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 1-1/4
(Superseded to 703167)

$3.99

$

In Stock, Qty 15

0

0050

Murray 015X79MA

NUT, Hex Flange, Serrated, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0060

Murray 1664847SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0070

Murray 885400YP

COVER, Transition

$153.99

$

Usually ships in 2-12 days

0

0080

Murray 1664847SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0090

Murray 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 18

0

0100

Murray 165X92MA

SPRING, Extension

$5.49

$

In Stock, only 3 left!

0

0110

Murray 885461YP

CHUTE

$205.99

$

Usually ships in 2-12 days

0

0120

Murray 1960170SM

WASHER, 1/2
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

0130

Murray 1960074SM

CLIP, Hair Pin
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

0140

Murray 885437AYP

BACK PLATE

$153.99

$

Usually ships in 2-12 days

0

0150

Murray 885470AYP

BRACE, Lower Back Plate

$35.99

$

Usually ships in 2-12 days

0

0160

Murray 1664847SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0170

Murray 885468AYP

PLATE, Hitch
(Superseded to 885862YP)

$12.99

$

Usually ships in 2-12 days

0

0180

Murray 094067MA

PIN, Threaded Shoulder
(Superseded to 704054)

$7.49

$

In Stock, Qty 11

0

0190

Murray 885570AYP

SUPPORT, Bagger

$87.99

$

Usually ships in 2-12 days

0

0200

Murray 885494AYP

PLATE, Rotation, RH

$26.99

$

Usually ships in 2-12 days

0

0210

Murray 885473AYP

PLATE, Rotation, LH

$26.99

$

Usually ships in 2-12 days

0

0220

Murray 1931333SM

BOLT, Carriage, Short Neck, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

0230

Murray 015X79MA

NUT, Hex Flange, Serrated, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0240

Murray 885566AYP

FRAME, Bagger

$107.99

$

Usually ships in 2-12 days

0

0280

Murray 885573YP

SWITCH, Bag Full

$37.99

$

Usually ships in 2-12 days

0

0290

Murray 880760YP

SCREW, Plastite, #10-14 x 7/8

$4.49

$

Usually ships in 2-12 days

0

0300

Murray 885497AYP

BRACKET, Bagger Latch

$31.99

$

Usually ships in 2-12 days

0

0310

Murray 885496AYP

LATCH, Bagger

$13.99

$

Usually ships in 2-12 days

0

0320

Murray 009X39MA

BOLT, Shoulder

$6.49

$

In Stock, Qty 10

0

0330

Murray 015X84MA

NUT, Hex Flange, Center Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

0340

Murray 885489AYP

PLATE, Switch

$9.99

$

Usually ships in 2-12 days

0

0350

Murray 002X82MA

BOLT, Carriage, 1/4-20 x 5/8
(Superseded to 703841)

$3.99

$

Usually ships in 2-12 days

0

0360

Murray 1930641SM

NUT, Hex Flange, Whiz Lock, 1/4-20
(Superseded to 703161)

$3.49

$

In Stock, Qty 20+

0

0370

Murray 885618YP

COVER, Bag Full Switch

$17.99

$

Usually ships in 2-12 days

0

1040

Murray 001X94MA

CAPSCREW, Hex Flange Lock, 1/4-20 x 1-1/4

$3.49

$

Usually ships in 2-12 days

0

1050

Murray 015X89MA

NUT, Hex Flange, Lock, 1/4-20

$4.49

$

Usually ships in 2-12 days

0

1060

Murray 885564YP

SCREW, Torx, 1/4-20

$3.49

$

Usually ships in 2-12 days

0

1070

Murray 7091016YP

SCREW, Hex Washer Head, Self Tap, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, only 1 left!

0

1080

Murray 002X82MA

BOLT, Carriage, 1/4-20 x 5/8
(Superseded to 703841)

$3.99

$

Usually ships in 2-12 days

0

1090

Murray 1930641SM

NUT, Hex Flange, Whiz Lock, 1/4-20
(Superseded to 703161)

$3.49

$

In Stock, Qty 20+

0

1190

Murray 885403YP

COVER, Collector
(Superseded to 1687828YP)

$512.99

$

Usually ships in 2-12 days

0

1200

Murray 885510YP

BAG, Collector

$250.99

$

Usually ships in 2-12 days

0

1210-10

Murray 885433YP

ADJUSTER, Bagger Handle

$7.49

$

Usually ships in 2-12 days

0

1210-20

Murray 885518AYP

HANDLE, Bagger

$47.99

$

Usually ships in 2-12 days

0

1220

Murray 885425AYP

HANDLE, Front

$40.99

$

Usually ships in 2-12 days

0

1230

Murray 885430AYP

HANDLE, Back

$41.99

$

Usually ships in 2-12 days

0

1240

Murray 885429AYP

STIFFENER

$23.99

$

Usually ships in 2-12 days

0
