EMT 16538 RD (2690927) - Murray 38" Rear-Discharge Lawn Tractor, 16.5hp (2011) Controls Group (885446) Parts Diagram

38" Rear-Discharge Lawn Tractor, 16.5hp

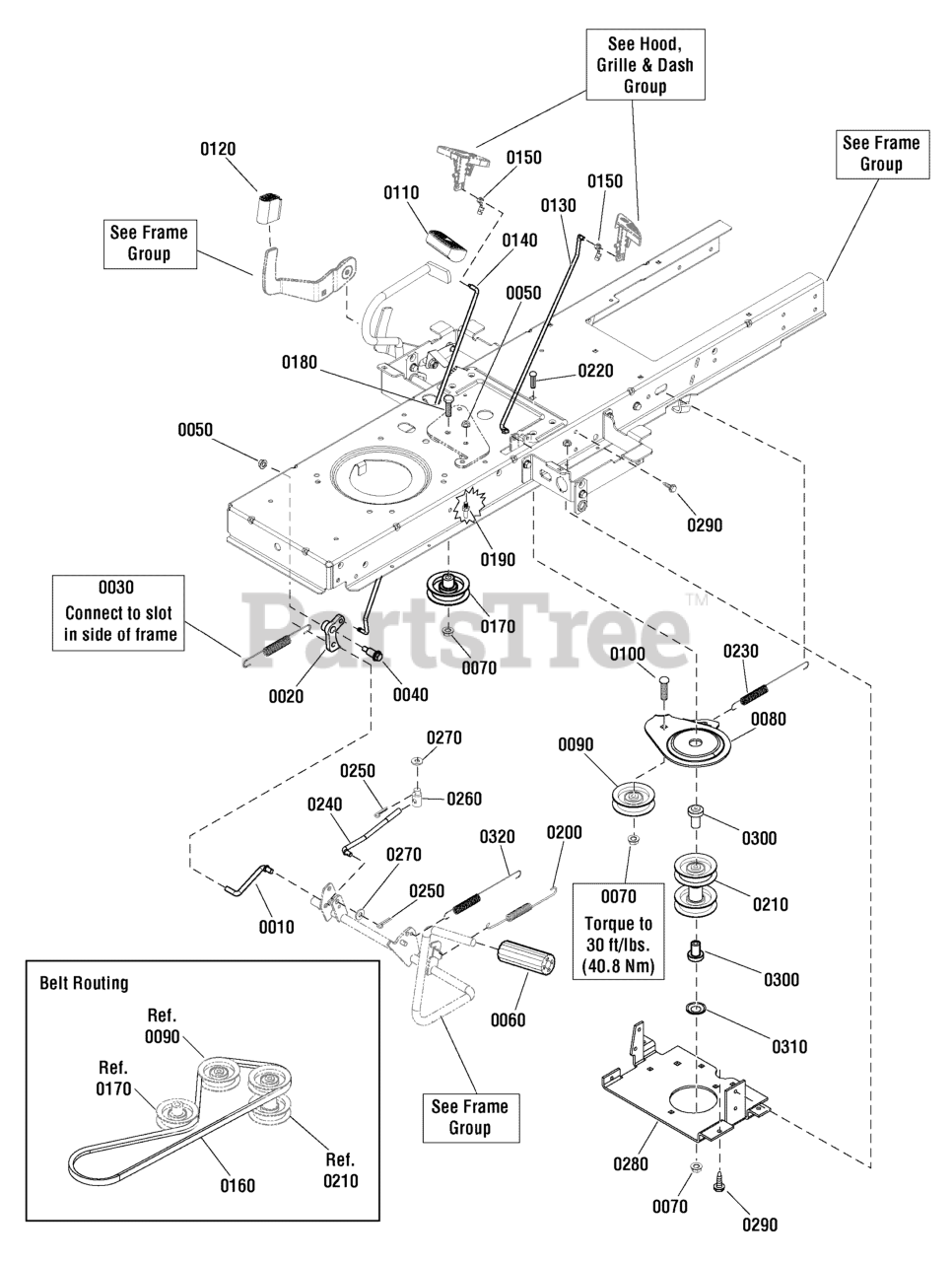

Controls Group (885446) Parts Diagram

  • Title

0010

Murray 1727899SM

ROD, Cruise Latch, 2.83"

$7.49

$

Usually ships in 2-12 days

0

0020

Murray 1727897SM

LATCH, Cruise Powdered Metal

$9.99

$

In Stock, only 1 left!

0

0030

Murray 2159181SM

SPRING, Tension, Clutch

$7.49

$

In Stock, only 2 left!

0

0040

Murray 1728976SM

BOLT, Shoulder, 5/16-18 x 1-5/8

$6.49

$

In Stock, only 2 left!

0

0050

Murray 1931277SM

NUT, Hex, Flange Whizlock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0060

Murray 1727261SM

PEDAL, Brake Rubber

$9.99

$

Usually ships in 2-12 days

0

0070

Murray 1960687SM

NUT, Hex Flange, ESNA, 3/8-16
(Superseded to 703158)

$3.49

$

In Stock, Qty 20+

0

0080

Murray 885410AYP

BRACKET, Idler Front Movable

$20.99

$

Usually ships in 2-12 days

0

0090

Murray 1728001SM

PULLEY, 3 OD Plastic

$18.99

$

In Stock, Qty 5

0

0100

Murray 1931352SM

BOLT, Carriage, Short Neck, 3/8-16 x 1-1/2

$4.49

$

In Stock, Qty 10

0

0110

Murray 1721675SM

PAD, Foot Pedal Forward

$8.99

$

Usually ships in 2-12 days

0

0120

Murray 1727259SM

PAD, Foot Pedal Reverse

$8.49

$

Usually ships in 2-12 days

0

0130

Murray 1727267SM

ROD, Parking Brake, 16-3/8"

$15.99

$

Usually ships in 2-12 days

0

0140

Murray 1738760YP

ROD, Cruise Latch, 17"

$16.99

$

In Stock, only 1 left!

0

0150

Murray 1728111SM

CLIP, Linkage, Black

$6.99

$

Usually ships in 2-12 days

0

0160

Murray 885484YP

BELT, Primary, M/D

$32.99

$

Usually ships in 2-12 days

0

0170

Murray 885565YP

IDLER, Backside

$66.99

$

Usually ships in 2-12 days

0

0180

Murray 1921971SM

CAPSCREW, Hex Head, 3/8-16 x 1-3/4, G5
(Superseded to 704289)

$4.99

$

In Stock, Qty 13

0

0190

Murray 885534YP

BELT GUIDE

$9.49

$

Usually ships in 2-12 days

0

0200

Murray 885421YP

SPRING, Extension

$14.99

$

Usually ships in 2-12 days

0

0210

Murray 885426YP

PULLEY, Secondary Stack

$92.99

$

Usually ships in 2-12 days

0

0220

Murray 885577YP

BOLT, Carriage, 3/8-16 x 5

$5.99

$

Usually ships in 2-12 days

0

0230

Murray 1729620SM

SPRING, Extension 7-1/2"

$8.49

$

In Stock, only 1 left!

0

0240

Murray 885423YP

ROD, Clutch

$13.99

$

Usually ships in 2-12 days

0

0250

Murray 7091809YP

PIN, Cotter

$4.49

$

In Stock, only 2 left!

0

0260

Murray 021920ZMA

NUT, Adjusting

$17.99

$

Usually ships in 2-12 days

0

0270

Murray 1960103SM

WASHER, 3/8"

$4.49

$

In Stock, only 2 left!

0

0280

Murray 885501AYP

IDLER, Stationary, Left Front

$46.99

$

Usually ships in 2-12 days

0

0290

Murray 1664847SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0300

Murray 885575YP

SPACER

$6.99

$

Usually ships in 2-12 days

0

0310

Murray 1931942SM

NUT, Push, 3/8
(Superseded to 703986)

$4.49

$

In Stock, Qty 12
