38" Rear-Discharge Lawn Tractor, 16.5hp

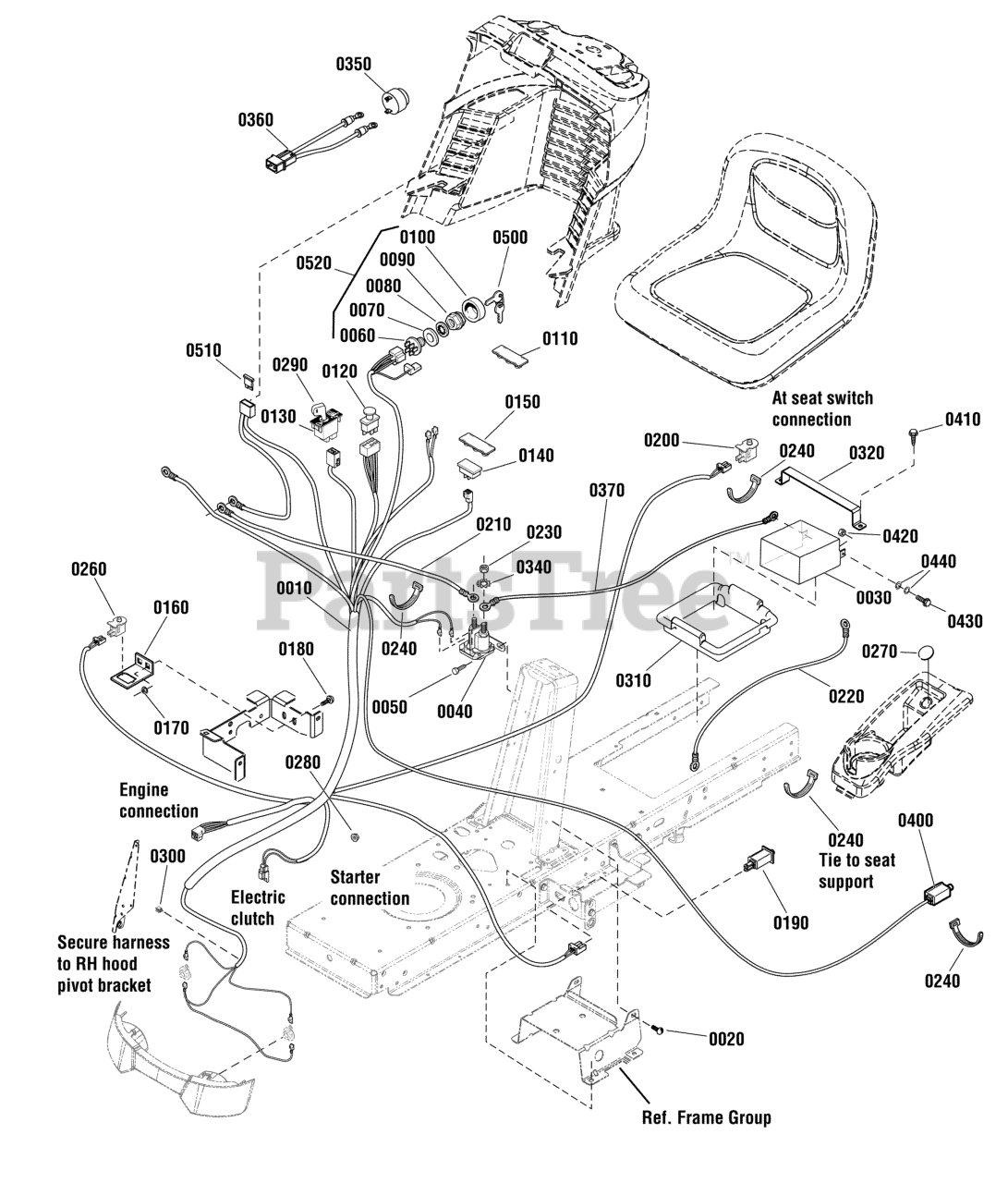

Electrical Group (885448) Parts Diagram

  • Title

0010

Murray 885537YP

WIRING HARNESS

$119.99

$

Usually ships in 2-12 days

0

0020

Murray 1930601SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 18

0

0030

BATTERY, 12 Volt

$

$

Not available

0040

Murray 1728963SM

SOLENOID
(Superseded to 1755381YP)

$24.99

$

Usually ships in 2-12 days

0

0050

Murray 1925003SM

CAPSCREW, Hex Washer Head, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

0060

Murray 1737853YP

SWITCH ASSEMBLY, Ingition

$35.99

$

Usually ships in 2-12 days

0

0070

Murray 2101025SM

WASHER, 5/8

$4.49

$

Usually ships in 2-12 days

0

0080

Murray 1960547SM

LOCKWASHER, Internal Tooth

$4.49

$

In Stock, Qty 6

0

0090

Murray 1717549SM

NUT, Hex Flange, 5/8-32
(Superseded to 847144)

$10.99

$

Usually ships in 2-12 days

0

0100

Murray 1717550SM

COVER, Switch
(Superseded to 847150)

$8.49

$

In Stock, Qty 9

0

0110

Murray 1729993SM

PLUG, Hour Meter

$4.49

$

Usually ships in 2-12 days

0

0120

Murray 1722887SM

SWITCH, PTO, Push/Pull

$33.99

$

In Stock, Qty 20+

0

0130

Murray 1726556SM

SWITCH, RMO Module Only
(Superseded to 1761897YP)

$30.99

$

Usually ships in 2-12 days

0

0140

Murray 1716951SM

SWITCH, Headlight

$21.99

$

In Stock, only 3 left!

0

0150

Murray 1722611SM

PLUG, Hole

$6.99

$

Usually ships in 2-12 days

0

0160

Murray 1728026SM

SUPPORT, RMO Switch
(Superseded to 1728026ASM)

$13.99

$

Usually ships in 2-12 days

0

0170

Murray 1931277SM

NUT, Hex Flange Whiz Lock Small, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0180

Murray 1931333SM

BOLT, Carriage, 5/16-18 x 3/4 G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

0190

Murray 7022886YP

SWITCH, Push Button (NO / NC)

$14.99

$

In Stock, Qty 20+

0

0200

Murray 7023354YP

SWITCH, Seat, Push Button (NC)

$12.99

$

Usually ships in 2-12 days

0

0210

Murray 1721830SM

CABLE-# 6 x 25, Red

$19.99

$

In Stock, only 1 left!

0

0220

Murray 1713163SM

CABLE, # 6 x 26, Black

$24.99

$

Usually ships in 2-12 days

0

0230

Murray 2860750SM

NUT, Hex, KEPS, 5/16-24

$2.99

$

Usually ships in 2-12 days

0

0240

Murray 1701011SM

TIE, Self Locking

$5.49

$

In Stock, only 2 left!

0

0260

Murray 1732004SM

SWITCH, Push Button (NO)

$8.99

$

In Stock, Qty 7

0

0270

Murray 1732007SM

PLUG, Hole

$4.49

$

Usually ships in 2-12 days

0

0280

Murray 1960294SM

NUT, Hex Flange Whiz Lock Small, 1/4-20
(Superseded to 703233)

$4.49

$

In Stock, only 2 left!

0

0290

Murray 1726557SM

KEY, RMO Module Plastic

$5.49

$

In Stock, Qty 20+

0

0300

Murray 2172434SM

CLIP, Wire

$4.99

$

In Stock, only 2 left!

0

0310

Murray 885428YP

CONTAINER, Battery

$17.99

$

Usually ships in 2-12 days

0

0320

Murray 885511AYP

HOLD DOWN, Battery

$19.99

$

Usually ships in 2-12 days

0

0340

Murray 2820426SM

LOCKWASHER, 5/16

$4.49

$

In Stock, only 1 left!

0

0350

Murray 1720117SM

BUZZER, Bag Full

$38.99

$

Usually ships in 2-12 days

0

0360

Murray 885248YP

HARNESS, Buzzer

$25.99

$

Usually ships in 2-12 days

0

0370

Murray 885616YP

CABLE, Battery

$35.99

$

Usually ships in 2-12 days

0

0400

Murray 885633YP

SWITCH ASSEMBLY

$14.99

$

Usually ships in 2-12 days

0

0410

Murray 025X15MA

CAPSCREW, Hex Washer Head, 3/8-16 x 3/4
(Superseded to 703950)

$5.49

$

In Stock, Qty 6

0

0420

Murray 51716GS

NUT, M5 x 0.8

$2.99

$

Usually ships in 2-12 days

0

0430

Murray 52618GS

SCREW, M5 x 0.8 x 12

$2.99

$

Usually ships in 2-12 days

0

0440

Murray 51713GS

WASHER, M5

$2.99

$

Usually ships in 2-12 days

0

0500

Murray 1737837YP

KEYS, Ignition

$21.99

$

Usually ships in 2-12 days

0

0510

* FUSE, 20 Amp

$

$

Not available

0520

Murray 1686734SM

SWITCH ASSEMBLY

Note: (Includes Ref Nos. 0060, 0070, 0080, 0090 & 0100)

$32.99

$

In Stock, Qty 20+
