EMT 16538 RD (2690927) - Murray 38" Rear-Discharge Lawn Tractor, 16.5hp (2011) Engine Group - 16.5 Gross HP (885438) Parts Diagram

38" Rear-Discharge Lawn Tractor, 16.5hp

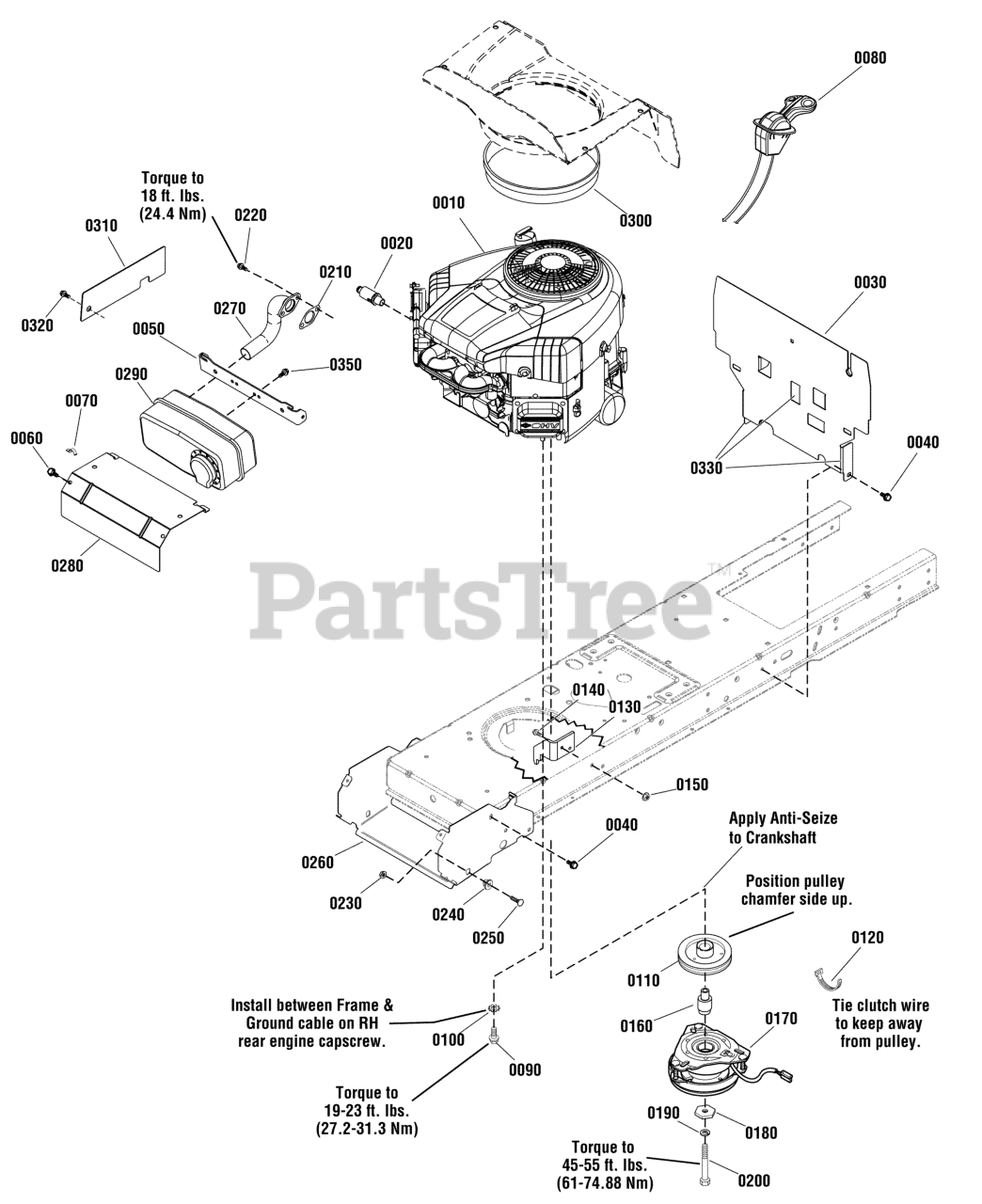

Engine Group - 16.5 Gross HP (885438) Parts Diagram

  • Title

0010

Murray 31E777-0142-B1

* ENGINE, 16.5 Gross HP Briggs & Stratton

Note: (Engine Model: 31E777-0142-B1)

$

$

Currently unavailable

0020

Murray 1750159YP

VALVE, Shut Off Oil Drain

$15.99

$

Usually ships in 2-12 days

0

0030

Murray 1728058SM

HEAT SHIELD
(Superseded to 1728058BMYP)

$19.99

$

Usually ships in 2-12 days

0

0040

Murray 1930601SM

SCREW, Hex Washer, Taptit, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 18

0

0050

Murray 1727976SM

SUPPORT, Muffler
(Superseded to 1727976BMYP)

$14.99

$

Usually ships in 2-12 days

0

0060

Murray 794844

SCREW

$4.99

$

In Stock, only 4 left!

0

0070

Murray 2834683SM

WIRE CLIP
(Superseded to 2172434SM)

$4.99

$

In Stock, only 2 left!

0

0080

Murray 885440YP

THROTTLE CONTROL, Double

$74.99

$

Usually ships in 2-12 days

0

0090

Murray 2827187SM

SCREW, Hex Washer, Taptit, 3/8-16 x 1
(Superseded to 704000)

$4.99

$

In Stock, only 4 left!

0

0100

Murray 2820427SM

LOCKWASHER, External Tooth
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

0110

Murray 1732576SM

PULLEY & HUB ASSEMBLY, Engine

$42.99

$

In Stock, only 4 left!

0

0120

Murray 1701011SM

TIE, Self Locking

$5.49

$

In Stock, only 2 left!

0

0130

Murray 885535AYP

BRACKET, Electric Clutch Torque

$29.99

$

Usually ships in 2-12 days

0

0140

Murray 1921332SM

CAPSCREW, Hex Head, 5/16-18 x 3/4, G5
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

0150

Murray 1931277SM

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0160

Murray 885427YP

SPACER, Electric Clutch

$13.99

$

Usually ships in 2-12 days

0

0170

Murray 885443YP

CLUTCH, Electric

$370.99

$

Usually ships in 2-12 days

0

0180

Murray 1708264SM

WASHER, 7/16

$8.99

$

In Stock, Qty 7

0

0190

Murray 7091301YP

LOCKWSHER, Spring
(Superseded to 704007)

$4.49

$

In Stock, Qty 7

0

0200

Murray 7102075YP

CAPSCREW, Hex Head, 7/16-20 x 5

$7.99

$

In Stock, only 1 left!

0

0210

Murray 1731214SM

GASKET, Exhaust

$4.99

$

Usually ships in 2-12 days

0

0220

Murray 690341

SCREW

$5.99

$

In Stock, only 2 left!

0

0230

Murray 1931277SM

NUT, Hex Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0240

Murray 1728086SM

PIVOT, Hood

$5.99

$

In Stock, only 1 left!

0

0250

Murray 1931335SM

BOLT, Carriage, Short Neck, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 16

0

0260

Murray 1727982SM

BRACKET, Muffler
(Superseded to 1727982ASM)

$70.99

$

Usually ships in 2-12 days

0

0270

Murray 1728959SM

EXHAUST PIPE

$34.99

$

Usually ships in 2-12 days

0

0280

Murray 1727996SM

HEAT SHIELD
(Superseded to 7300918ASM)

$48.99

$

Usually ships in 2-12 days

0

0290

Murray 885615YP

MUFFLER, Briggs & Stratton, Single

$66.99

$

Usually ships in 2-12 days

0

0300

Murray 1734166SM

EDGING, Rubber

$21.99

$

Usually ships in 2-12 days

0

0310

Murray 1736025BMYP

GUARD, Pulley

$8.49

$

Usually ships in 2-12 days

0

0320

Murray 1930601SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 18

0

0330

Murray 7070814SM

TRIM

$10.99

$

Usually ships in 2-12 days

0

0350

Murray 794844

SCREW

$4.99

$

In Stock, only 4 left!

0
