EMT 16538 RD (2690927) - Murray 38" Rear-Discharge Lawn Tractor, 16.5hp (2011) Frame Group (885449) Parts Diagram

38" Rear-Discharge Lawn Tractor, 16.5hp

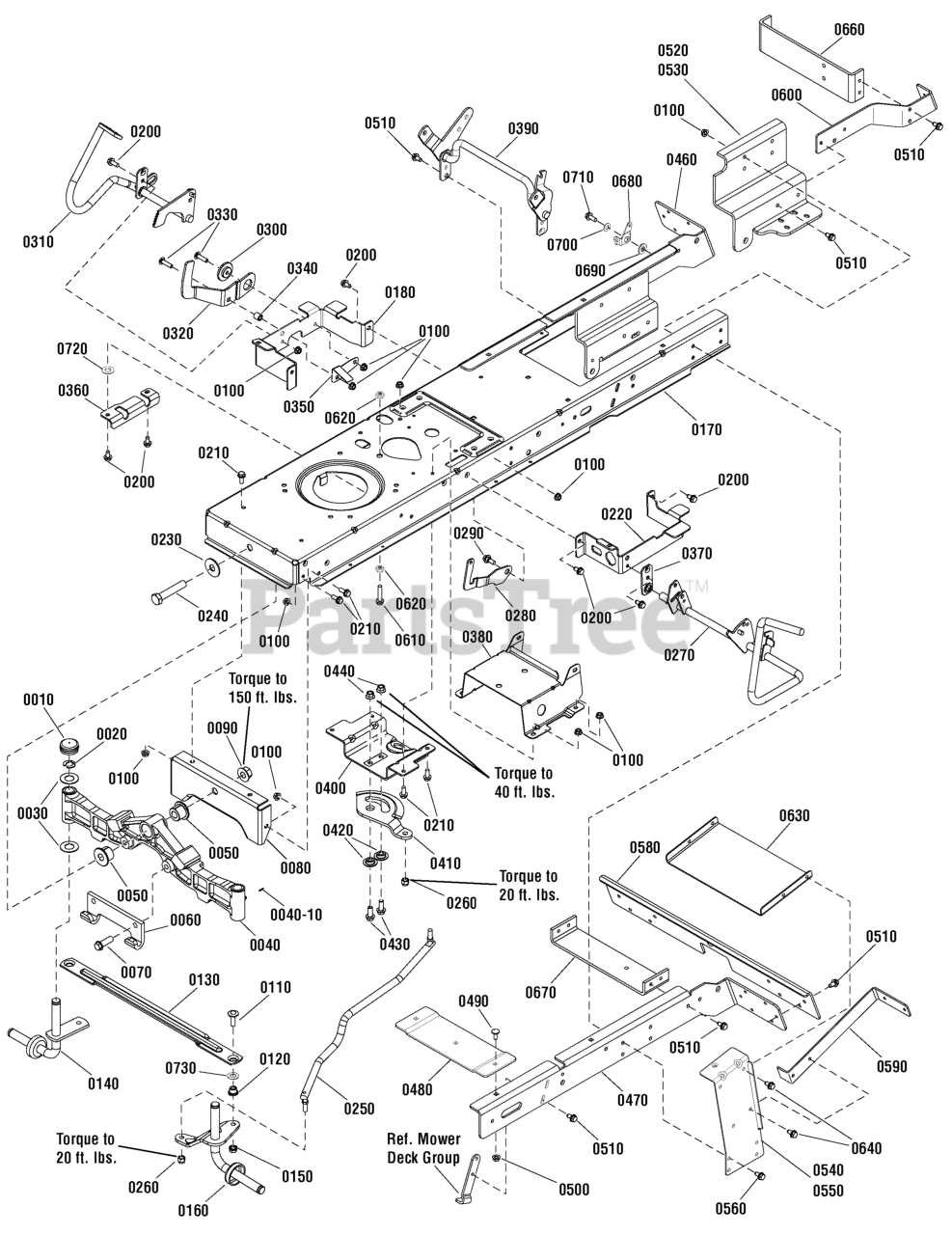

Frame Group (885449) Parts Diagram

  • Title

0010

Murray 1734135SM

CAP, Hub

$5.99

$

In Stock, Qty 14

0

0020

Murray 1611710SM

RING, Klipring Extension

$4.49

$

In Stock, Qty 16

0

0030

Murray 2860183SM

WASHER, 3/4

$4.99

$

In Stock, only 2 left!

0

0040

Murray 1728018SM

AXLE, Front
(Superseded to 1756386YP)

$185.99

$

Usually ships in 2-12 days

0

0040-10

Murray 1704314SM

FITTING, Zerk
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0050

Murray 1730186SM

BUSHING, Axle Pivot

$6.99

$

Usually ships in 2-12 days

0

0060

Murray 1721918ASM

HOOK, "J"

$31.99

$

In Stock, only 2 left!

0

0070

Murray 1960652SM

CAPSCREW, 7/16-14 x 1-1/2

$5.49

$

In Stock, only 2 left!

0

0080

Murray 1727902SM

PLATE, Axle Support

$43.99

$

Usually ships in 2-12 days

0

0090

Murray 2860646SM

NUT, Hex Flange Two-Way Lock, 5/8-11

$10.99

$

In Stock, Qty 8

0

0100

Murray 1931277SM

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0110

Murray 1960032SM

SCREW, Hex Head, 3/8-16 x 1 1/4

$5.49

$

In Stock, Qty 9

0

0120

Murray 1731912SM

BUSHING, Powdered Metal

$4.49

$

In Stock, Qty 9

0

0130

Murray 1751964YP

ROD, Tie
(Superseded to 1751964BMYP)

$32.99

$

In Stock, only 1 left!

0

0140

Murray 1727872ASM

SPINDLE & CUP ASSEMBLY, R.H.

$98.99

$

In Stock, Qty 6

0

0150

Murray 1930645SM

NUT, Hex, Flange, Locking, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

0160

Murray 1727873ASM

SPINDLE & ARM ASSEMBLY, L.H.

$101.99

$

In Stock, only 1 left!

0

0170

Murray 885414AYP

FRAME

$323.99

$

Usually ships in 2-12 days

0

0180

Murray 1727904SM

SUPPORT, Front Footrest R.H.

$18.99

$

Usually ships in 2-12 days

0

0200

Murray 1930601SM

SCREW, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 18

0

0210

Murray 1930591SM

CAPSCREW, Hex Head, Flange Whiz Lock, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 20+

0

0220

Murray 885536AYP

SUPPORT, Front Footrest L.H.

$25.99

$

Usually ships in 2-12 days

0

0230

Murray 1960035SM

WASHER, Flat, 5/8

$4.49

$

In Stock, Qty 13

0

0240

Murray 2860744SM

CAPSCREW, Hex Head, 5/8-11 x 3 1/4

$8.49

$

Usually ships in 2-12 days

0

0250

Murray 1727868SM

LINK, Drag

$

$

Not available

0260

Murray 1960747SM

NUT, Hex Nylock, 3/8-24
(Superseded to 703901)

$3.49

$

In Stock, Qty 14

0

0270

Murray 885471AYP

PEDAL ASSEMBLY, Brake

$57.99

$

Usually ships in 2-12 days

0

0280

Murray 1735595YP

LATCH, Brake Lock

$6.99

$

Usually ships in 2-12 days

0

0290

Murray 1729576SM

BOLT, Shoulder, 5/16-18 x 15/32
(Superseded to 703851)

$5.49

$

In Stock, only 1 left!

0

0300

Murray 1727935SM

SPACER, Pivot

$5.99

$

In Stock, only 4 left!

0

0310

Murray 1736714AYP

PEDAL ASSEMBLY, Forward

$89.99

$

Usually ships in 2-12 days

0

0320

Murray 1727246SM

PEDAL, Reverse

$20.99

$

Usually ships in 2-12 days

0

0330

Murray 1960223SM

BOLT, Carriage, 5/16-18 x 1 1/4
(Superseded to 703446)

$4.49

$

In Stock, only 1 left!

0

0340

Murray 1728024SM

SPACER, Foot Pedal

$4.99

$

Usually ships in 2-12 days

0

0350

Murray 1728025BMYP

ACTUATOR, RMO Switch

$6.49

$

Usually ships in 2-12 days

0

0360

Murray 885591AYP

BRACKET, Pedal Pivot
(Superseded to 885591YP)

$22.99

$

Usually ships in 2-12 days

0

0370

Murray 1727911ASM

PLATE, Bearing

$12.99

$

Usually ships in 2-12 days

0

0380

Murray 1727282SM

SUPPORT, Battery

$30.99

$

Usually ships in 2-12 days

0

0390

Murray 885579AYP

LIFT SHAFT ASSEMBLY
(Superseded to 1758772YP)

$125.99

$

Usually ships in 2-12 days

0

0400

Murray 1727940SM

BRACKET, Sector Support

$

$

Not available

0410

Murray 1728027SM

GEAR, Steering
(Superseded to 1751110YP)

$34.99

$

In Stock, Qty 13

0

0420

Murray 1728122SM

SPACER, Sector Gear

$5.49

$

In Stock, Qty 20+

0

0430

Murray 1934654SM

SCREW, Hex Flange, Whiz Lock, 3/8-16 x 1
(Superseded to 704038)

$5.99

$

In Stock, Qty 17

0

0440

Murray 1930645SM

NUT, Hex Flange, Two Way Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

0460

Murray 885508AYP

BRACKET, Rear Frame, RH

$131.99

$

Usually ships in 2-12 days

0

0470

Murray 885509AYP

BRACKET, Rear Frame, LH

$131.99

$

Usually ships in 2-12 days

0

0480

Murray 885532AYP

BRACE, Middle Cross

$33.99

$

Usually ships in 2-12 days

0

0490

Murray 1931333SM

BOLT, Carriage, Short Neck, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

0500

Murray 1931277SM

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0510

Murray 1664847SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0520

Murray 885474AYP

BRACKET, Transaxle, RH

$67.99

$

Usually ships in 2-12 days

0

0530

Murray 885475AYP

BRACKET, Transaxle, LH

$101.99

$

Usually ships in 2-12 days

0

0540

Murray 885411AYP

SUPPORT, Deck, RH

$46.99

$

Usually ships in 2-12 days

0

0550

Murray 885412AYP

SUPPORT, Deck, LH

$46.99

$

Usually ships in 2-12 days

0

0560

Murray 1921333SM

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, only 3 left!

0

0580

Murray 885469AYP

BRACKET, Middle Back Plate

$42.99

$

Usually ships in 2-12 days

0

0590

Murray 885466AYP

SUPPORT, Upper, Back Plate

$20.99

$

Usually ships in 2-12 days

0

0600

Murray 885467AYP

SUPPORT, Lower, Back Plate

$27.99

$

Usually ships in 2-12 days

0

0610

Murray 7091822YP

BOLT, 1/2-13 x 5
(Superseded to 703886)

$6.49

$

In Stock, Qty 12

0

0620

Murray 5025038SM

NUT, Hex, 1/2-13

$

$

Not available

0630

Murray 885503AYP

BRACE, Cross Deck Support

$26.99

$

Usually ships in 2-12 days

0

0640

Murray 1664847SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0660

Murray 885441AYP

BRACKET, Torque

$33.99

$

Usually ships in 2-12 days

0

0670

Murray 885486AYP

BRACKET, Idler Mount

$17.99

$

Usually ships in 2-12 days

0

0680

Murray 1728990ASM

CLEVIS, Lift

$11.99

$

Usually ships in 2-12 days

0

0690

Murray 1727935SM

SPACER, Pivot

$5.99

$

In Stock, only 4 left!

0

0700

Murray 1960044SM

WASHER, 5/16

$4.49

$

In Stock, Qty 12

0

0710

Murray 1921333SM

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, only 3 left!

0

0720

Murray 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 18

0

0730

Murray 1960703SM

WASHER, 5/8

$4.49

$

In Stock, only 2 left!

0
