EMT 16538 RD (2690927) - Murray 38" Rear-Discharge Lawn Tractor, 16.5hp (2011) Transmission Group (885445) Parts Diagram

38" Rear-Discharge Lawn Tractor, 16.5hp

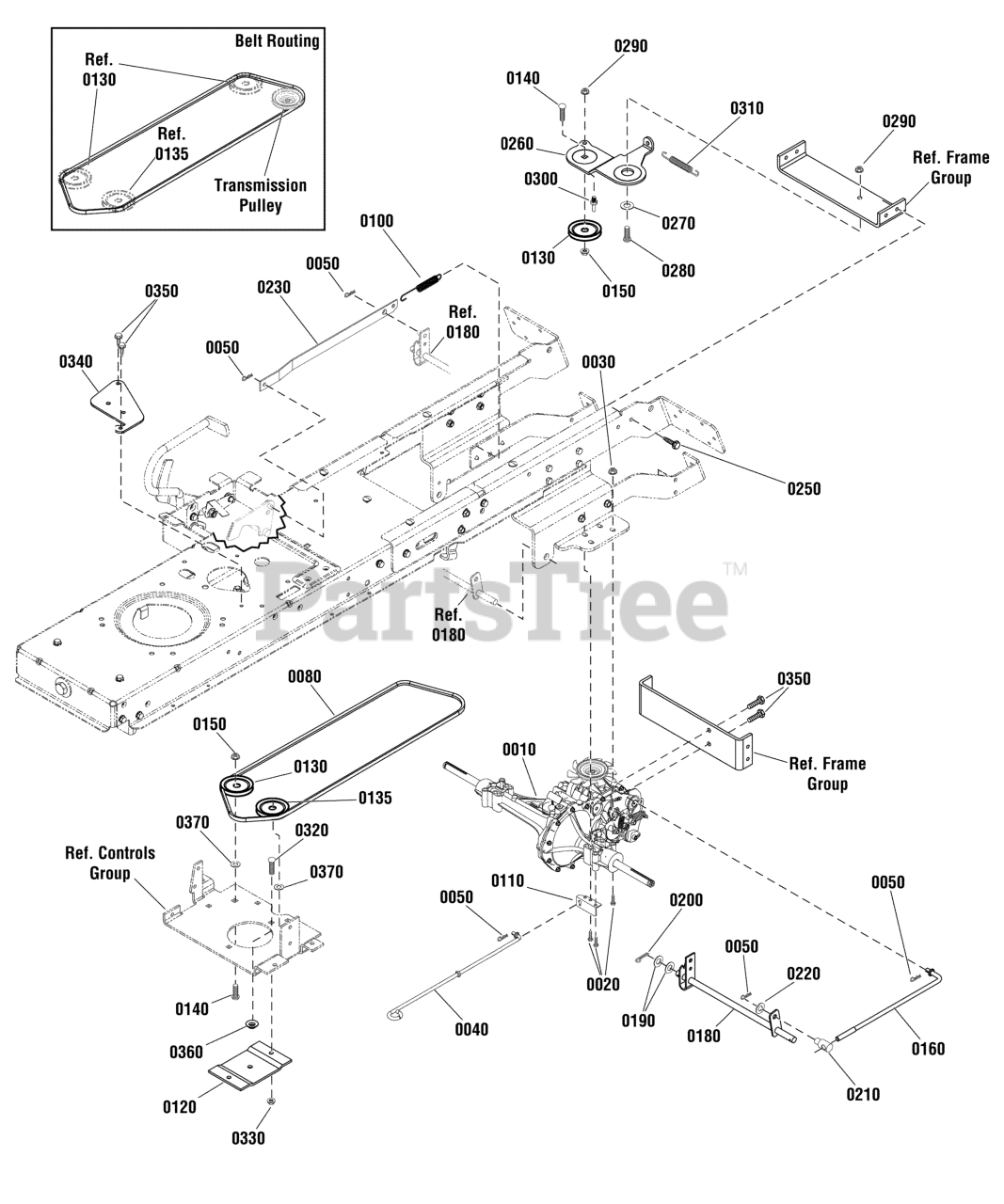

Transmission Group (885445) Parts Diagram

  • Title

0010

Murray 885528YP

* TRANSMISSION, Hydro Gear 610

$1424.99

$

Usually ships in 2-12 days

0

0020

Murray 1923141SM

SCREW, Hex Head Flange Lock, 5/16-18 x 2-3/4, G5
(Superseded to 703869)

$6.49

$

Usually ships in 2-12 days

0

0030

Murray 1931277SM

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0040

Murray 885436YP

LEVER, Roll Release

$20.99

$

Usually ships in 2-12 days

0

0050

Murray 1722460SM

PIN, Quick
(Superseded to 703430)

$3.49

$

In Stock, Qty 8

0

0080

Murray 885495YP

BELT, Secondary

$38.99

$

Usually ships in 2-12 days

0

0100

Murray 165X92MA

SPRING, Extension

$5.49

$

In Stock, only 3 left!

0

0110

Murray 7300701ZYP

BRACKET, Roll Release

$6.99

$

Usually ships in 2-12 days

0

0120

Murray 885502AYP

BRACKET, Front Idler

$20.99

$

Usually ships in 2-12 days

0

0130

Murray 1728001SM

PULLEY

$18.99

$

In Stock, Qty 6

0

0135

Murray 885645YP

PULLEY, Idler, Steel
(Superseded to 1760012YP)

$33.99

$

Usually ships in 2-12 days

0

0140

Murray 1931352SM

BOLT, Carriage, Short Neck, 3/8-16 x 1-1/2

$4.49

$

In Stock, Qty 9

0

0150

Murray 015X84MA

NUT, Hex Flange, Centerlock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

0160

Murray 885476YP

SPEED CONTROL, Short Link

$21.99

$

Usually ships in 2-12 days

0

0180

Murray 885477AYP

SPEED CONTROL ASSEMBLY

$37.99

$

Usually ships in 2-12 days

0

0190

Murray 017X91MA

WASHER, Flat, 13/16

$5.49

$

Usually ships in 2-12 days

0

0200

Murray 1960074SM

PIN, Cotter
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

0210

Murray 021920ZMA

NUT, Adjusting

$17.99

$

Usually ships in 2-12 days

0

0220

Murray 017X53MA

WASHER, Flat, .41
(Superseded to 703590)

$3.99

$

In Stock, Qty 16

0

0230

Murray 885480AYP

LINK, Speed Control

$60.99

$

Usually ships in 2-12 days

0

0260

Murray 885409AYP

BRACKET, Idler, Rear

$20.99

$

Usually ships in 2-12 days

0

0270

Murray 1727935SM

SPACER, Pivot

$5.99

$

In Stock, only 4 left!

0

0280

Murray 1931335SM

BOLT, Carriage, Short Neck, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 16

0

0290

Murray 1931277SM

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0300

Murray 885077YP

BELT GUIDE

$5.99

$

Usually ships in 2-12 days

0

0310

Murray 1731939SM

SPRING, Extension

$9.99

$

Usually ships in 2-12 days

0

0320

Murray 1931332SM

BOLT, Carriage, Short Neck, 5/16-18 x 5/8, G5
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

0330

Murray 1931277SM

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0340

Murray 885590AYP

PLATE, Front Fixed Idler

$14.99

$

Usually ships in 2-12 days

0

0350

Murray 1664847SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0360

Murray 5025498YP

NUT, Push On, 5/16

$2.99

$

Usually ships in 2-12 days

0

0370

Murray 710083MA

WASHER, Flat, 3/8

$7.49

$

In Stock, only 2 left!

0
