EMT 1838 RDF (1696110-00) - Murray 96cm Rear-Discharge Lawn Tractor, 18hp (2012) Electrical Group (885690) Parts Diagram

96cm Rear-Discharge Lawn Tractor, 18hp

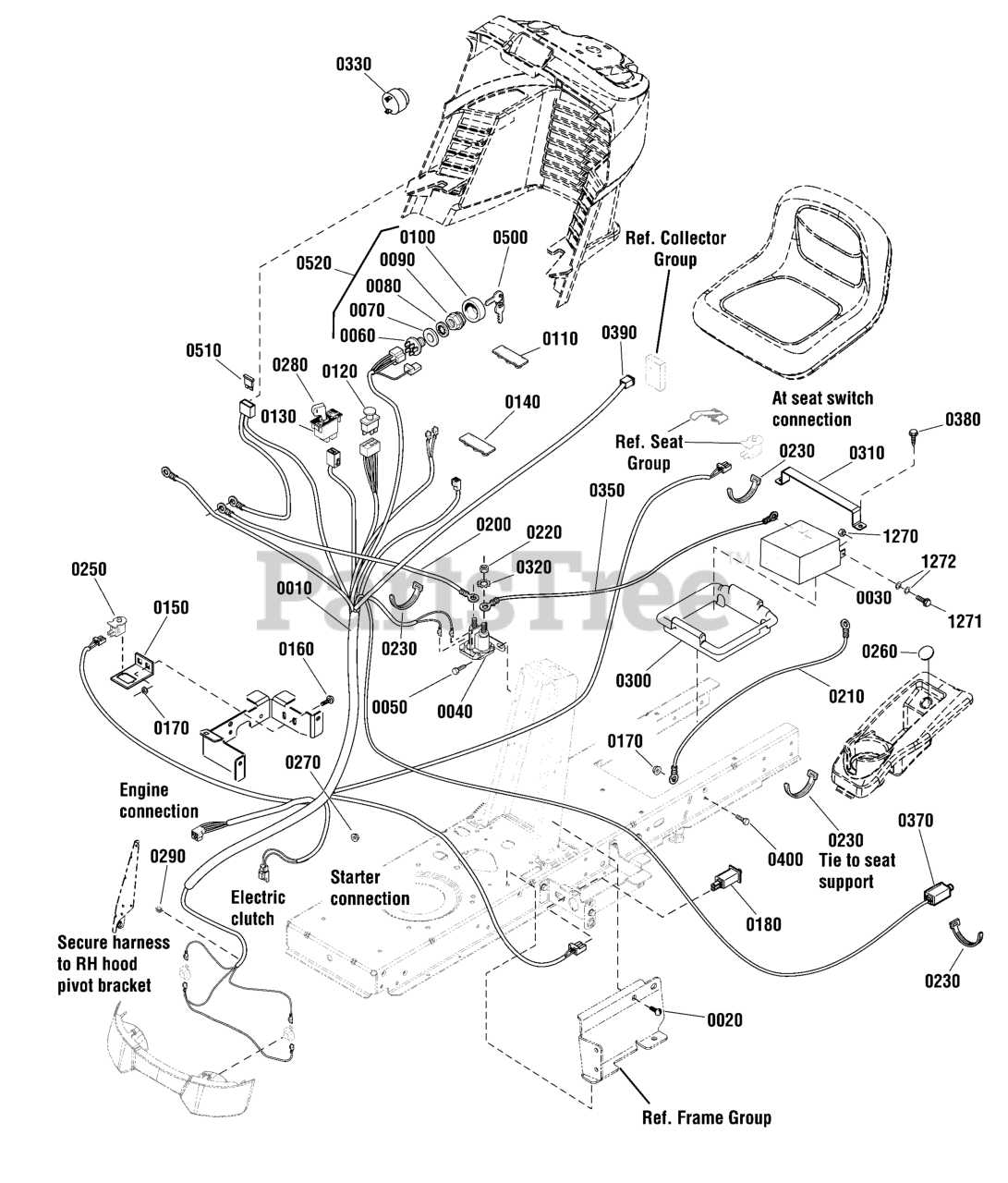

Electrical Group (885690) Parts Diagram

  • Title

0010

Murray 885691

WIRING HARNESS
(Superseded to 885691YP)

$187.99

$

Usually ships in 2-12 days

0

0020

Murray 1930601

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 16

0

0030

BATTERY, 12 Volt

$

$

Not available

0040

Murray 1728963

SOLENOID
(Superseded to 1755381YP)

$24.99

$

In Stock, Qty 20+

0

0050

Murray 1925003

CAPSCREW, Hex Washer Head, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

0060

Murray 721108

SWITCH ASSEMBLY, Ingition
(Superseded to 092556MA)

$28.99

$

In Stock, only 3 left!

0

0070

Murray 2101025

WASHER, 5/8
(Superseded to 2101025SM)

$4.49

$

Usually ships in 2-12 days

0

0080

Murray 1960547

LOCKWASHER, Internal Tooth
(Superseded to 1960547SM)

$4.49

$

In Stock, Qty 8

0

0090

Murray 1717549

NUT, Hex Flange, 5/8-32
(Superseded to 1717549SM)

$10.99

$

Usually ships in 2-12 days

0

0100

Murray 1717550

COVER, Switch
(Superseded to 1717550SM)

$8.99

$

In Stock, Qty 8

0

0110

Murray 1729993

PLUG, Hour Meter
(Superseded to 1729993SM)

$4.49

$

Usually ships in 2-12 days

0

0120

Murray 1722887

SWITCH, PTO Push
(Superseded to 1722887SM)

$35.99

$

In Stock, Qty 20+

0

0130

Murray 1726556

SWITCH, RMO Module Only
(Superseded to 1726556SM)

$

$

Not available

0140

Murray 1722611

PLUG, Hole
(Superseded to 1722611SM)

$6.99

$

Usually ships in 2-12 days

0

0150

Murray 1728026A

SUPPORT, RMO Switch
(Superseded to 1728026ASM)

$13.99

$

Usually ships in 2-12 days

0

0160

Murray 1931333

BOLT, Carriage, 5/16-18 x 3/4 G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

0170

Murray 1931277

NUT, Hex Flange Whiz Lock Small, 5/16-18
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

0180

Murray 7022886

SWITCH, Push Button (NO / NC)
(Superseded to 7022886YP)

$15.99

$

In Stock, Qty 20+

0

0200

Murray 1721830

CABLE, # 6 x 25, Red
(Superseded to 1721830SM)

$20.99

$

Usually ships in 2-12 days

0

0210

Murray 1713163

CABLE, # 6 x 26, Black
(Superseded to 1713163SM)

$26.99

$

In Stock, only 1 left!

0

0220

Murray 2860750

NUT, Hex, KEPS, 5/16-24
(Superseded to 2860750SM)

$2.99

$

Usually ships in 2-12 days

0

0230

Murray 1701011

TIE, Self Locking
(Superseded to 1701011SM)

$5.49

$

In Stock, only 2 left!

0

0250

Murray 1732004

SWITCH, Push Button, NO, Black
(Superseded to 1732004SM)

$9.49

$

In Stock, Qty 9

0

0260

Murray 1732007

PLUG, Hole
(Superseded to 1732007SM)

$4.99

$

Usually ships in 2-12 days

0

0270

Murray 1960294

NUT, Hex Flange Whiz Lock Small, 1/4-20
(Superseded to 703233)

$4.49

$

In Stock, Qty 11

0

0280

Murray 1726557

KEY, RMO Module Plastic
(Superseded to 1726557SM)

$5.49

$

Usually ships in 2-12 days

0

0290

Murray 2172434

CLIP, Wire
(Superseded to 2172434SM)

$4.99

$

Usually ships in 2-12 days

0

0300

Murray 885428

CONTAINER, Battery
(Superseded to 885428YP)

$17.99

$

Usually ships in 2-12 days

0

0310

Murray 885511BM

HOLD DOWN, Battery
(Superseded to 885511AYP)

$20.99

$

Usually ships in 2-12 days

0

0320

Murray 2820426

LOCKWASHER, 5/16
(Superseded to 2820426SM)

$4.49

$

Usually ships in 2-12 days

0

0330

Murray 1720117

BUZZER, Bag Full
(Superseded to 1720117SM)

$41.99

$

Usually ships in 2-12 days

0

0350

Murray 885616

CABLE, Battery
(Superseded to 885616YP)

$38.99

$

Usually ships in 2-12 days

0

0370

Murray 727831

SWITCH, Bagger
(Superseded to 1001845MA)

$17.99

$

Usually ships in 2-12 days

0

0380

Murray 1664847SM

SCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0390

Murray 885692

HARNESS, Bag Full
(Superseded to 885692YP)

$11.99

$

Usually ships in 2-12 days

0

0400

Murray 7091811

CAPSCREW, Hex Flange, 5/16-18 x 5/8, G5
(Superseded to 7091811SM)

$3.99

$

Usually ships in 2-12 days

0

0500

Murray 1737837

KEYS, Ignition
(Superseded to 1737837YP)

$22.99

$

In Stock, only 2 left!

0

0510

* FUSE, 20 Amp

$

$

Not available

0520

Murray 1686734

SWITCH ASSEMBLY
(Superseded to 1686734SM)

Note: (Includes Ref Nos. 0060, 0070, 0080, 0090 & 0100)

$34.99

$

In Stock, Qty 20+

0

1270

Murray 51716

NUT, M5 x 0.8
(Superseded to 51716GS)

$2.99

$

Usually ships in 2-12 days

0

1271

Murray 52618

SCREW, M5 x 0.8 x 12
(Superseded to 52618GS)

$3.49

$

Usually ships in 2-12 days

0

1272

Murray 51713

WASHER, M5
(Superseded to 51713GS)

$3.49

$

Usually ships in 2-12 days

0
