96cm Rear-Discharge Lawn Tractor, 18hp

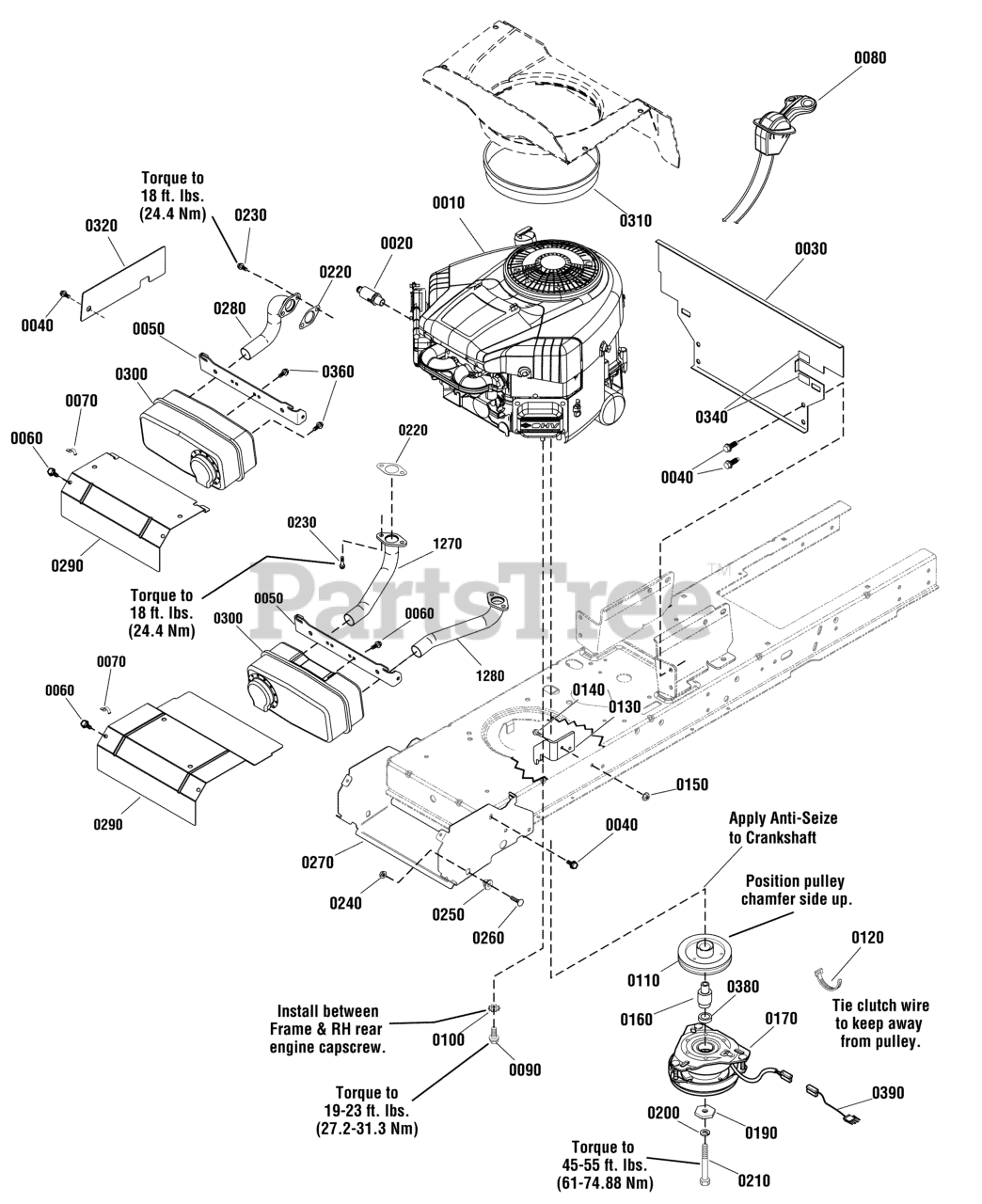

Engine Group - 17.5 Gross HP & 18 Gross HP (885676_885737) Parts Diagram

  • Title

0010

Murray 31G777-0194-B1

* ENGINE, 17.5 Gross HP Briggs & Stratton

Note: (Engine Model: 31G777-0194-B1)

$

$

Not available

0010

Murray 31G777-0204-B1

* ENGINE, 17.5 Gross HP Briggs & Stratton

Note: (Engine Model: 31G777-0204-B1)

$

$

Not available

0010

Murray 405577-0116-B1

* ENGINE, 18 Gross HP Briggs & Stratton

Note: (Engine Model: 405577-0116-B1)

$

$

Not available

0020

Murray 1750159YP

VALVE, Shut Off Oil Drain

$15.99

$

Usually ships in 2-12 days

0

0030

Murray 885677BMYP

HEAT SHIELD

$31.99

$

Usually ships in 2-12 days

0

0040

Murray 1930601SM

SCREW, Hex Washer Head, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 18

0

0050

Murray 1727976SM

SUPPORT, Muffler
(Superseded to 1727976BMYP)

$14.99

$

Usually ships in 2-12 days

0

0060

Murray 1925003SM

SCREW, Hex Washer Head, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

Note: (Qty 4 used on 18 Gross HP Models)

$3.99

$

In Stock, Qty 20+

0

0070

Murray 2834683SM

WIRE CLIP
(Superseded to 2172434SM)

$4.99

$

In Stock, only 2 left!

0

0080

Murray 1751734YP

THROTTLE CONTROL, Choke-A-Matic

Note: (Used on 17.5 Gross HP Models)

$59.99

$

In Stock, only 1 left!

0

0080

Murray 1727817SM

THROTTLE CONTROL, Double

Note: (Used on 18 Gross HP Models)

$115.99

$

Usually ships in 2-12 days

0

0090

Murray 2827187SM

SCREW, Hex Washer, Taptite, 3/8-16 x 1
(Superseded to 704000)

$4.99

$

In Stock, only 4 left!

0

0100

Murray 2820427SM

LOCKWASHER, External Tooth
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

0110

Murray 1732576SM

PULLEY & HUB ASSEMBLY, Engine

$42.99

$

In Stock, only 4 left!

0

0120

Murray 1701011SM

TIE, Self Locking

$5.49

$

In Stock, only 2 left!

0

0130

Murray 885535AYP

BRACKET, Electric Clutch Torque

$29.99

$

Usually ships in 2-12 days

0

0140

Murray 1921332SM

CAPSCREW, Hex Head, 5/16-18 x 3/4, G5
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

0150

Murray 1931277SM

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0160

Murray 885679YP

SPACER, Electric Clutch

$13.99

$

Usually ships in 2-12 days

0

0170

Murray 885443YP

CLUTCH, Electric

Note: (Used before Serial No. 2015765318)

$370.99

$

Usually ships in 2-12 days

0

0170

Murray 885680YP

CLUTCH, Electric

Note: (Used after Serial No. 2015765319)

$307.99

$

Usually ships in 2-12 days

0

0190

Murray 1708264SM

WASHER, 7/16

$8.99

$

In Stock, Qty 7

0

0200

Murray 1918199SM

LOCKWSHER, Spring
(Superseded to 704007)

$4.49

$

In Stock, Qty 7

0

0210

Murray 7102075YP

CAPSCREW, Hex Head, 7/16-20 x 5

$7.99

$

In Stock, only 1 left!

0

0220

Murray 1731214SM

GASKET, Exhaust

Note: (Qty 2 used on 18 Gross HP Models)

$4.99

$

Usually ships in 2-12 days

0

0230

Murray 690341

SCREW

Note: (Qty 4 used on 18 Gross HP Models)

$5.99

$

In Stock, only 2 left!

0

0240

Murray 1931277SM

NUT, Hex Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0250

Murray 1728086SM

PIVOT, Hood

$5.99

$

In Stock, only 1 left!

0

0260

Murray 1931335SM

BOLT, Carriage, Short Neck, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 16

0

0270

Murray 1727982ASM

BRACKET, Muffler

$70.99

$

Usually ships in 2-12 days

0

0280

Murray 1728959SM

EXHAUST PIPE, Single

Note: (Used on 17.5 Gross HP Models)

$34.99

$

Usually ships in 2-12 days

0

0290

Murray 1727996ASM

HEAT SHIELD, Single
(Superseded to 7300918ASM)

Note: (Used on 17.5 Gross HP Models)

$48.99

$

Usually ships in 2-12 days

0

0290

Murray 1727997ASM

HEAT SHIELD, Twin

Note: (Used on 18 Gross HP Models)

$33.99

$

Usually ships in 2-12 days

0

0300

Murray 885615YP

MUFFLER, Single

Note: (Used on 17.5 Gross HP Models)

$66.99

$

Usually ships in 2-12 days

0

0300

Murray 1727994SM

MUFFLER, Twin

Note: (Used on 18 Gross HP Models)

$98.99

$

Usually ships in 2-12 days

0

0310

Murray 1734166SM

EDGING, Rubber, Single

Note: (Used on 17.5 Gross HP Models)

$21.99

$

Usually ships in 2-12 days

0

0310

Murray 1731970SM

EDGING, Rubber, Twin

Note: (Used on 18 Gross HP Models)

$13.99

$

In Stock, only 1 left!

0

0320

Murray 1736025BMYP

GUARD, Pulley

$8.49

$

Usually ships in 2-12 days

0

0340

Murray 7070814SM

TRIM

$10.99

$

Usually ships in 2-12 days

0

0360

Murray 1930601SM

SCREW, Hex Washer Head, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 18

0

0380

Murray 885810YP

SPACER, Lower

Note: (Used before Serial No. 2015765318)

$4.49

$

Usually ships in 2-12 days

0

0380

Murray 885427YP

SPACER, Electric Clutch

Note: (Used after Serial No. 2015765319)

$13.99

$

Usually ships in 2-12 days

0

0390

Murray 885815YP

HARNESS, Ogura

Note: (Used after Serial No. 2015765319)

$11.99

$

Usually ships in 2-12 days

0

1270

Murray 1727979SM

EXHAUST PIPE, RH

Note: (Used on 18 Gross HP Models)

$37.99

$

In Stock, only 1 left!

0

1280

Murray 1727980SM

EXHAUST PIPE, LH

Note: (Used on 18 Gross HP Models)

$37.99

$

In Stock, only 1 left!

0
