EMT 1838 RDF (1696110-00) - Murray 96cm Rear-Discharge Lawn Tractor, 18hp (2012) Hood, Grille & Dash Group (885775) Parts Diagram

96cm Rear-Discharge Lawn Tractor, 18hp

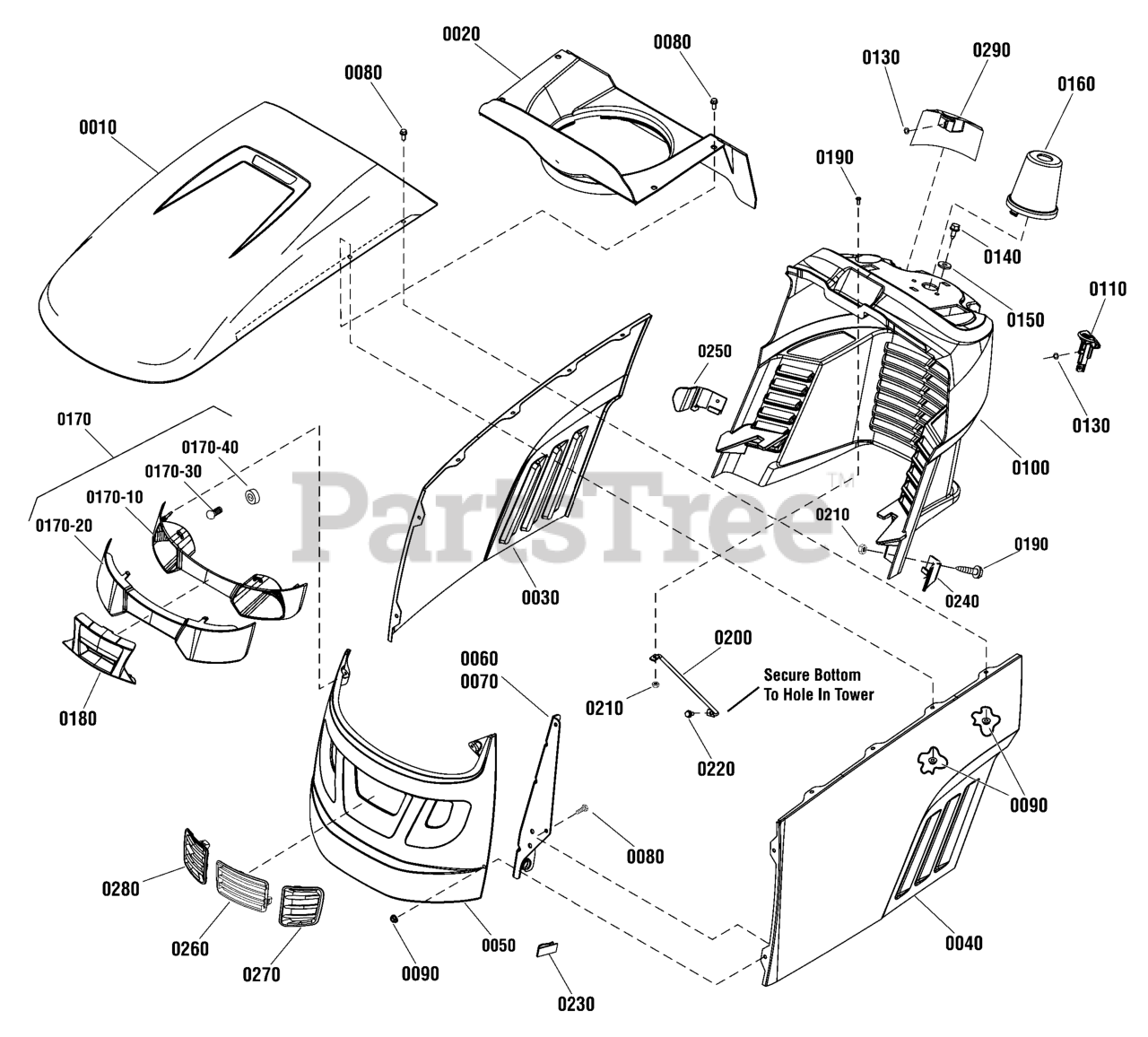

Hood, Grille & Dash Group (885775) Parts Diagram

  • Title

0010

Murray 1728031BIYP

HOOD, With Scoop

$290.99

$

Usually ships in 2-12 days

0

0020

Murray 7102326YP

AIR DUCT, Plenum

$131.99

$

In Stock, only 1 left!

0

0030

Murray 1727294BIYP

PANEL, Side, R.H.

$132.99

$

Usually ships in 2-12 days

0

0040

Murray 1727295BIYP

PANEL, Side, L.H.

$132.99

$

Usually ships in 2-12 days

0

0050

Murray 1738914BIYP

GRILLE

$

$

Not available

0060

Murray 1727279ASM

HINGE, Hood, L.H.
(Superseded to 1727279BMYP)

$22.99

$

Usually ships in 2-12 days

0

0070

Murray 1727280ASM

HINGE, Hood, R.H.

$21.99

$

Usually ships in 2-12 days

0

0080

Murray 1960295SM

CAPSCREW, Hex Flange Whiz Lock, 1/4-20 x 5/8

$4.49

$

In Stock, only 2 left!

0

0090

Murray 1930641SM

NUT, Hex Flange Whiz Lock Large, 1/4-20
(Superseded to 703161)

$3.49

$

In Stock, Qty 18

0

0100

Murray 885571YP

CONSOLE

$338.99

$

Usually ships in 2-12 days

0

0110

Murray 1728089SM

KNOB, Brake Lock, Red

$7.99

$

In Stock, only 3 left!

0

0130

Murray 1960518SM

PUSHNUT, 1/4
(Superseded to 703826)

$3.49

$

In Stock, Qty 16

0

0140

Murray 1664847SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0150

Murray 1919381SM

WASHER, 5/16
(Superseded to 703298)

$4.49

$

In Stock, Qty 15

0

0160

Murray 1739106YP

COVER

$42.99

$

Usually ships in 2-12 days

0

0170

Murray 1727296SM

HEADLIGHT ASSEMBLY

$252.99

$

In Stock, Qty 6

0

0170-10

Murray 1728973SM

REFLECTOR
(Superseded to 1727296SM)

$252.99

$

In Stock, Qty 6

0

0170-20

Murray 1728974SM

LENS, Headlight
(Superseded to 1727296SM)

$252.99

$

In Stock, Qty 6

0

0170-30

Murray 1677371SM

BULB, Headlight, 1141-12V 21CP

$32.99

$

Usually ships in 2-12 days

0

0170-40

Murray 1723451SM

SOCKET

$29.99

$

Usually ships in 2-12 days

0

0180

Murray 1728975SM

INSERT, Lightbar

$13.99

$

Usually ships in 2-12 days

0

0190

Murray 1960392SM

SCREW, Pan Head Phillips, #10-24 x 1

$3.99

$

Usually ships in 2-12 days

0

0200

Murray 885435AYP

ROD, Bagger Support

$18.99

$

Usually ships in 2-12 days

0

0210

Murray 1933896SM

NUT, Nylock, 10-24
(Superseded to 703412)

$4.49

$

In Stock, Qty 5

0

0220

Murray 1925003SM

CAPSCREW, Hex Washer Head, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 17

0

0230

Murray 028X83MA

CLIP

$3.99

$

In Stock, only 2 left!

0

0240

Murray 1732030SM

GUIDE, Hood, LH

$

$

Not available

0250

Murray 1732031SM

GUIDE, Hood, RH

$7.99

$

In Stock, Qty 7

0

0260

Murray 1741762MA

INSERT, Grille, Center

$44.99

$

Usually ships in 2-12 days

0

0270

Murray 1741763MA

INSERT, Grille, LH

$17.99

$

Usually ships in 2-12 days

0

0280

Murray 1741764MA

INSERT, Grille, RH

$16.99

$

Usually ships in 2-12 days

0

0290

Murray 885753YP

PLUG, Cruise Control

$6.99

$

Usually ships in 2-12 days

0
