EN2500 A (EZFS) - Honda Generator, Made in Japan (SN: EZFS-1000001 - EZFS-1099999) GENERATOR Parts Diagram

Generator, Made in Japan

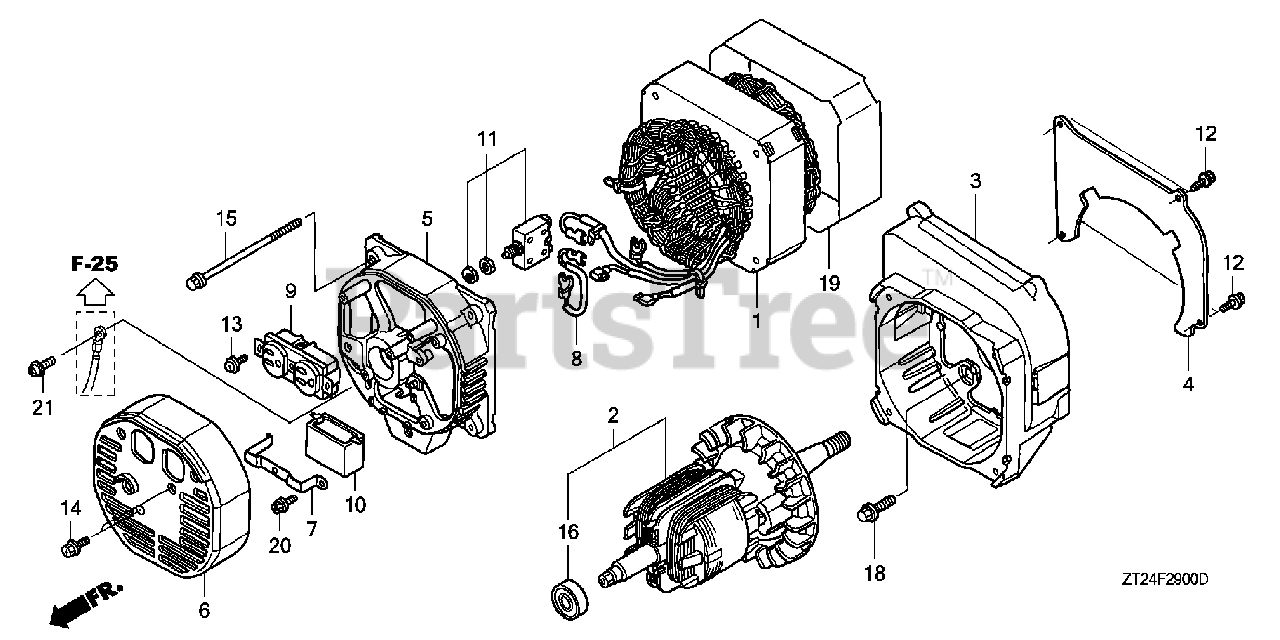

GENERATOR Parts Diagram

  • Title

1

Honda 31120-ZT6-003

STATOR ASSY.

$567.99

$

Usually ships in 3-6 days

0

2

Honda 31130-ZT6-003

ROTOR

$

$

Not available

3

Honda 31161-ZT2-003

HOUSING, FR.

$153.99

$

Usually ships in 3-6 days

0

4

Honda 31167-ZT2-003

PLATE, HOUSING

$34.99

$

Usually ships in 3-6 days

0

5

Honda 31171-ZT2-003

HOUSING, RR.

$

$

Not available

6

Honda 31180-ZT2-003

COVER, GENERATOR END

$

$

Not available

7

Honda 31427-ZT2-003

HOLDER, CONDENSER

$

$

Not available

8

Honda 32221-ZT2-003

WIRE, TERMINAL

$

$

Not available

9

Honda 32330-Z03-C31

RECEPTACLE (20A/125V)

$58.99

$

In Stock, only 1 left!

0

10

Honda 32383-ZC0-010

SEE PART DETAILS - PRI; CONDENSER (A)

$

$

Not available

11

Honda 38240-ZT6-003

PROTECTOR, CIRCUIT (20A)

$

$

Not available

12

Honda 90031-875-003

SCREW, TAPPING (5X12)

$3.49

$

In Stock, only 4 left!

0

13

Honda 90032-ZB4-811

SCREW, TAPPING (4X10)

$2.99

$

Usually ships in 3-6 days

0

14

Honda 90032-875-003

SEE PART DETAILS - PRI; SCREW, TAPPING (5X14)

$3.49

$

Usually ships in 3-6 days

0

15

Honda 90157-ZT6-003

BOLT, FLANGE (6X90)

$10.99

$

Usually ships in 3-6 days

0

16

Honda 91051-ZT2-003

BEARING ASSY. (6202DDUCE)

$22.99

$

Usually ships in 3-6 days

0

18

Honda 90102-ZT2-000

BOLT, GEN. SET

$3.49

$

Usually ships in 3-6 days

0

19

Honda 31127-ZT6-003

COVER, STATOR

$18.99

$

Usually ships in 3-6 days

0

20

Honda 90032-875-003

SEE PART DETAILS - PRI; SCREW, TAPPING (5X14)

$3.49

$

Usually ships in 3-6 days

0

21

Honda 90031-875-003

SCREW, TAPPING (5X12) (GROUND CABLE)

Note: Use up to Frame SN 1007618.

$3.49

$

In Stock, only 4 left!

0

21

Honda 90102-899-003

SCREW, PAN (5X12) (GROUND CABLE)

Note: Use from Frame SN 1007619.

$4.99

$

Usually ships in 3-6 days

0
