EN2500 AL/A (EZFS) - Honda Generator, Made in Japan (SN: EZFS-1100001 - EZFS-9999999) FUEL TANK (2) Parts Diagram

Generator, Made in Japan

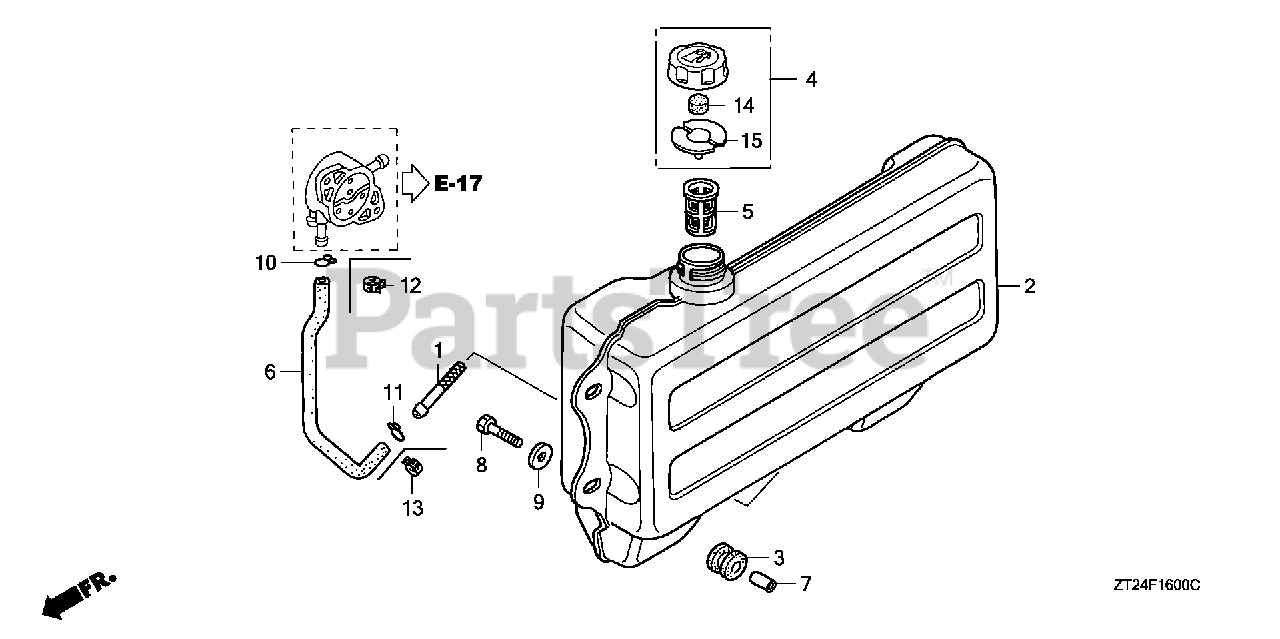

FUEL TANK (2) Parts Diagram

  • Title

1

Honda 16952-ZE6-000

FILTER, FUEL

$8.99

$

In Stock, Qty 20+

0

2

Honda 17511-ZT2-J31

TANK, FUEL

$

$

Not available

3

Honda 17516-ZV0-000

RUBBER B, TANK MOUNTING

$3.99

$

In Stock, only 2 left!

0

4

Honda 17620-ZL8-013

SEE PART DETAILS - SUP; CAP ASSY., FUEL TANK
(Superseded to 17620-ZL8-023)

$5.49

$

In Stock, only 1 left!

0

5

Honda 17670-ZC3-700

FILTER, FUEL

$14.99

$

In Stock, only 1 left!

0

6

Honda 17701-ZT2-J30

TUBE, FUEL TANK

Note: Use up to Frame SN 1119460.

$

$

Not available

6

Honda 17701-ZT6-J31

TUBE, FUEL TANK (FKM)

Note: Use from Frame SN 1119461.

$

$

Not available

7

Honda 90501-KA2-640

COLLAR (14X6.1)

$4.99

$

Usually ships in 3-6 days

0

8

Honda 92101-06025-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X25)

$1.99

$

In Stock, Qty 10

0

9

Honda 94103-06000

WASHER, PLAIN (6MM)

$1.49

$

In Stock, Qty 20+

0

10

Honda 95002-02100

CLIP, TUBE (B10)

Note: Use up to Frame SN 1119460.

$2.49

$

In Stock, Qty 16

0

11

Honda 95002-70000

CLIP, TUBE (C11)

Note: Use up to Frame SN 1119460.

$1.99

$

In Stock, Qty 20+

0

12

Honda 95002-41050-08

CLAMP, TUBE (D10.5)

Note: Use from Frame SN 1119461.

$3.49

$

In Stock, only 3 left!

0

13

Honda 95002-41200-08

CLAMP, TUBE (D12)

Note: Use from Frame SN 1119461.

$3.49

$

In Stock, only 2 left!

0

14

Honda 17622-ZL8-003

SPONGE, FUEL CAP BREATHER

$1.49

$

In Stock, only 3 left!

0

15

Honda 17624-ZL8-003

SEE PART DETAILS - SUP; GASKET, FUEL CAP

$

$

Not available
