EN3500 A (EZGB) - Honda Generator, Made in Japan (SN: EZGB-1000001 - EZGB-9999999) CYLINDER BARREL Parts Diagram

Generator, Made in Japan

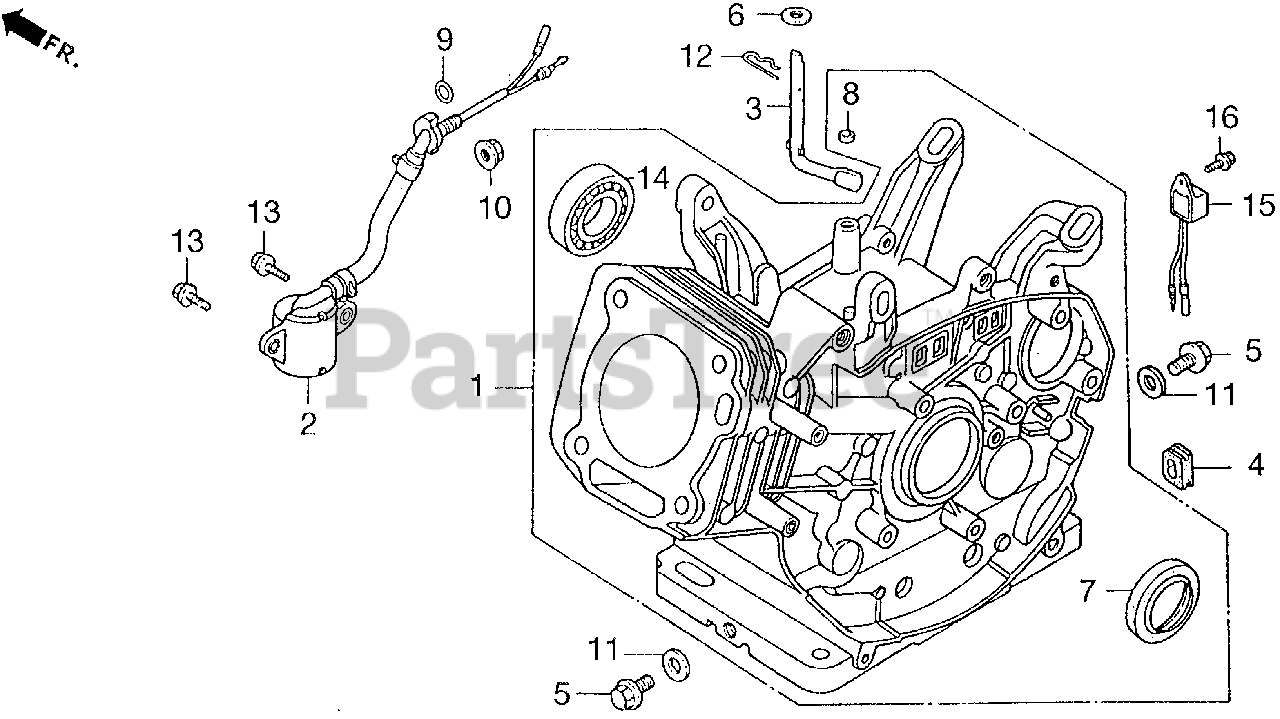

CYLINDER BARREL Parts Diagram

  • Title

1

Honda 12000-ZE2-406

SEE PART DETAILS - PRI; CYLINDER ASSY.

Note: Use from Engine SN 4081305.

$779.99

$

Usually ships in 3-6 days

0

1

Honda 12000-ZE2-815

SEE PART DETAILS - SUP; CYLINDER ASSY. (ALERT)

Note: Use up to Engine SN 4081304.

$

$

Currently unavailable

2

Honda 15510-ZE2-043

SEE PART DETAILS - SUP; SWITCH ASSY., OIL LEVEL
(Superseded to 15510-ZE2-053)

$69.99

$

In Stock, only 1 left!

0

3

Honda 16541-ZE2-010

SEE PART DETAILS - PRI; SHAFT, GOVERNOR ARM

$13.99

$

Usually ships in 3-6 days

0

4

Honda 31512-ZE2-000

GROMMET, WIRE

$4.49

$

Usually ships in 3-6 days

0

5

Honda 90131-883-000

SEE PART DETAILS - SUP; BOLT, DRAIN PLUG

$

$

Not available

5

Honda 90131-896-650

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG

$5.99

$

In Stock, Qty 7

0

6

Honda 90446-KE1-000

WASHER (8.2X17X0.8)

$2.49

$

Usually ships in 3-6 days

0

7

Honda 91201-890-003

OIL SEAL (30X46X8)

$12.99

$

In Stock, only 1 left!

0

9

Honda 91353-671-003

SEE PART DETAILS - PRI; O-RING (13.5X1.5) (ARAI)

$3.99

$

In Stock, Qty 20+

0

10

Honda 94050-10000

SEE PART DETAILS - PRI; NUT, FLANGE (10MM)

$2.49

$

In Stock, Qty 20+

0

11

Honda 94109-12000

SEE PART DETAILS - PRI; WASHER, DRAIN PLUG (12MM)

$1.99

$

In Stock, Qty 20+

0

12

Honda 94251-10000

PIN, LOCK (10MM)

$1.99

$

In Stock, only 2 left!

0

13

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0

15

Honda 34150-ZH7-003

SEE PART DETAILS - SUP; ALERT UNIT, OIL
(Superseded to 34150-ZH7-023)

$57.99

$

In Stock, only 3 left!

0

16

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200)

$2.49

$

In Stock, Qty 20+

0
