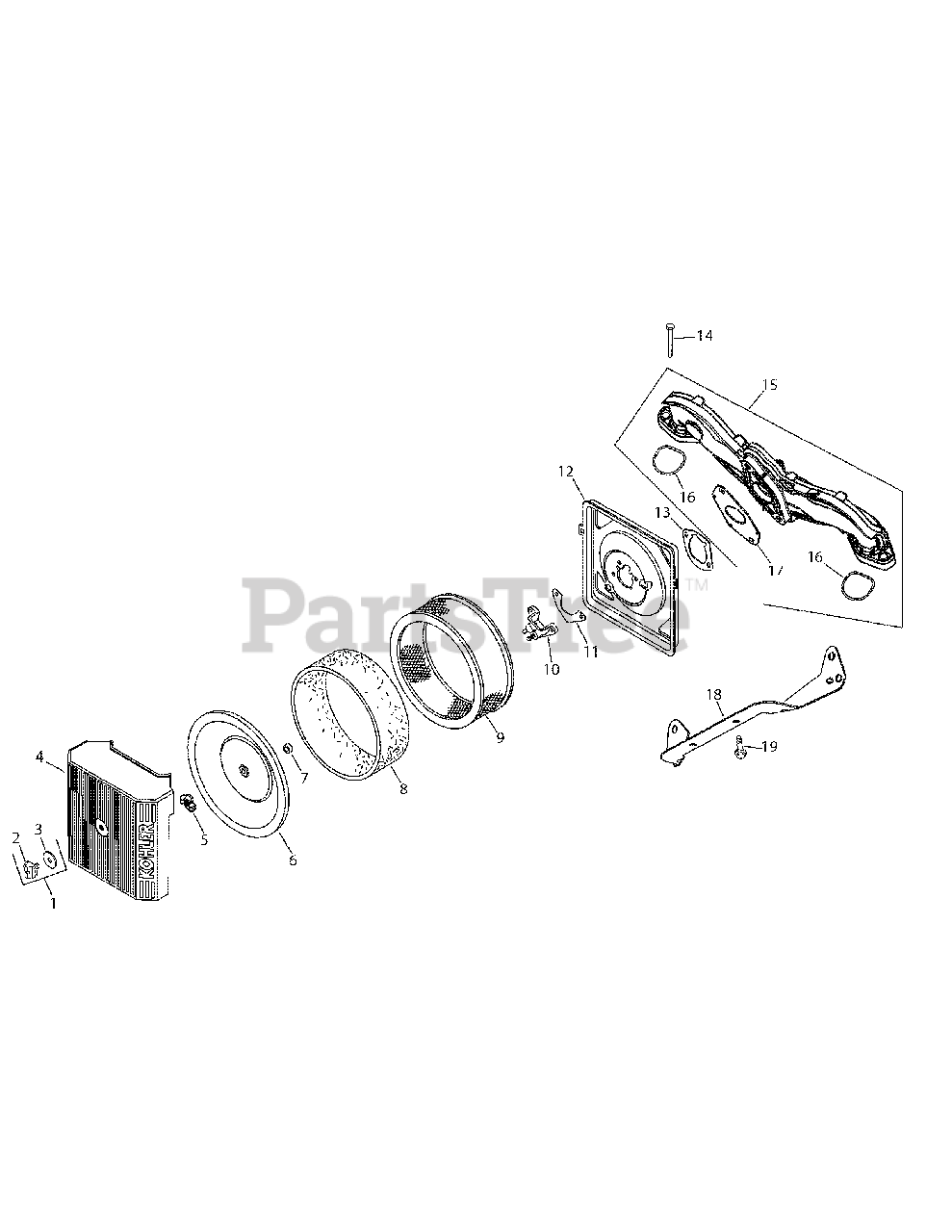

ENFORCER 44 (53AH3AGF050) - Cub Cadet 44" Zero-Turn Mower, 20hp Kohler Command CV20S-65610 Air Intake & Filtration Parts Diagram

44" Zero-Turn Mower, 20hp Kohler Command

CV20S-65610 Air Intake & Filtration Parts Diagram

  • Title

1

Cub Cadet KH-54-755-01-S

Kit, Knob W/ Seal

$9.49

$

In Stock, Qty 9

0

2

Cub Cadet KH-25-341-01-S

Knob, Cover

$3.49

$

In Stock, only 1 left!

0

3

Cub Cadet KH-24-153-20-S

O-Ring

$2.99

$

In Stock, only 2 left!

0

4

Cub Cadet KH-24-096-70-S

Cover, Air Cleaner

$51.99

$

In Stock, only 2 left!

0

5

Cub Cadet KH-12-100-01

Nut, Wing

$3.99

$

In Stock, Qty 18

0

6

Cub Cadet KH-24-096-01

Cover, Inner Air Cleaner

$

$

Not available

7

Cub Cadet KH-24-032-03

Seal, Inner Air Cleaner

$4.99

$

Usually ships in 2-5 days

0

8

Cub Cadet N/A

Pre-Cleaner

$

$

Currently unavailable

9

Cub Cadet KH-47-883-03-S1

Elements, Air Filter & Pre-Cleaner
(Superseded to 4788303S1C)

$27.99

$

Usually ships in 3-6 days

0

10

Cub Cadet KH-24-109-30-S

Cup, Fuel Spitback W/ Nipple

$31.99

$

Usually ships in 2-5 days

0

11

Cub Cadet KH-24-041-13-S

Gasket, Fuel Spitback Cup

$5.99

$

In Stock, only 3 left!

0

12

Cub Cadet KH-24-094-43-S

Base, Air Cleaner
(Superseded to KH-24-094-87-S)

$95.99

$

Usually ships in 2-5 days

0

13

Cub Cadet KH-24-041-14

Gasket, Air Cleaner Base

$

$

Not available

14

Cub Cadet KH-24-164-91-S

Manifold, Intake
(Superseded to KH-24-164-278-S)

$231.99

$

Usually ships in 3-6 days

0

15

Cub Cadet KH-24-041-52-S

Gasket, Carburetor
(Superseded to KH-24-041-91-S)

$5.99

$

Usually ships in 3-6 days

0

16

Cub Cadet KH-24-153-27-S

O-Ring, Intake Port

$3.99

$

In Stock, only 3 left!

0

17

Cub Cadet KH-M-651040-S

Screw, Flg M6x1.0x40

$2.49

$

In Stock, only 1 left!

0

18

Cub Cadet KH-24-126-130-S

Bracket, Air Cleaner Base

$10.99

$

In Stock, only 1 left!

0

19

Cub Cadet KH-M-0545010

Screw, Flg Thd Frm M5 x .8 x 10

$

$

Not available

20

Cub Cadet KH-24-063-105-S

Baffle, Spit-Back Cup

$8.99

$

In Stock, only 2 left!

0
