ENFORCER 44 (53AI3AGF750) - Cub Cadet 44" Zero-Turn Mower, 19hp Kawasaki Fabricated Deck Spindle Assembly 44-Inch Parts Diagram

44" Zero-Turn Mower, 19hp Kawasaki

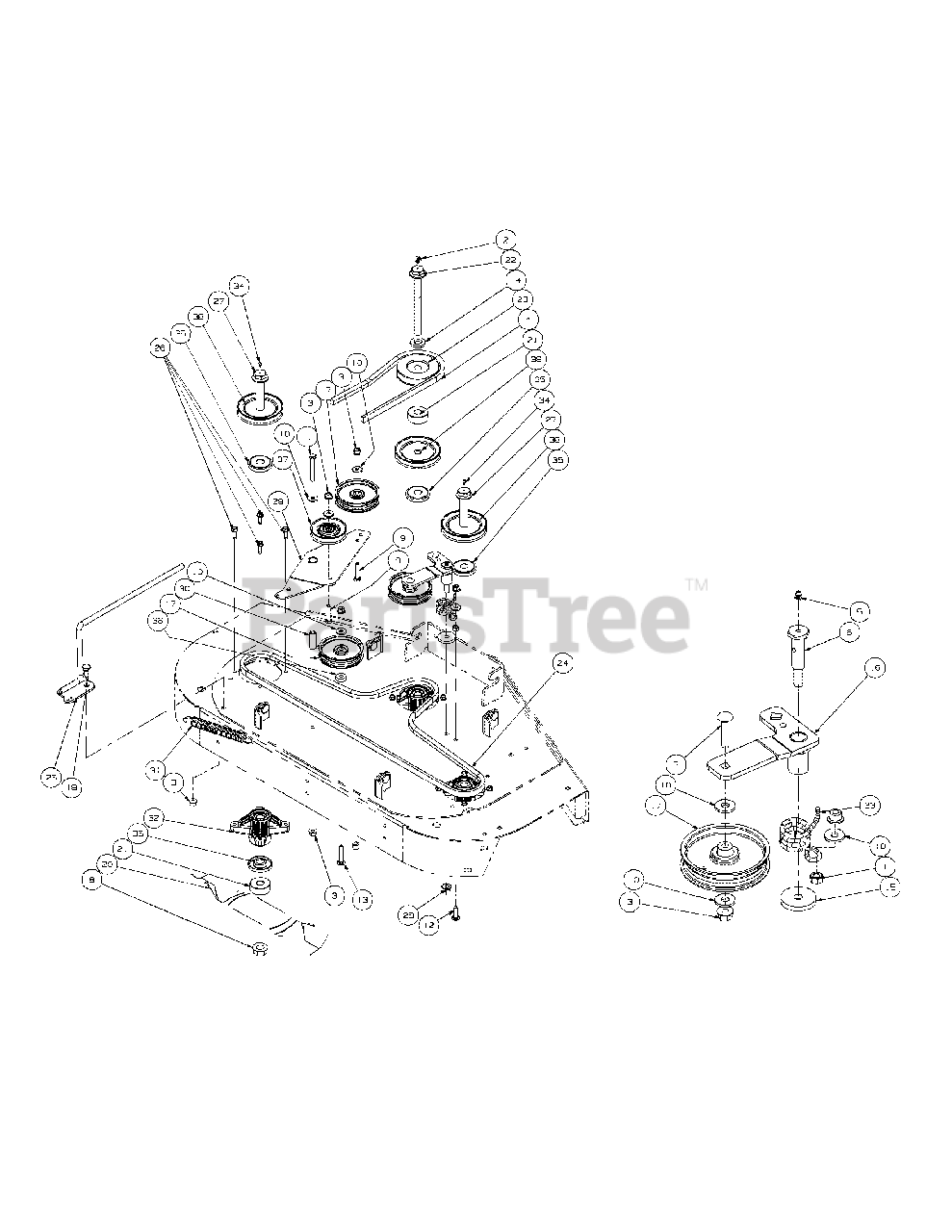

Fabricated Deck Spindle Assembly 44-Inch Parts Diagram

  • Title

1

Cub Cadet 912-3017

Hex Nut 3/8-16
(Superseded to 712-3017)

$4.49

$

In Stock, Qty 11

0

2

Cub Cadet 737-3004

Grease Fitting, 90 degree

$12.99

$

In Stock, only 3 left!

0

3

Cub Cadet 00022560

Hex Nut, 3/8-16 Flange Lock
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 00030779

Belt Drive

$74.99

$

In Stock, only 2 left!

0

5

Cub Cadet 737-04345

Grease Fitting, 1/4-28 x 3/16

$4.99

$

In Stock, Qty 6

0

6

Cub Cadet 01000302

Shoulder Screw, 7/16-14
(Superseded to 738-3102)

$22.99

$

In Stock, Qty 9

0

7

Cub Cadet 710-0560

Hex Carriage Screw, 3/8-16, 1.75

$7.49

$

In Stock, Qty 13

0

8

Cub Cadet 712-3078

Hex Flange Nut, 3/4-16

$10.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0347

Hex Cap Screw, 3/8-16 x 1.750

$5.49

$

In Stock, Qty 20+

0

10

Cub Cadet 736-3052

Flat Washer, .406 ID x 1.0 OD x .105

$4.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-3022

Hex Cap Screw 3/8-16 x 2.75

$4.99

$

In Stock, only 3 left!

0

12

Cub Cadet 710-3034

Carraige Screw, 3/8-16 x 1.25

$4.49

$

In Stock, only 2 left!

0

13

Cub Cadet 01002011

Carriage Bolt, 3/8-16 x 2.00

$

$

Not available

14

Cub Cadet 01003123

Spacer, .812 ID x .218
(Superseded to 750-05553)

$10.99

$

In Stock, Qty 20+

0

15

Cub Cadet 01003269

Flat Washer, 7/16 ID x 1.75 OD
(Superseded to 736-3082A)

$10.99

$

In Stock, Qty 11

0

16

Cub Cadet 01005737

Idler Arm Assembly, Deck Spindle includes:

$115.99

$

In Stock, only 2 left!

0

16

Cub Cadet 01000308

Bearing
(Superseded to 741-04555)

Note: (not shown)

$17.99

$

In Stock, only 2 left!

0

17

Cub Cadet 02005077

Flat Pulley

$38.99

$

In Stock, Qty 20+

0

18

Cub Cadet 01004118

Shoulder Screw, .50 x .27, 3/8-16
(Superseded to 938-0380)

$8.49

$

In Stock, Qty 20+

0

19

Cub Cadet 01007312

Spacer, .625 OD x .385 ID x 1/2

$24.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 02005020

Blade, 15.94, Hi-Lift, 0.756 ID
(Superseded to 02005020-0637)

Variations

Cub Cadet 02005020-0637

Mower Blade, 15.94" Lg Hi-Lift Powder Black - POWDER BLACK (0637)

$30.99

$

In Stock, Qty 20+

0

$30.99

$

In Stock, Qty 20+

0

21

Cub Cadet 750-05184

Spacer .760 ID x 2.00 OD x 0.790

$39.99

$

In Stock, Qty 5

0

22

Cub Cadet 02000071

Spindle Bolt, 3/4-16 x 7.155

$41.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 02000079

V-Pulley 4.25 OD Casting

$118.99

$

In Stock, only 4 left!

0

24

Cub Cadet 02000103

V-Belt, A-Section
(Superseded to 02000103P)

$92.99

$

In Stock, Qty 6

0

25

Cub Cadet 02000416

Spring Tension Rod Assembly

$

$

Not available

26

Cub Cadet 02000762

Self Tapping Screw 5/16-18 x 1.00
(Superseded to 710-0602)

$4.99

$

In Stock, Qty 20+

0

27

Cub Cadet 02000819

Spindle Bolt 3/4-16 x 5.37

$38.99

$

In Stock, only 4 left!

0

28

Cub Cadet 02000948

Nut, 7/16-20, FlangeLock
(Superseded to 712-04337)

$3.99

$

In Stock, only 1 left!

0

29

Cub Cadet 02003795

Idler Arm Assembly, Double, includes:

$

$

Not available

29

Cub Cadet 01000308

Bearing
(Superseded to 741-04555)

Note: (not shown)

$17.99

$

In Stock, only 2 left!

0

30

Cub Cadet 02003640

Spacer, .39 ID x .625 OD x 1.875

$7.49

$

In Stock, Qty 9

0

31

Cub Cadet 01009635

Spring Extension, .98 OD x 5.00

$20.99

$

In Stock, only 4 left!

0

32

Cub Cadet 918-04426

Spindle Assembly

$119.99

$

In Stock, Qty 20+

0

33

Cub Cadet 732-3067

Idler Torsion Spring

$25.99

$

In Stock, Qty 20+

0

34

Cub Cadet 937-3000

Grease Fitting

$4.99

$

In Stock, Qty 20+

0

35

Cub Cadet 748-3065A

Spindle Spacer

$14.99

$

In Stock, Qty 20+

0

36

Cub Cadet 750-3119

Spacer .406 ID x 1.0 OD

$12.99

$

In Stock, only 3 left!

0

37

Cub Cadet 956-0399

V-Pulley, 3.50 OD

$53.99

$

In Stock, only 2 left!

0

38

Cub Cadet 756-3089

Pulley

$38.99

$

In Stock, Qty 13

0
