ENFORCER 44 (53BI3AGF050) - Cub Cadet 44" Zero-Turn Mower, 19hp Kawasaki Kawasaki FH580V-AS05 Cylinder & Crankcase Parts Diagram

44" Zero-Turn Mower, 19hp Kawasaki

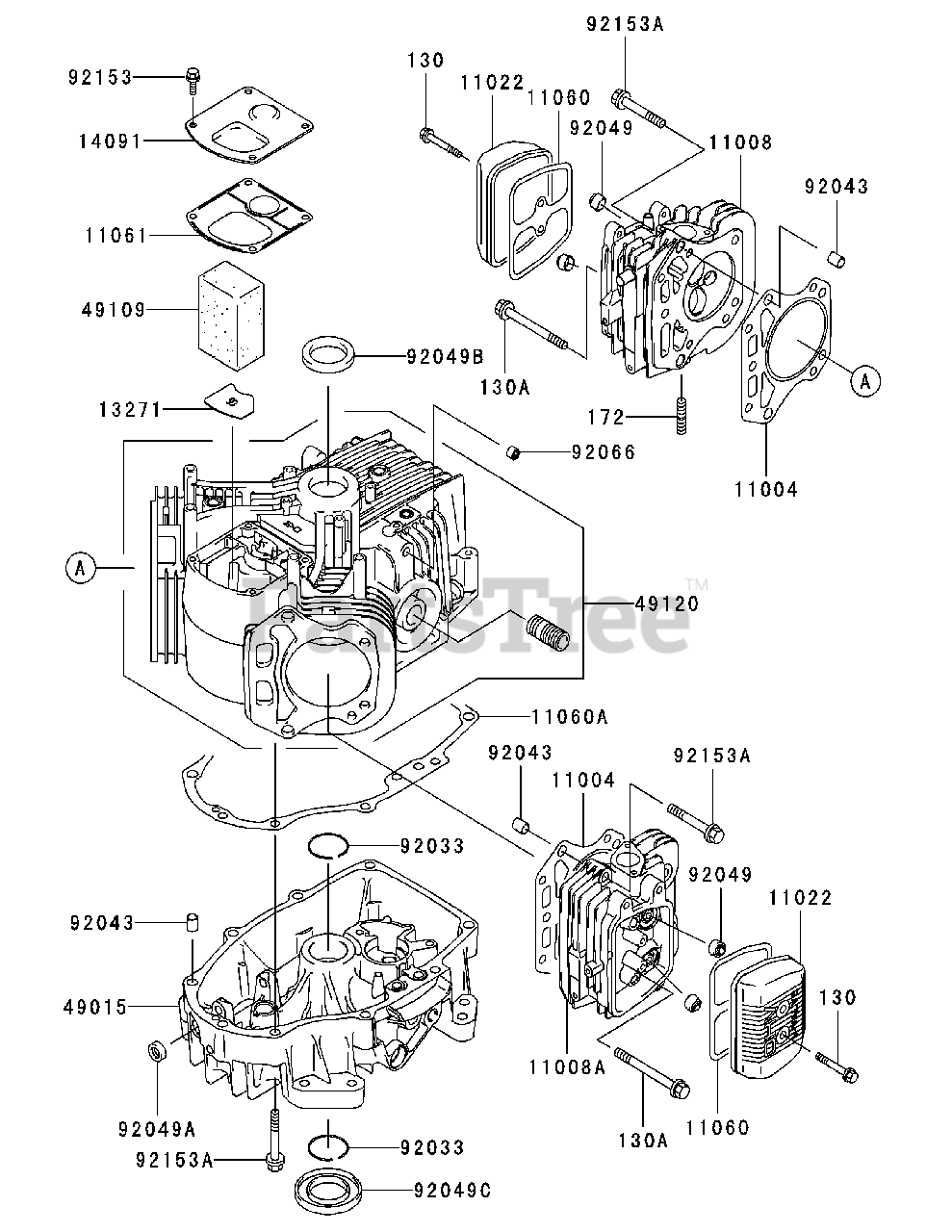

Kawasaki FH580V-AS05 Cylinder & Crankcase Parts Diagram

  • Title

11004

Cub Cadet KM-11004-7016

Gasket-Head

$10.99

$

In Stock, Qty 13

0

11008

Cub Cadet KM-11008-6043

Head-Comp-Cylinder #1

$273.99

$

In Stock, only 2 left!

0

11008A

Cub Cadet KM-11008-7020

Head-Comp-Cylinder #2

$273.99

$

In Stock, only 1 left!

0

11022

Cub Cadet KM-11022-7003

Case-Rocker

$14.99

$

In Stock, only 3 left!

0

11060

Cub Cadet KM-11060-7001

Gasket, Rocker Case

$6.99

$

In Stock, Qty 20+

0

11060A

Cub Cadet KM-11060-7008

Gasket, Crankcase Cover

$6.99

$

In Stock, Qty 20+

0

11061

Cub Cadet KM-11061-7001

Gasket, Breather
(Superseded to KM-99996-6104)

$18.99

$

In Stock, Qty 12

0

13271

Cub Cadet KM-13271-7016

Plate

$2.49

$

In Stock, only 2 left!

0

14091

Cub Cadet KM-14091-7006

Cover
(Superseded to KM-99996-6104)

$18.99

$

In Stock, Qty 12

0

49015

Cub Cadet KM-49015-6253

Cover-Crankcase

$180.99

$

Usually ships in 2-5 days

0

49109

Cub Cadet KM-49109-7002

Element-Breather
(Superseded to KM-99996-6104)

$18.99

$

In Stock, Qty 12

0

49120

Cub Cadet KM-49120-7023

Crankcase-Comp

$

$

Not available

92033

Cub Cadet KM-92033-7003

Ring-Snap

$0.99

$

In Stock, Qty 20+

0

92043

Cub Cadet KM-92043-7001

Pin

$0.99

$

In Stock, Qty 20+

0

92049

Cub Cadet KM-92049-7001

Seal-Oil, RVC2 6x11x10.2

$8.49

$

In Stock, Qty 20+

0

92049A

Cub Cadet KM-92049-7005

Seal-Oil,So 8x14x5 HS
(Superseded to KM-92049-7019)

$2.49

$

In Stock, Qty 20+

0

92049B

Cub Cadet KM-92049-7010

Seal-Oil,SD 35x48x8 R HS

$3.49

$

In Stock, Qty 20+

0

92049C

Cub Cadet KM-92049-7011

Seal-Oil,SD 35x62x8 L HS

$5.99

$

In Stock, Qty 20+

0

92066

Cub Cadet KM-92066-7002

Plug

$

$

Not available

92153

Cub Cadet KM-92153-7043

Bolt, 6x12
(Superseded to KM-92154-2938)

$0.99

$

In Stock, Qty 10

0

92153A

Cub Cadet KM-92153-7054

Bolt, 8x50

$2.99

$

In Stock, Qty 9

0

130

Cub Cadet KM-130B0640

Bolt-Flanged
(Superseded to KM-130BA0640)

$1.49

$

In Stock, only 3 left!

0

130A

Cub Cadet KM-130CA0875

Bolt-Flanged, 8x75

$2.49

$

In Stock, Qty 11

0

172

Cub Cadet KM-172G0818

Bolt-Stud
(Superseded to KM-172BA0818)

$1.99

$

In Stock, Qty 20+

0
