ENFORCER 44 (53BI3AGF050) - Cub Cadet 44" Zero-Turn Mower, 19hp Kawasaki Steering Assembly Parts Diagram

44" Zero-Turn Mower, 19hp Kawasaki

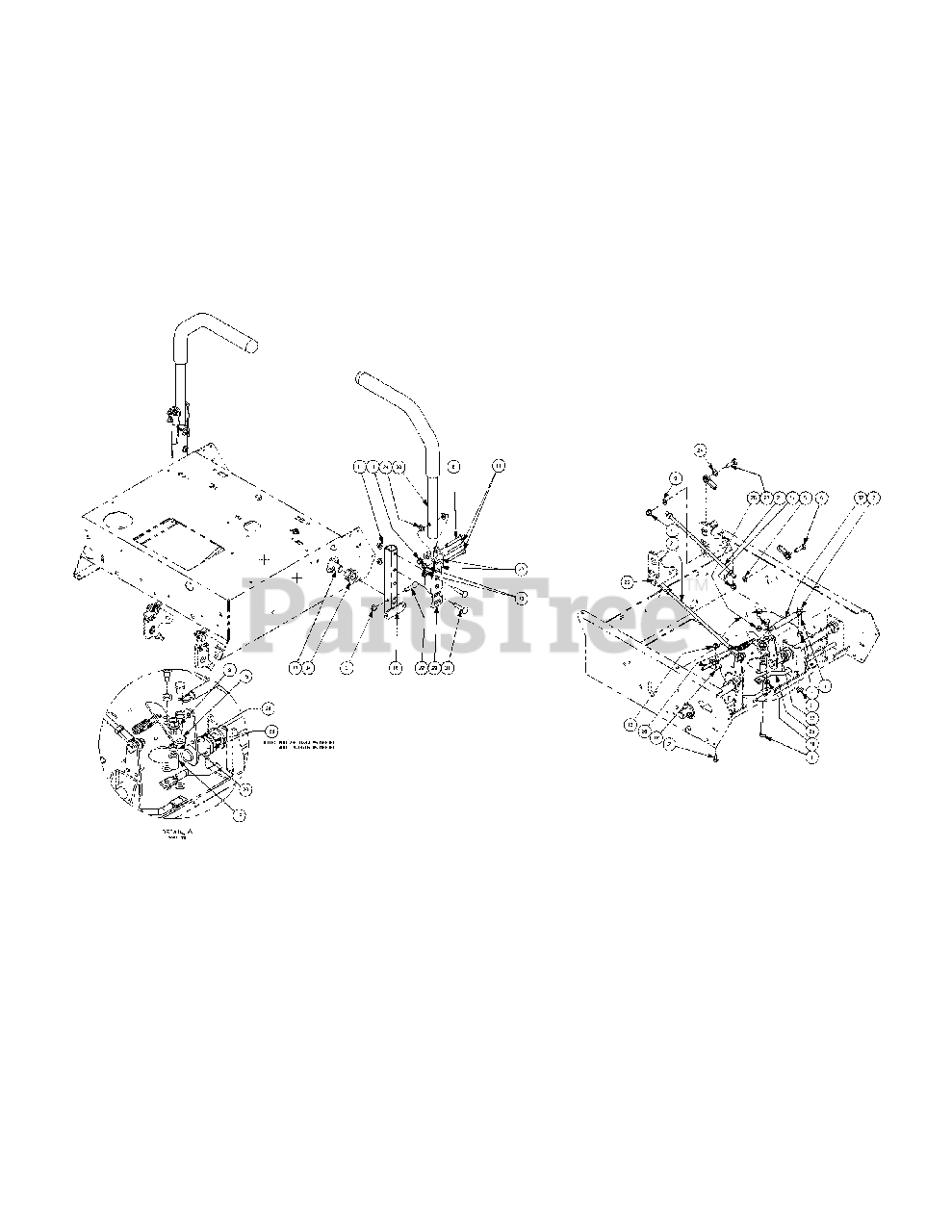

Steering Assembly Parts Diagram

  • Title

1

Cub Cadet 00011438

Hex Cap Screw, 3/8-16 x 1-1/2
(Superseded to 710-06021)

$3.99

$

In Stock, Qty 10

0

2

Cub Cadet 710-3013

Hex Cap Screw, 1/4-20 x 1/2

$4.99

$

In Stock, Qty 7

0

3

Cub Cadet 00012165

Nylock Nut, 5/16-18

$4.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 00012166

Hex Nut, 5/16-18

$

$

Not available

5

Cub Cadet 00012169

Flat Washer, 5/16

$4.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 00012180

Hex Head Cap Screw, 5/16-18 x 1.00

$

$

Not available

7

Cub Cadet 00012382

Hex Cap Screw, 5/16-18 x 1-1/2

$

$

Not available

8

Cub Cadet 00013198

Hex Cap Screw, 5/16-18 x 2.00
(Superseded to 710-3103)

$4.99

$

In Stock, Qty 16

0

9

Cub Cadet 00022560

Nut, Flange Lock, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 936-0463

Flat Washer, 1.4 x .630 x .0515
(Superseded to 736-0463)

$4.99

$

In Stock, Qty 20+

0

11

Cub Cadet 712-3004A

Nut, 5/16-18, Lock

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 01001919

Shoulder Screw, 1/4-28
(Superseded to 738-0826)

$13.99

$

In Stock, only 1 left!

0

13

Cub Cadet 912-3027

Nut, 1/4-20, Hex Flange Lock Nut

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 01006898

Hex Cap Screw, 1/4-20 x 2.00

$6.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 02002684

Brake Lever Plate

$

$

Not available

16

Cub Cadet 02002687-0637

Pivot Bracket Weldment

$95.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 02002723

Steering Input Shaft Assembly

$67.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 02002844

Spacer, .385 ID x .625 OD x .869

$

$

Not available

19

Cub Cadet 02002864

Brake Cable Mounting Bracket

$

$

Not available

20

Cub Cadet 02002885

Spacer, .380 x .563 x .196

$6.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 02002992

Steering Link Rod

$

$

Not available

22

Cub Cadet 02002994

Socket Head Capscrew, 5/16-18 x 1.25

$7.49

$

In Stock, only 2 left!

0

23

Cub Cadet 00013116

HHCS, 5/16-18 x 1-1/4

$5.99

$

In Stock, only 1 left!

0

24

Cub Cadet 02003419

Bushing, .310 x .172 x .688 x .06

$4.99

$

In Stock, only 4 left!

0

25

Cub Cadet 02003560

Control Lock Rod

$

$

Not available

26

Cub Cadet 02003568

Control Cable Lock Out

$51.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 02003644

Spacer, .25 ID x .38 OD x 1.13

$6.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 02003716

Retainer Ring, E-Clip
(Superseded to 716-0136)

$9.49

$

In Stock, Qty 10

0

29

Cub Cadet 02003853-0637

Lapbar Pivot Bracket

$

$

Not available

30

Cub Cadet 02003855

Lapbar Assembly includes:

$123.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 02003855

Control Handle Pivot Tube

Note: (not shown)

$123.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 02002662

Grip, 1.0
(Superseded to 720-04188)

Note: (not shown)

$26.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 710-0262

Carriage Bolt, 5/16-18 x 1.50

$4.49

$

In Stock, Qty 5

0

32

Cub Cadet 932-0470A

Extension Spring, .53 OD x 4.7

$10.99

$

In Stock, Qty 20+

0

33

Cub Cadet 936-0287

Flat Washer, .793 ID x 1.24 OD x .060
(Superseded to 736-0287)

$

$

Not available

34

Cub Cadet 941-0598

Hex Flange Bearing, .752 ID

$13.99

$

In Stock, Qty 20+

0
