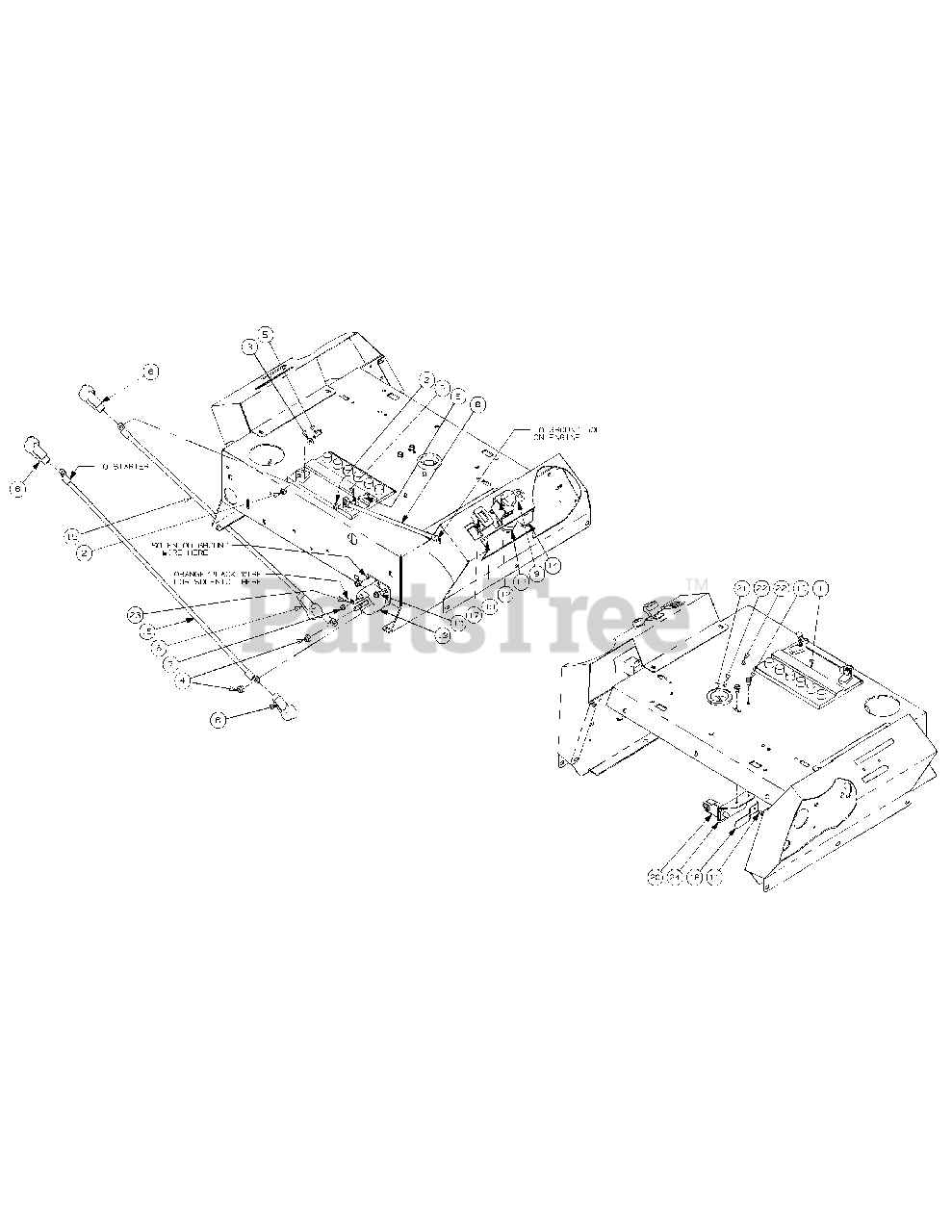

ENFORCER 48 (53AI3AGV750) - Cub Cadet 48" Zero-Turn Mower, 21hp Kawasaki Electrical Assembly Parts Diagram

48" Zero-Turn Mower, 21hp Kawasaki

Electrical Assembly Parts Diagram

  • Title

1

Cub Cadet 925-1707D

Battery, 12V 225CCA 30Min

$

$

Not available

2

Cub Cadet 00012152

Lock Nut, Nylon Insert, 1/4-20

$4.49

$

In Stock, only 1 left!

0

3

Cub Cadet 00012154

Flat Washer, 1/4
(Superseded to 936-3020)

$

$

Not available

4

Cub Cadet 00012165

Nylock Nut, 5/16-18

$4.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 00013131

Hex Cap Screw, 1/4-20 x .75

$6.49

$

In Stock, only 1 left!

0

6

Cub Cadet 00013258

Boot, 1" OD Rubber Battery-PST Red

$9.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 00014608

Lock Nut, Nylon Insert, 10-32
(Superseded to 712-05003)

$3.49

$

In Stock, only 2 left!

0

8

Cub Cadet 00024233

Cable, Battery, Black, 17"

$41.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 00032097

Nut, 5/8-32, w/Cap
(Superseded to 00032097P)

$

$

Not available

10

Cub Cadet 710-0599

Self Tapping Screw, 1/4-20 x 1/2

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 01001864

Self Tapping Screw, 10-32 x 1/2
(Superseded to 1767754)

$

$

Not available

12

Cub Cadet 01002111

Electric PTO Switch
(Superseded to 925-1716A)

$77.99

$

In Stock, Qty 13

0

13

Cub Cadet 925-3001

Solenoid

$62.99

$

In Stock, Qty 16

0

14

Cub Cadet 01002251

Relay, 12V 40A

$61.99

$

In Stock, Qty 8

0

15

Cub Cadet 01002252

Cable, Battery, Red, 24"

$40.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 01003581P

Switch, Ignition, 6 Pin

$74.99

$

In Stock, Qty 9

0

16

Cub Cadet 725-1341B

Key, Ignition

Note: (not shown)

$11.99

$

In Stock, only 4 left!

0

17

Cub Cadet 925-05120A

Hour Meter includes:

$101.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 02004259

Clip

Note: (not shown)

$7.49

$

Usually ships in 3-6 days

0

18

Cub Cadet 732-04200

Safety Switch Retainer Spring

$10.99

$

In Stock, only 3 left!

0

19

Cub Cadet 01009905

PTO Switch Bracket

$28.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 02000024P

Switch, Safety N.O./N.C.
(Superseded to 925-3164A)

$42.99

$

In Stock, Qty 12

0

21

Cub Cadet 02001134

Gromment, 1.5 ID x 2.13 OD

$

$

Not available

22

Cub Cadet 02003038

Electrical Conduit Clip, 3/8

$

$

Not available

23

Cub Cadet 02003533

Terminal Tab, 1/4" Blade

$

$

Not available

24

Cub Cadet 02003596-0637

Brake Switch Mounting Bracket

$

$

Not available

Cub Cadet 02003651

Harness Assembly

Note: (not shown)

$

$

Not available

Cub Cadet 02003675

Harness Assembly Adaptor

Note: (not shown)

$

$

Not available
