ENFORCER 54 (53AH3AGT050) - Cub Cadet 54" Zero-Turn Mower, 23hp Kohler Command Electrical Assembly (2008 & Before) Parts Diagram

54" Zero-Turn Mower, 23hp Kohler Command

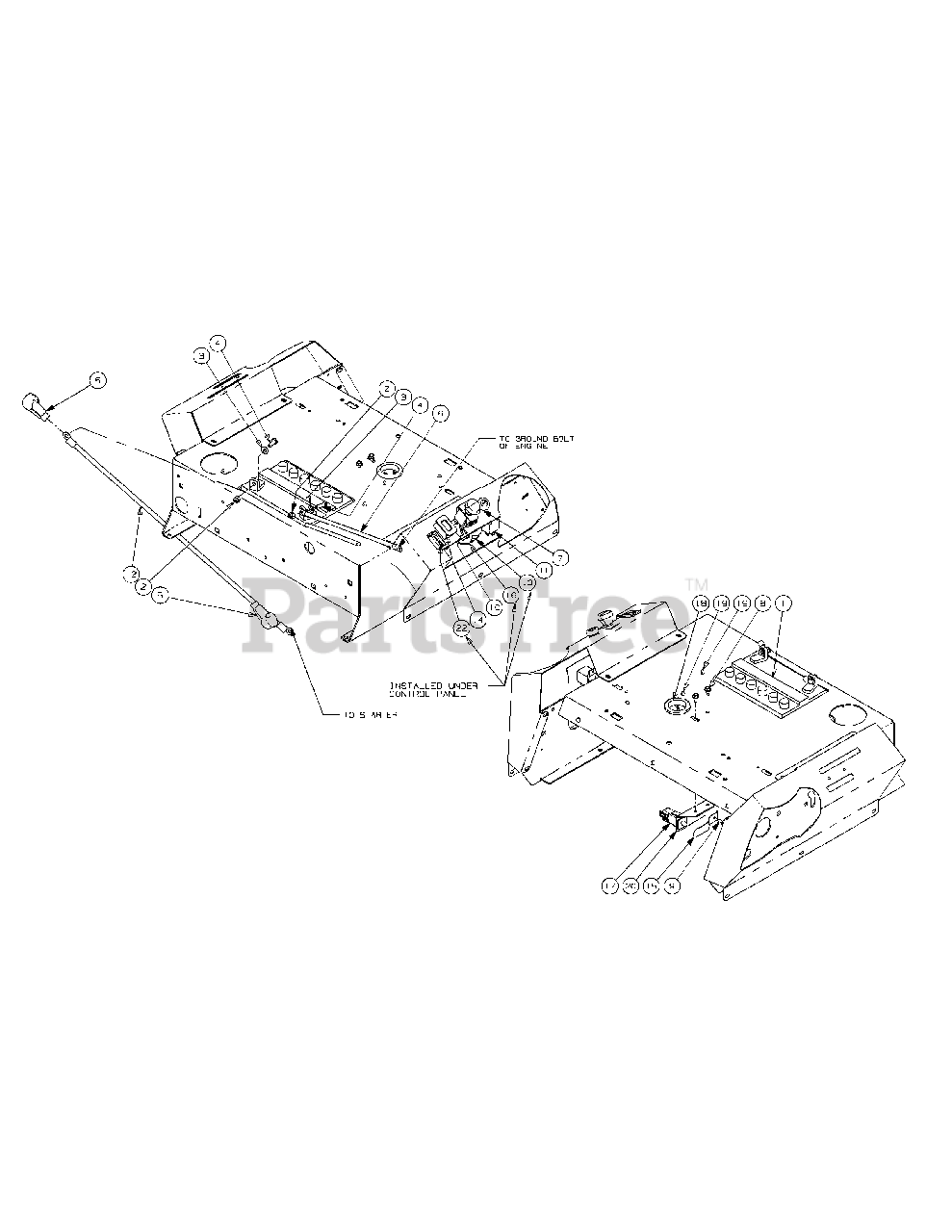

Electrical Assembly (2008 & Before) Parts Diagram

  • Title

1

Cub Cadet 925-1707D

Battery, 12V 225CCA 30Min

$

$

Not available

2

Cub Cadet 00012152

Lock Nut, Nylon Insert, 1/4-20

$3.99

$

In Stock, only 1 left!

0

3

Cub Cadet 00012154

Flat Washer, 1/4
(Superseded to 936-3020)

$

$

Not available

4

Cub Cadet 710-3015

Hex Cap Screw, 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 00013258

Boot, 1" OD Rubber Battery-PST Red

$9.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 00024233

Cable, Battery, Black, 17"

$36.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 00032097

Nut, 5/8-32, w/Cap
(Superseded to 00032097P)

$

$

Not available

8

Cub Cadet 710-0599

Self Tapping Screw, 1/4-20 x 1/2

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 01001864

Self Tapping Screw, 10-32 x 1/2
(Superseded to 1767754)

$

$

Not available

10

Cub Cadet 01002111

Electric PTO Switch
(Superseded to 925-1716A)

$68.99

$

In Stock, Qty 20+

0

11

Cub Cadet 01002251

Relay, 12V 40A

$53.99

$

In Stock, only 2 left!

0

12

Cub Cadet 01002252

Cable, Battery, Red, 24"

$35.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 01003581P

Switch, Ignition, 6 Pin

$65.99

$

In Stock, Qty 20+

0

14

Cub Cadet 925-05120A

Hour Meter includes:

$88.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 02004259

Clip

Note: (not shown)

$6.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 732-04200

Safety Switch Retainer Spring

$9.99

$

In Stock, Qty 8

0

16

Cub Cadet 01009905

PTO Switch Bracket

$25.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 02000024P

Switch, Safety N.O./N.C.
(Superseded to 925-3164A)

$37.99

$

In Stock, Qty 14

0

18

Cub Cadet 02001134

Gromment, 1.5 ID x 2.13 OD

$

$

Not available

19

Cub Cadet 02003037

Electrical Conduit Clip, 1/2

$3.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 02003596-0637

Brake Switch Mounting Bracket

$

$

Not available

Cub Cadet 02003651

Harness Assembly

Note: (not shown)

$

$

Not available
