ENFORCER 54 (53AH3AGT050) - Cub Cadet 54" Zero-Turn Mower, 23hp Kohler Command Kohler CV23-75592 Blower Housing & Baffles Parts Diagram

54" Zero-Turn Mower, 23hp Kohler Command

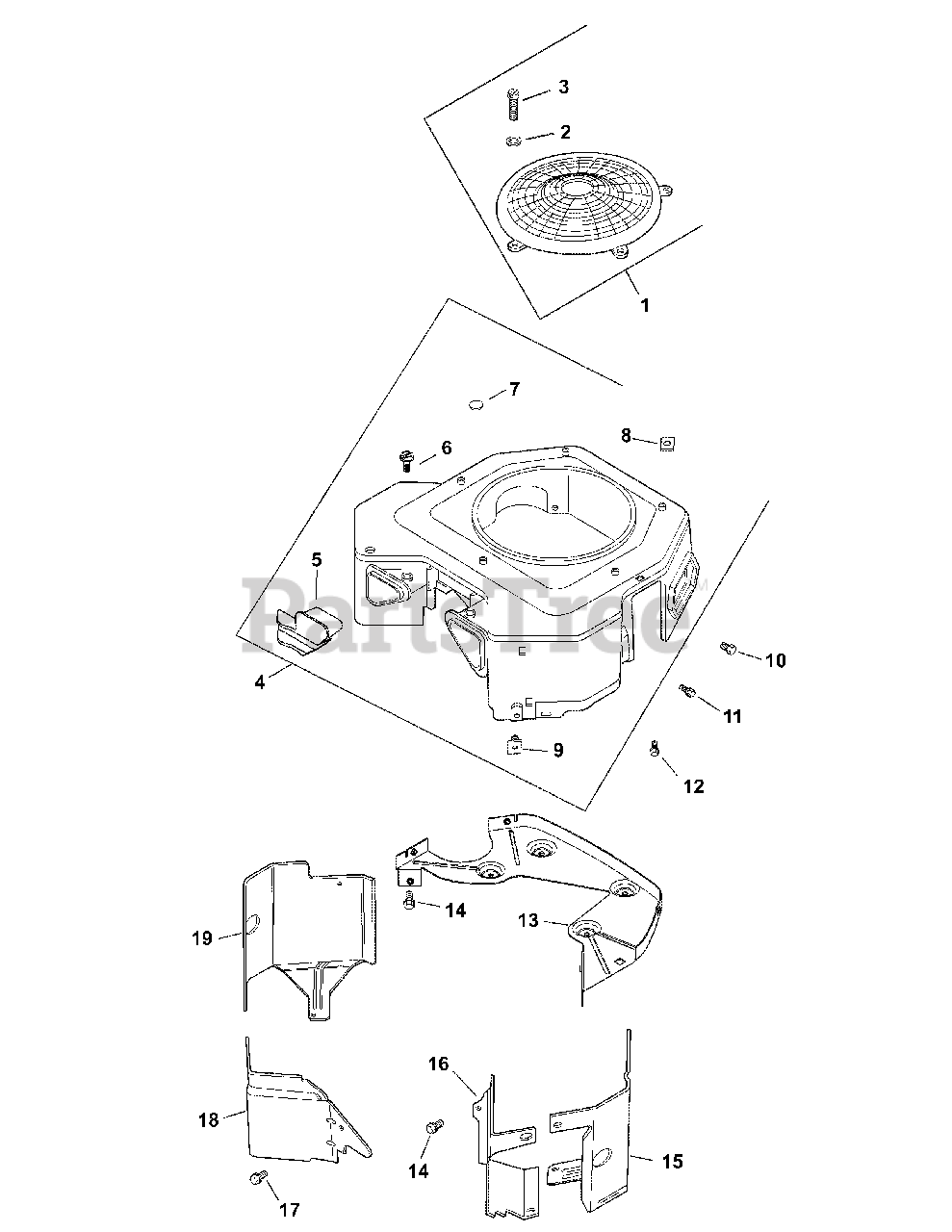

Kohler CV23-75592 Blower Housing & Baffles Parts Diagram

  • Title

1

Cub Cadet KH-24-755-81-S

Kit, Fixed Guard

Note: (Includes Ref No. 2, 3,Decal & Insert)

$52.99

$

In Stock, only 4 left!

0

2

Cub Cadet KH-24-468-10-S

Washer, Flat 7/32

$

$

Currently unavailable

3

Cub Cadet KH-24-086-35-S

Screw, LBD SCKT Pan M5x0.8x10

$2.49

$

Usually ships in 2-5 days

0

4

Cub Cadet KH-24-027-196-S

Kit, Blower Housing Assembly
(Superseded to KH-24-027-492-S)

Note: (Includes Ref No. 5-9, Nameplate & Insert )

$136.99

$

Usually ships in 2-5 days

0

5

Cub Cadet KH-24-096-85-S

Cover, Blower Housing
(Superseded to KH-24-096-161-S)

$2.49

$

Usually ships in 2-5 days

0

6

Cub Cadet KH-25-086-91-S

Screw, Wsh Hd Tap #8-18 x 1/2"

$3.49

$

Usually ships in 2-5 days

0

7

Cub Cadet KH-25-139-16-S

Plug, Button 9/16

$

$

Currently unavailable

8

Cub Cadet KH-24-100-02-S

Nut, Plastic

$2.49

$

Usually ships in 2-5 days

0

9

Cub Cadet KH-24-100-01-S

Nut, Plastic

$

$

Currently unavailable

10

Cub Cadet KH-M-561016-S

Screw, FLG THD FRM M5 x .8 x 16
(Superseded to KH-25-086-398-S)

$3.99

$

In Stock, Qty 13

0

11

Cub Cadet KH-M-545016-S

Screw, FLG THD FRM M5 x .8 x 16
(Superseded to KH-25-086-398-S)

$3.99

$

In Stock, Qty 13

0

12

Cub Cadet KH-M-545020-S

Screw, FLG THD FRM M5 x .8 x 20
(Superseded to KH-25-086-473-S)

$2.49

$

In Stock, Qty 17

0

13

Cub Cadet KH-24-146-55-S

Kit, Backing Plate
(Superseded to KH-24-146-59-S)

$15.99

$

In Stock, only 3 left!

0

14

Cub Cadet KH-M-645016-S

Screw, FLG THD FRM M6 x 1.0 x 16

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet KH-24-063-88-S

Kit, Cyl Baffle-#2 Side

$28.99

$

In Stock, only 1 left!

0

16

Cub Cadet KH-24-063-69-S

Baffle, Valley-#2 Side
(Superseded to KH-24-063-94-S)

$9.49

$

In Stock, only 2 left!

0

17

Cub Cadet KH-M-545010-S

Screw, FLG THD FRM M5 x .8 x 10

$

$

Currently unavailable

18

Cub Cadet KH-24-063-60-S

Baffle, Valley #1 Side

$

$

Not available

19

Cub Cadet KH-24-063-85-S

Kit, Cyl Barrel - #1 Side

$17.99

$

In Stock, only 1 left!

0

Cub Cadet KH-24-332-01-S

Insert, Threaded

Note: (Not Shown)

$

$

Not available

Cub Cadet KH-25-086-160-S

Screw, Sems

Note: (Not Shown)

$2.99

$

In Stock, only 4 left!

0

Cub Cadet KH-41-037-10-S

Nameplate, Service

Note: (Not Shown)

$8.49

$

In Stock, only 3 left!

0

Cub Cadet KH-24-113-18-S

Decal, Grass Screen

Note: (Not Shown)

$

$

Not available
