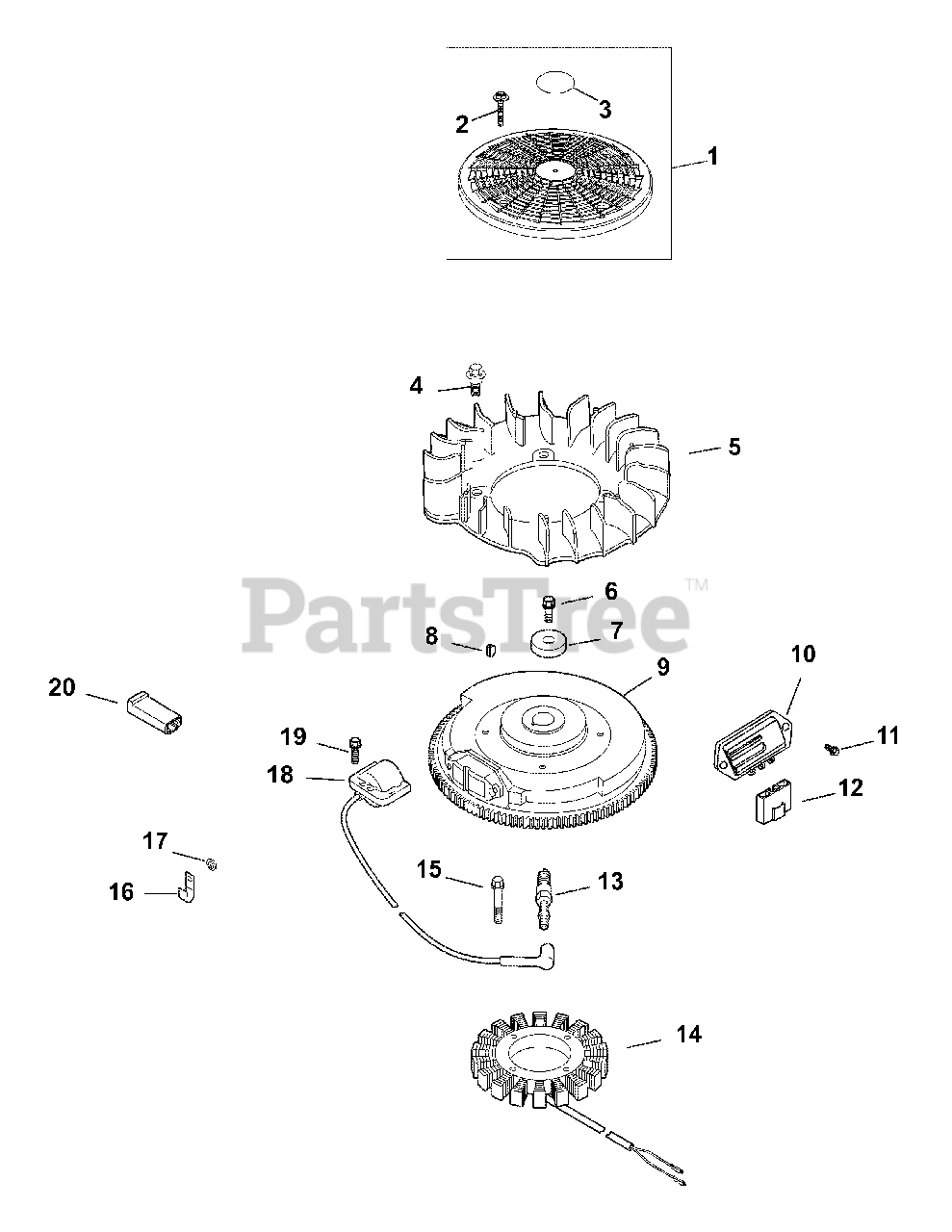

ENFORCER 54 (53AH3AGT050) - Cub Cadet 54" Zero-Turn Mower, 23hp Kohler Command Kohler CV23-75592 Ignition & Electrical Parts Diagram

54" Zero-Turn Mower, 23hp Kohler Command

Kohler CV23-75592 Ignition & Electrical Parts Diagram

  • Title

1

Cub Cadet KH-54-755-15-S

Kit, Grass Screen

Note: (Includes 2, 3)

$

$

Currently unavailable

2

Cub Cadet KH-25-086-117-S

Screw, Flg Sems M4 x 0.7 x 25

$2.49

$

Usually ships in 2-5 days

0

3

Cub Cadet KH-24-113-18-S

Decal, Grass Screen

$

$

Not available

4

Cub Cadet KH-25-086-47-S

Bolt, Shoulder

$

$

Currently unavailable

5

Cub Cadet KH-24-157-12-S

Fan

$22.99

$

In Stock, only 2 left!

0

6

Cub Cadet KH-12-086-14-S

Screw, FLG M10X1.5X45

$

$

Currently unavailable

7

Cub Cadet KH-12-468-03-S

Washer, Flat 13/32"

$

$

Currently unavailable

8

Cub Cadet KH-X-42-15-S

Key, 3/16" x 5/8"

$

$

Currently unavailable

9

Cub Cadet KH-24-025-55-S

Flywheel

$

$

Not available

10

Cub Cadet KH-41-403-09-S

Rectifier-Regulator
(Superseded to KH-25-403-37-S)

$105.99

$

In Stock, Qty 6

0

11

Cub Cadet KH-25-086-157-S

Screw, Hex Flange Hi-Lo

$2.49

$

In Stock, Qty 5

0

12

Cub Cadet KH-236602-S

Connector (3 Contact)
(Superseded to KH-25-155-41-S)

$7.99

$

In Stock, Qty 11

0

13

Cub Cadet KH-12-132-02-S

Plug, Spark

$11.99

$

Usually ships in 2-5 days

0

14

Cub Cadet KH-237878-S

Kit, 15 Amp Stator

Note: (Includes KH-25 452 01-S)

$

$

Currently unavailable

15

Cub Cadet KH-M-548025-S

Screw, THD FRM M5 x 0.8 x 25
(Superseded to KH-25-086-402-S)

$2.49

$

In Stock, only 2 left!

0

16

Cub Cadet KH-235173-S

Clip, Cable

$

$

Currently unavailable

17

Cub Cadet KH-X-25-63-S

Washer, Flat, 1/4"

$

$

Currently unavailable

18

Cub Cadet KH-24-584-45-S

Kit, Module, Ignition (CDI Fixed)
(Superseded to KH-24-584-201-S)

$102.99

$

Usually ships in 3-6 days

0

19

Cub Cadet KH-M-545020-S

Screw, FLG THD FRM M5 x 0.8 x 20
(Superseded to KH-25-086-473-S)

$2.49

$

In Stock, Qty 17

0

20

Cub Cadet KH-277563-S

Connector (1 Contact)

$

$

Currently unavailable

Cub Cadet KH-210281-S

Clip

Note: (Not Shown)

$7.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-126-137-S

Bracket, Ground Strap
(Superseded to KH-24-518-12-S)

Note: (Not Shown)

$4.99

$

In Stock, only 1 left!

0

Cub Cadet KH-24-176-112-S

Harness, Wiring
(Superseded to KH-24-176-150-S)

Note: (Not Shown)

$44.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-176-41-S

Lead, Duplex

Note: (Not Shown)

$6.49

$

In Stock, only 2 left!

0

Cub Cadet KH-25-454-07-S

Tie

Note: (Not Shown)

$2.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-25-518-34-S

Lead

Note: (Not Shown)

$6.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-25-452-01-S

Terminal

Note: (Not Shown)

$5.49

$

Usually ships in 2-5 days

0
