ENFORCER 54 (53AH3AGT050) - Cub Cadet 54" Zero-Turn Mower, 23hp Kohler Command Kohler CV23-75592 Oil Pan & Lubrication Parts Diagram

54" Zero-Turn Mower, 23hp Kohler Command

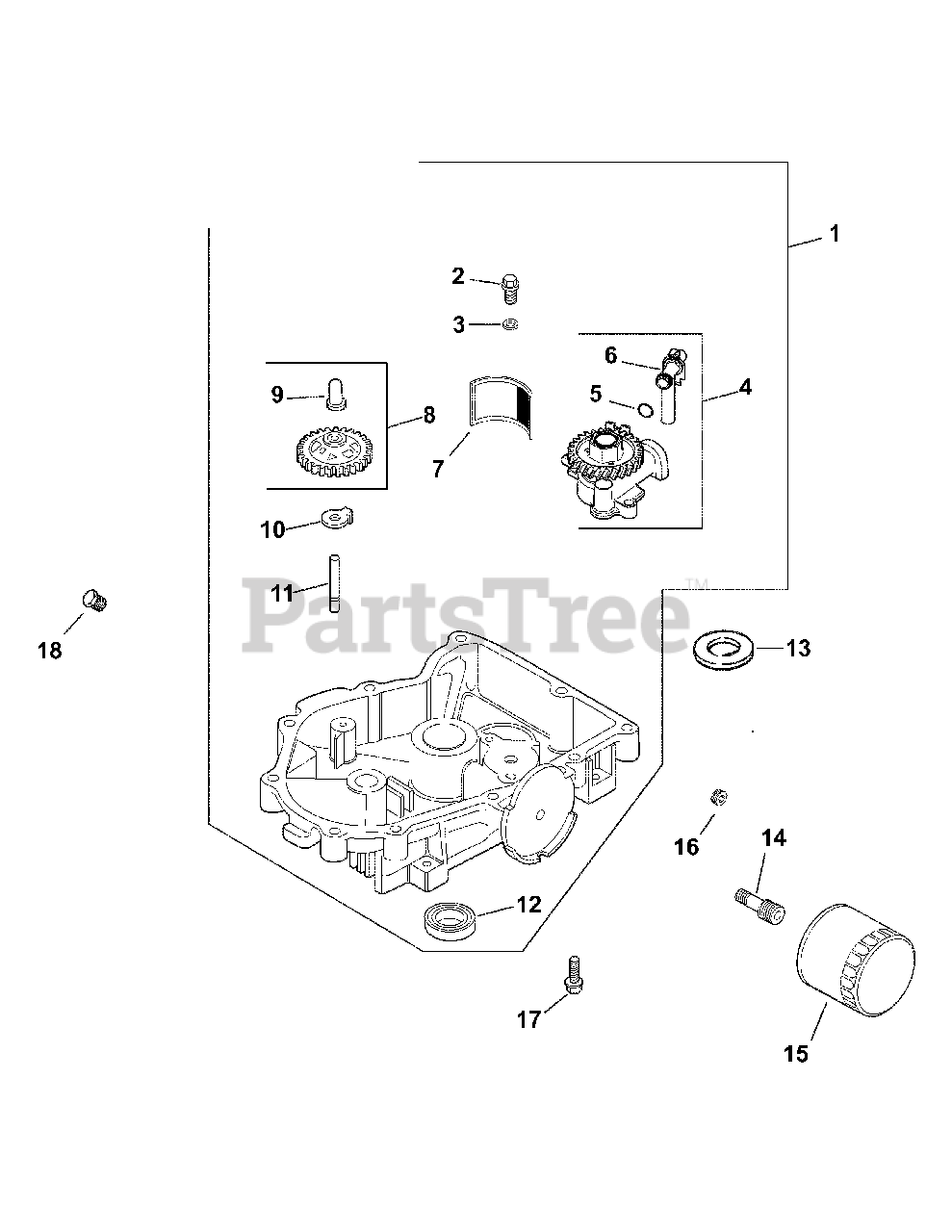

Kohler CV23-75592 Oil Pan & Lubrication Parts Diagram

  • Title

1

Cub Cadet KH-24-199-24-S

Pan, Oil Assembly
(Superseded to KH-24-199-35-S)

Note: (Includes Ref No. 2-12)

$337.99

$

In Stock, Qty 6

0

2

Cub Cadet KH-M-645025-S

Screw, SHD THD FRM M6 x 1.0 x 25
(Superseded to KH-25-086-395-S)

$2.49

$

In Stock, Qty 12

0

3

Cub Cadet KH-M-631005

Washer, Flat 6MM

$

$

Not available

4

Cub Cadet KH-24-393-51-S

Kit, Oil Pump Assembly
(Superseded to KH-24-393-53-S)

Note: (Includes Ref No. 5, 6)

$

$

Not available

5

Cub Cadet KH-24-153-01

O-Ring, Oil Pick-Up

$

$

Not available

6

Cub Cadet KH-24-381-11-S

Tube, Oil Pick Up

$

$

Not available

7

Cub Cadet KH-24-162-26-S

Screen, Oil

$17.99

$

In Stock, only 1 left!

0

8

Cub Cadet KH-24-043-12

Kit, Governor Gear w/ Pin

Note: (Includes Ref No. 9)

$

$

Not available

9

Cub Cadet KH-12-380-01

Pin, Governor Regulating

$

$

Not available

10

Cub Cadet KH-24-448-02-S

Tab, Locking

$2.49

$

In Stock, only 2 left!

0

11

Cub Cadet KH-12-144-02

Shaft, Governor Gear

$

$

Not available

12

Cub Cadet KH-25-032-06-S

Seal, Oil

$10.99

$

In Stock, Qty 20+

0

13

Cub Cadet KH-24-153-08-S

O-Ring

$6.49

$

Usually ships in 2-5 days

0

14

Cub Cadet KH-24-136-01

Nipple, Oil Filter
(Superseded to KH-24-136-09-S)

$6.49

$

Usually ships in 3-6 days

0

15

Cub Cadet KH-12-050-01-S

Filter, Oil

$13.99

$

In Stock, Qty 20+

0

16

Cub Cadet KH-25-139-62-S

Plug, Pipe CTSK 3/8"

$3.49

$

In Stock, only 2 left!

0

17

Cub Cadet KH-24-086-17-S

Screw, Flg M8 x 1.25 x 45

$2.49

$

In Stock, Qty 20+

0

18

Cub Cadet KH-52-139-02

Plug, Hd Pipe 3/8"

$

$

Not available
