ENXT 22875E (7800873) - Snapper 22" Walk-Behind Mower, 8.75hp Handle Control Group, RWD, NXT, EURO Parts Diagram

22" Walk-Behind Mower, 8.75hp

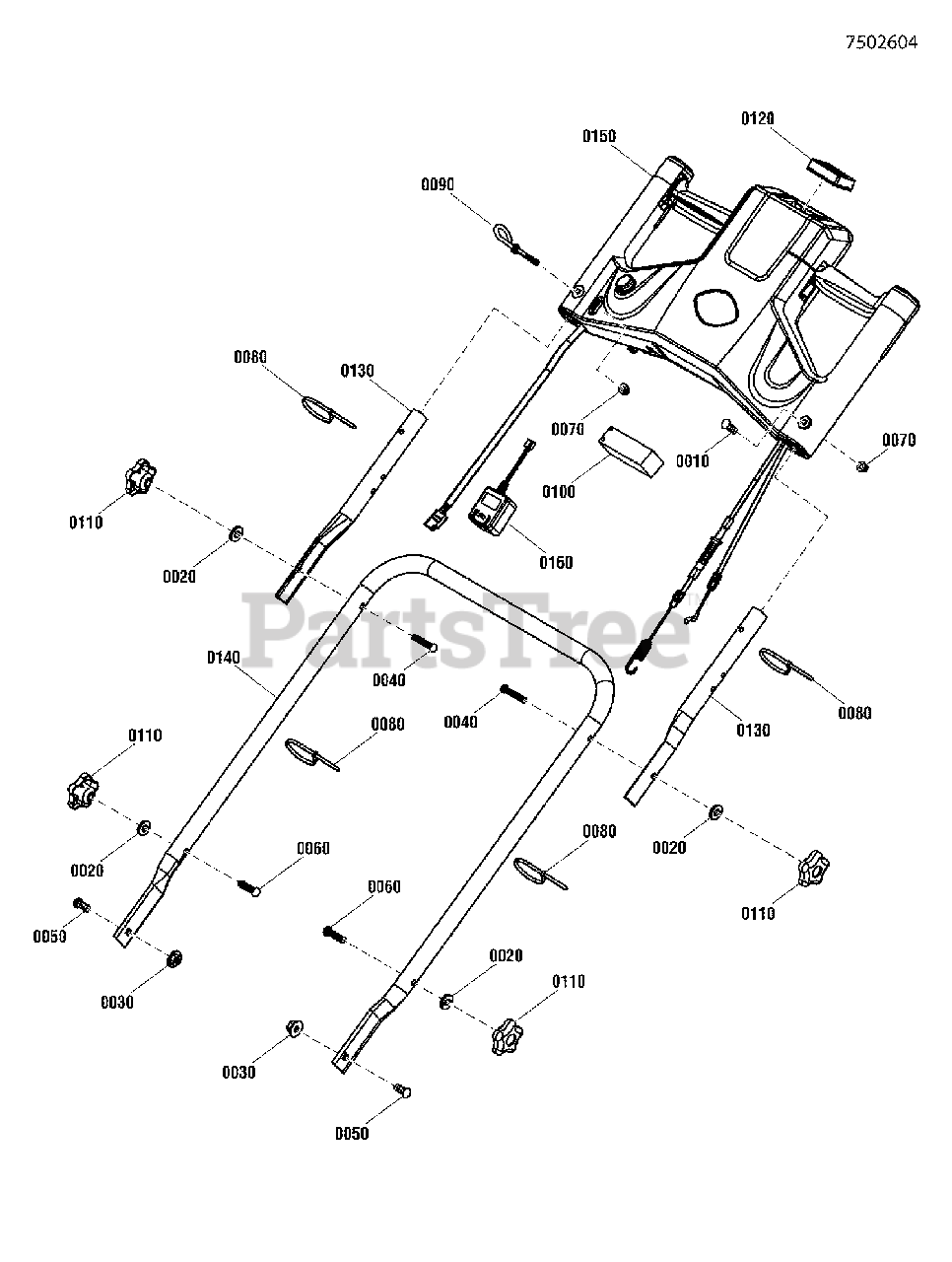

Handle Control Group, RWD, NXT, EURO Parts Diagram

  • Title

0010

Snapper 7090015YP

BOLT, 1/4-20 x 1-3/4 Round Head Square Neck, GR 2, YZ

$3.99

$

Usually ships in 2-12 days

0

0020

Snapper 7090391SM

WASHER, 5/16 Internal Tooth Lock, ZC/CL
(Superseded to 703587)

Note: (Was 7090391 or 80003683)

$4.49

$

In Stock, Qty 20+

0

0030

Snapper 704001

NUT, 5/16-18 Large Flange Center Lock, ZC/CL

Note: (Was 7090951 or 80005593)

$4.49

$

In Stock, Qty 7

0

0040

Snapper 703059

BOLT, 5/16-18 x 2 Curved Head Square Neck, GR 2, ZC/CL

Note: (Was 7091189 or 80003918)

$4.49

$

In Stock, Qty 12

0

0050

Snapper 703225

BOLT, Carriage, 5/16-18 x 3/4
(Superseded to 5025145X6SM)

Note: (Was 1931333, 723873 or 80003577)

$3.99

$

In Stock, Qty 20+

0

0060

Snapper 703175

BOLT, 5/16-18 x 1-3/4 Round Head Square Neck Carriage, ZC/CL

Note: (Was 1931338 or 80003731)

$3.99

$

In Stock, only 2 left!

0

0070

Snapper 703463

NUT, Nylock Flanged, 1/4-20
(Superseded to 5025391FS)

Note: (Was 2860694 or 80003520)

$4.49

$

In Stock, only 3 left!

0

0080

Snapper 7024649YP

WIRE TIE, 11 Inch Standard Black Nylon

$5.49

$

Usually ships in 2-12 days

0

0090

Snapper 7101410YP

GUIDE, Rope

$6.99

$

In Stock, only 1 left!

0

0100

Snapper 7102931YP

BATTERY, 1.3A/Hr *Non Spillable*
(Superseded to 707495)

$68.99

$

In Stock, only 2 left!

0

0110

Snapper 7105085YP

KNOB, Handle, 5-Prong (5/16-18 internal threads)

Note: (Was 7102990)

$3.99

$

In Stock, Qty 20+

0

0120

Snapper 7103774YP

METER, Service Indicator

$60.99

$

Usually ships in 2-12 days

0

0130

Snapper 7300649BHYP

HANDLE, Connecting, 21/22 WBM

$28.99

$

Usually ships in 2-12 days

0

0140

Snapper 7301189BHYP

HANDLE, Lower, WBM, RD

$187.99

$

Usually ships in 2-12 days

0

0150

Snapper 7502826YP

ASSEMBLY, REACT Control, RWD

$229.99

$

Usually ships in 2-12 days

0

0160

Snapper 7103119YP

CHARGER, Battery, 230V AC, 50 Hz, Output 12V DC, 750mA (Euro)

$44.99

$

In Stock, only 2 left!

0
