EP2500CX 1 ACH (EAHC) - Honda Generator, Made in China (SN: EAHC-1000001 - EAHC-9999999) CRANKSHAFT + PISTON Parts Diagram

Generator, Made in China

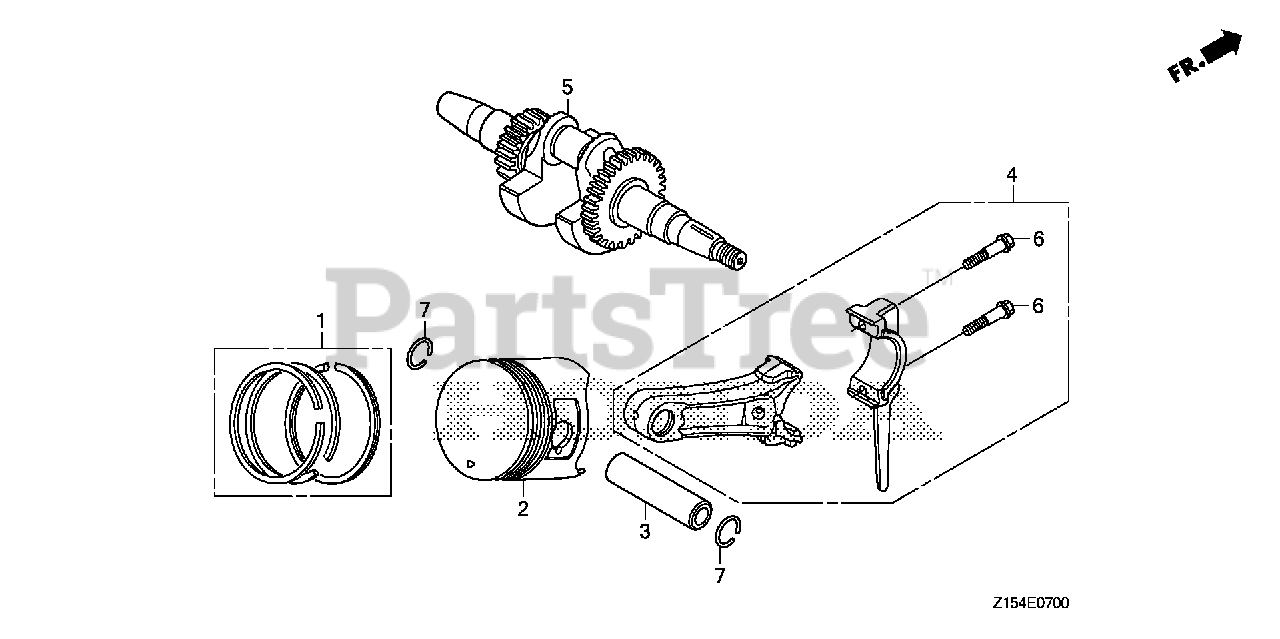

CRANKSHAFT + PISTON Parts Diagram

  • Title

1

Honda 13010-Z1T-701

SEE PART DETAILS - SUP; RING SET, PISTON (STD) (FUJIAN DONGYA MACHINERY)
(Superseded to 13010-Z4K-004)

$31.99

$

In Stock, only 3 left!

0

1

Honda 13010-Z4K-004

SEE PART DETAILS - PRI; RING SET, PISTON (STD) (TPR)

$31.99

$

In Stock, only 3 left!

0

1

Honda 13010-Z4P-003

RING SET, PISTON (STD) (RIKEN)

$37.99

$

Usually ships in 3-6 days

0

1

Honda 13011-Z4K-004

RING SET, PISTON (0.25) (TPR)

Note: (Optional).

$

$

Not available

1

Honda 13011-Z4P-003

RING SET, PISTON (0.25) (RIKEN)

Note: (Optional).

$39.99

$

Usually ships in 3-6 days

0

1

Honda 13012-Z4K-004

RING SET, PISTON (0.50) (TPR)

Note: (Optional).

$

$

Not available

1

Honda 13012-Z4P-003

RING SET, PISTON (0.50) (RIKEN)

Note: (Optional).

$39.99

$

Usually ships in 3-6 days

0

1

Honda 13013-Z4K-004

RING SET, PISTON (0.75) (TPR)

Note: (Optional).

$

$

Not available

1

Honda 13013-Z4P-003

RING SET, PISTON (0.75) (RIKEN)

Note: (Optional).

$30.99

$

Usually ships in 3-6 days

0

2

Honda 13101-ZH8-020

PISTON (STD)

$48.99

$

Usually ships in 3-6 days

0

2

Honda 13101-Z1T-010

PISTON (STD) (JIALING-HONDA)

$48.99

$

In Stock, only 1 left!

0

2

Honda 13102-ZH8-020

PISTON (0.25)

Note: (Optional).

$

$

Not available

2

Honda 13103-ZH8-020

PISTON (0.50)

Note: (Optional).

$

$

Not available

2

Honda 13104-ZH8-020

PISTON (0.75)

Note: (Optional).

$

$

Not available

3

Honda 13111-Z1T-000

PIN, PISTON

$13.99

$

In Stock, only 1 left!

0

4

Honda 13200-Z0T-800

SEE PART DETAILS - PRI; ROD ASSY., CONNECTING (TH)
(Superseded to 13200-Z4V-900)

$14.99

$

In Stock, only 2 left!

0

5

Honda 13310-ZH8-F00

CRANKSHAFT

Note: Use up to Engine SN 2539826.

$

$

Not available

5

Honda 13310-Z1T-F00

CRANKSHAFT

Note: Use from Engine SN 2539827.

$296.99

$

Usually ships in 3-6 days

0

6

Honda 90001-ZE1-000

BOLT, CONNECTING ROD

$4.49

$

In Stock, only 3 left!

0

7

Honda 90551-ZE1-000

CLIP, PISTON PIN (18MM)

$1.99

$

In Stock, Qty 20+

0
