EP2500CX 1 AH (EAHC) - Honda Generator, Made in China (SN: EAHC-1000001 - EAHC-9999999) FRAME Parts Diagram

Generator, Made in China

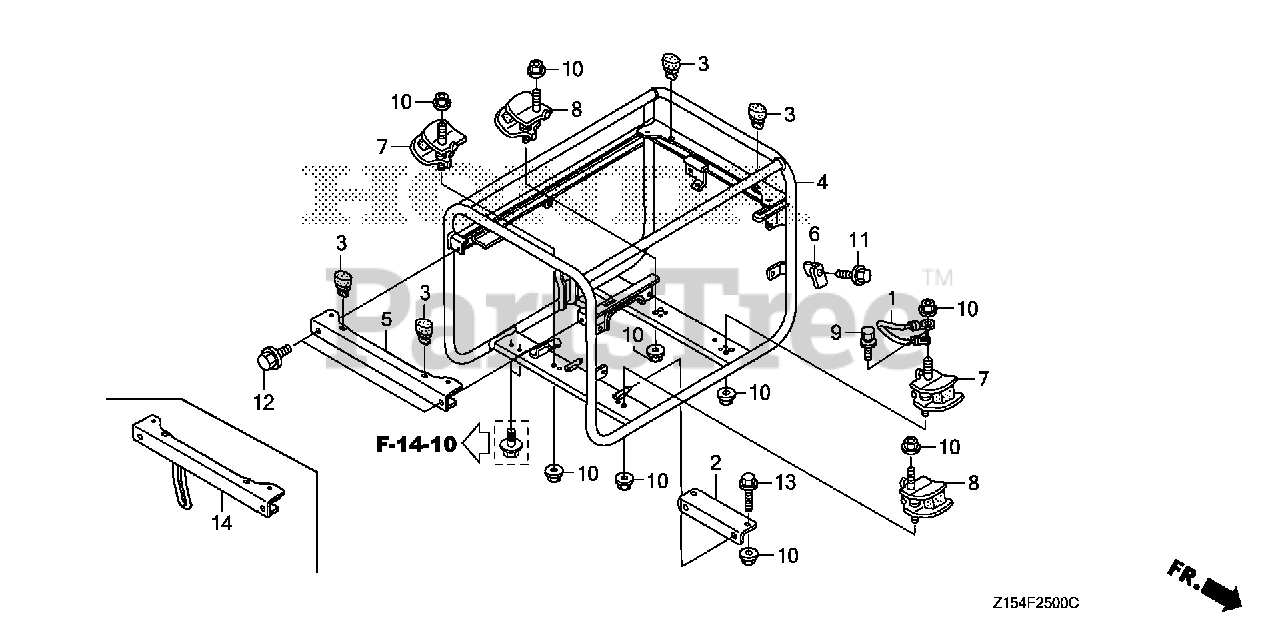

FRAME Parts Diagram

  • Title

1

Honda 32610-Z15-A80

CABLE, SUB-GROUND

$5.99

$

Usually ships in 3-6 days

0

2

Honda 50138-Z15-000

BRACKET, STOPPER

$26.99

$

Usually ships in 3-6 days

0

3

Honda 50153-ZR6-000

RUBBER, FUEL TANK MOUNTING

$5.99

$

Usually ships in 3-6 days

0

4

Honda 50310-Z15-A30ZA

FRAME *NH1* (CX) (BLACK)

$344.99

$

Usually ships in 3-6 days

0

5

Honda 50315-Z15-R60ZA

FRAME, SIDE *NH1* (CX) (BLACK)

Note: Use up to Frame SN 1181385.

$37.99

$

Usually ships in 3-6 days

0

6

Honda 50339-ZR4-T60

PLATE, GUARD

$5.49

$

Usually ships in 3-6 days

0

7

Honda 68326-Z15-B70

RUBBER, FR. (LOWER)

$23.99

$

Usually ships in 3-6 days

0

8

Honda 68327-Z15-B70

RUBBER, RR. (LOWER)

$23.99

$

Usually ships in 3-6 days

0

9

Honda 90148-SE0-003

BOLT, GROUND (6X16) (WASHER 12.5MM) (ZN)

$10.99

$

Usually ships in 3-6 days

0

10

Honda 94050-08000

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

11

Honda 95701-06012-00

BOLT, FLANGE (6X12)

$1.99

$

In Stock, Qty 20+

0

12

Honda 95701-08016-07

BOLT, FLANGE (8X16)

$2.49

$

In Stock, Qty 5

0

13

Honda 95701-08035-00

BOLT, FLANGE (8X35)

$2.99

$

In Stock, only 3 left!

0

14

Honda 50315-Z15-A30ZA

FRAME, SIDE *NH1* (CX) (BLACK)

Note: Use from Frame SN 1181386.

$40.99

$

Usually ships in 3-6 days

0
