ER1500 A (G41) - Honda Generator, Made in Japan (SN: G41-1018501 - G41-1071999) ER1500 CONTROL BOX + GENERATOR Parts Diagram

Generator, Made in Japan

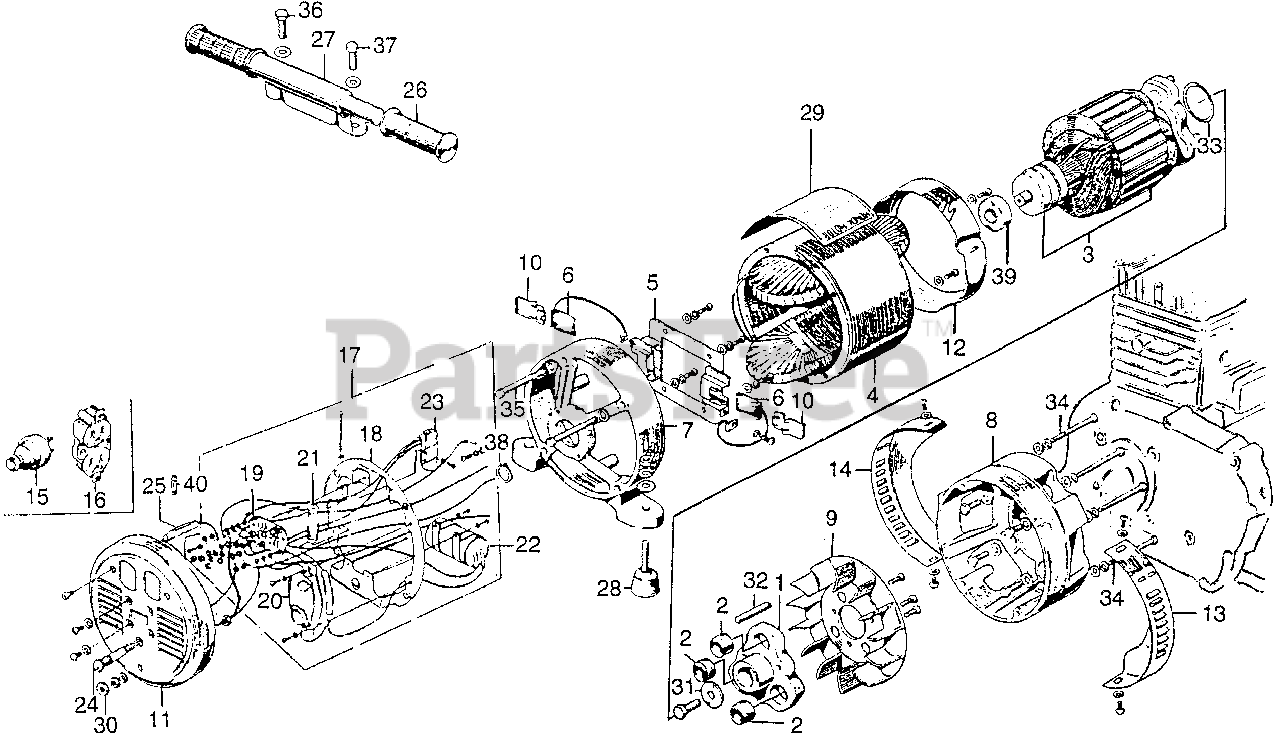

ER1500 CONTROL BOX + GENERATOR Parts Diagram

  • Title

1

Honda 13341-842-000

FLANGE, COUPLING A

$

$

Not available

2

Honda 13345-842-010

RUBBER, COUPLING

$

$

Not available

3

Honda 31004-842-673

ROTOR ASSY.

$

$

Not available

4

Honda 31005-842-671

STATOR ASSY.

$

$

Not available

5

Honda 31106-842-168

RIG PLATE ASSY.

$

$

Not available

6

Honda 31107-842-168

BRUSH (NOT AVAILABLE)

$

$

Not available

7

Honda 31108-854-158

COVER, END

$

$

Not available

8

Honda 31109-854-158

COVER, FR.

$

$

Not available

9

Honda 31111-842-158

FAN, GENERATOR

$

$

Not available

10

Honda 31112-842-168

SPRING, BRUSH (NOT AVAILABLE)

$

$

Currently unavailable

11

Honda 31113-854-158

COVER, CLEANER

$

$

Not available

12

Honda 31129-842-158

PLATE, GUIDE (NOT AVAILABLE)

$

$

Currently unavailable

13

Honda 31181-854-158H

PROTECTOR A, GENERATOR FAN *R8* (BRIGHT RED)

$

$

Not available

14

Honda 31182-854-158H

PROTECTOR B, GENERATOR FAN *R8* (BRIGHT RED)

$

$

Not available

15

Honda 32310-812-640

PLUG ASSY., RECEPTACLE

$8.99

$

Usually ships in 3-6 days

0

16

Honda 32333-880-680

SEE PART DETAILS - PRI; RECEPTACLE (15A-125V)

$72.99

$

Usually ships in 3-6 days

0

17

Honda 32350-854-168

TRANSISTOR REGULATOR ASSY.

$

$

Not available

18

Honda 32351-854-168

HOLDER

$

$

Not available

19

Honda 32352-854-158

DIODE ASSY.

$

$

Not available

20

Honda 32353-854-168

CONTROL ASSY.

$

$

Not available

21

Honda 32354-854-168

RESISTOR ASSY.

$

$

Not available

22

Honda 32355-854-168

CONDENSER ASSY. A (NOT AVAILABLE)

$

$

Currently unavailable

23

Honda 32356-854-168

CONDENSER ASSY. B

$

$

Not available

24

Honda 37561-854-730

LAMP, PILOT

$

$

Not available

25

Honda 38211-842-159

HOLDER, FUSE

$

$

Not available

26

Honda 95011-12200

SEE PART DETAILS - PRI; GRIP B, L. HANDLEBAR

$7.49

$

Usually ships in 3-6 days

0

27

Honda 68110-848-940

HANDLE, CARRYING

$

$

Not available

28

Honda 68311-842-000

RUBBER, GENERATOR (LOWER) (NOT AVAILABLE)

$

$

Not available

29

Honda 87551-854-730

PLATE, CAUTION (ATTACHED TO STATOR)

$

$

Not available

30

Honda 90381-812-710

NUT, SPECIAL (6MM)

$2.49

$

In Stock, only 1 left!

0

31

Honda 90473-842-000

WASHER (8MM)

$1.99

$

In Stock, Qty 5

0

32

Honda 90741-889-810

SEE PART DETAILS - PRI; KEY (7X7X33)

$8.99

$

Usually ships in 3-6 days

0

33

Honda 91301-428-003

O-RING (35.5X3) (NOK)

$2.99

$

In Stock, only 1 left!

0

34

Honda 92101-06055-0A

BOLT, HEX. (6X55)

$2.49

$

Usually ships in 3-6 days

0

35

Honda 92101-06055-0A

BOLT, HEX. (6X55)

$2.49

$

Usually ships in 3-6 days

0

36

Honda 92101-08014-0A

BOLT, HEX. (8X14)

$1.99

$

Usually ships in 3-6 days

0

37

Honda 92101-08022-0A

BOLT, HEX. (8X22)

$

$

Currently unavailable

38

Honda 94510-17000

CIRCLIP (OUTER) (17MM)

$1.49

$

Usually ships in 3-6 days

0

39

Honda 96150-62030-10

BEARING, RADIAL BALL (6203UU)

$21.99

$

In Stock, only 2 left!

0

40

Honda 98200-11500

FUSE A (15A)

$1.49

$

Usually ships in 3-6 days

0
