ER400 A (GE300) - Honda Generator, Made in Japan (SN: GE300-1175814 - GE300-2147285) ALTERNATOR + POINTS Parts Diagram

Generator, Made in Japan

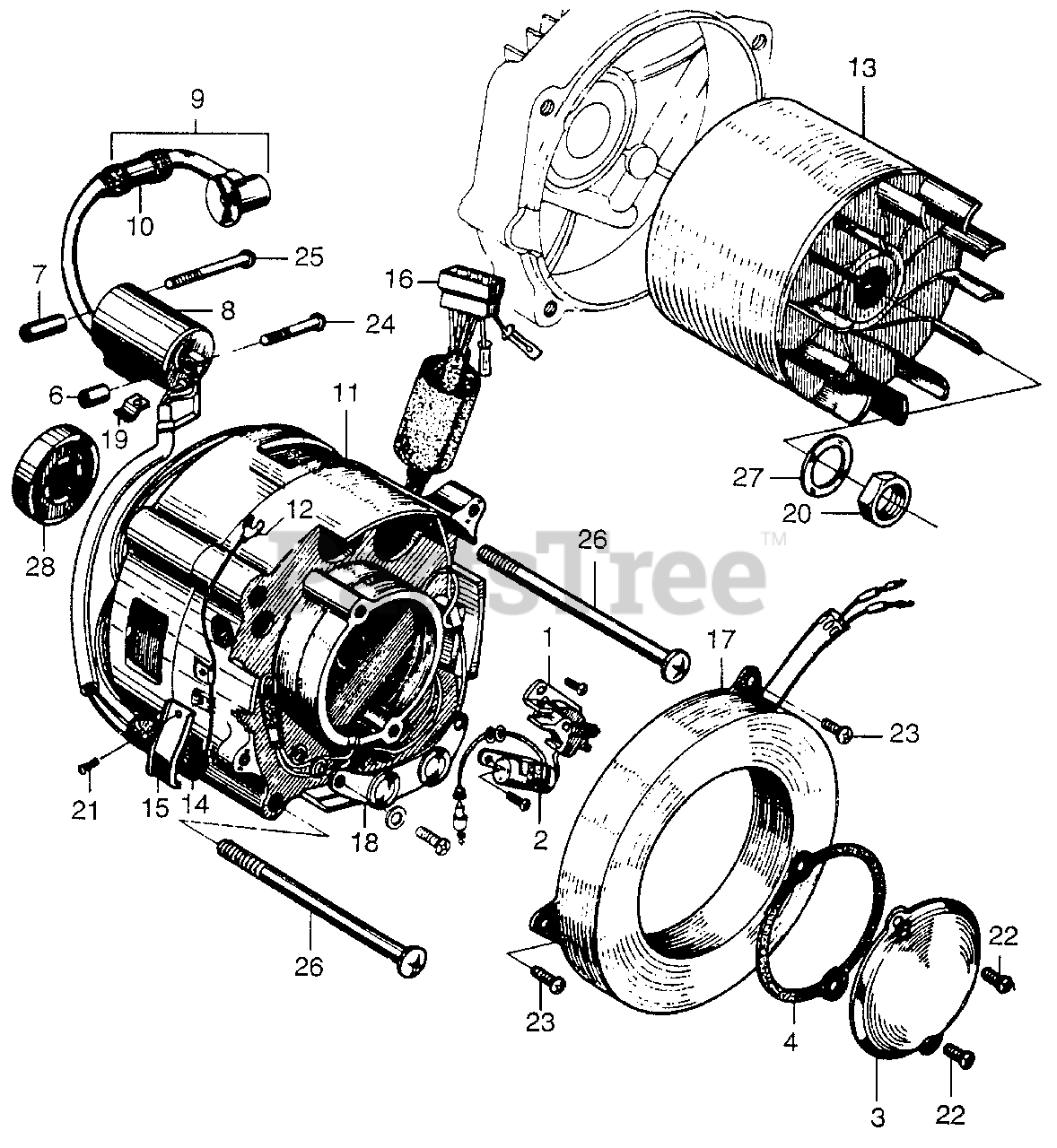

ALTERNATOR + POINTS Parts Diagram

  • Title

1

Honda 30202-836-003

SEE PART DETAILS - PRI; POINTS ASSY.

$35.99

$

Usually ships in 3-6 days

0

2

Honda 30203-836-013

SEE PART DETAILS - PRI; CONDENSER ASSY. (NOT AVAILABLE)

$

$

Not available

3

Honda 30211-812-010

COVER, POINTS

$

$

Not available

4

Honda 30214-812-000

GASKET, POINTS COVER

$

$

Currently unavailable

6

Honda 30531-812-000

COLLAR A, IGNITION DISTANCE

$

$

Currently unavailable

7

Honda 30532-812-000

COLLAR B, IGNITION DISTANCE

$

$

Not available

8

Honda 30500-812-013

SEE PART DETAILS - PRI; COIL ASSY., A.C. IGNITION (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 30615-812-010

SEE PART DETAILS - PRI; TERMINAL ASSY., IGNITION (NOT AVAILABLE)

$

$

Currently unavailable

10

Honda 30700-812-010

SUPPRESSOR, NOISE (NOT AVAILABLE)

$

$

Currently unavailable

11

Honda 31150-836-701

SEE PART DETAILS - PRI; STATOR ASSY., ALTERNATOR

$

$

Not available

12

Honda 31151-812-000

TERMINAL, D.C. (5MM)

$

$

Not available

13

Honda 31160-836-003

ROTOR, ALTERNATOR

$

$

Not available

14

Honda 31156-836-000

SEE PART DETAILS - PRI; TUBE A, RUBBER

$

$

Not available

15

Honda 31157-812-000

CLAMP, JOINT

Note: Use up to Frame SN 2000000.

$

$

Not available

15

Honda 31157-836-000

CLAMP, JOINT

Note: Use from Frame SN 2000001.

$

$

Not available

16

Honda 31288-849-158

CONNECTOR (4P)

$

$

Currently unavailable

17

Honda 31170-836-670

REACTOR

$

$

Not available

18

Honda 31700-836-003

RECTIFIER, SILICON

Note: Use up to Frame SN 2000000.

$

$

Not available

18

Honda 31700-836-023

SEE PART DETAILS - PRI; RECTIFIER, SILICON (NOT AVAILABLE)

Note: Use from Frame SN 2000001.

$

$

Currently unavailable

19

Honda 32901-812-000

CLAMP, WIRE

Note: Use up to Frame SN 2000000.

$

$

Not available

19

Honda 32901-921-000

CLAMP

Note: Use from Frame SN 2000001.

$

$

Not available

20

Honda 90201-836-000

NUT, SPECIAL (14MM)

$2.49

$

Usually ships in 3-6 days

0

21

Honda 93500-04006-0A

SEE PART DETAILS - PRI; SCREW, PAN (4X6)

$0.99

$

Usually ships in 3-6 days

0

22

Honda 93500-04008-0A

SEE PART DETAILS - PRI; SCREW, PAN (4X8)

$1.49

$

In Stock, only 4 left!

0

23

Honda 93500-05012-0A

SEE PART DETAILS - PRI; SCREW, PAN (5X12)

$1.49

$

In Stock, Qty 8

0

24

Honda 93500-05028-0A

SCREW, PAN (5X28)

$1.49

$

In Stock, Qty 5

0

25

Honda 93500-05040-0A

SCREW, PAN (5X40)

$0.99

$

Usually ships in 3-6 days

0

26

Honda 93500-06100

SEE PART DETAILS - PRI; SCREW, PAN (6X100) (NOT AVAILABLE)

$

$

Currently unavailable

27

Honda 94102-14000

WASHER, FLAT (14MM)

$0.99

$

Usually ships in 3-6 days

0

28

Honda 96150-60010-10

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6001UU)

$28.99

$

Usually ships in 3-6 days

0
