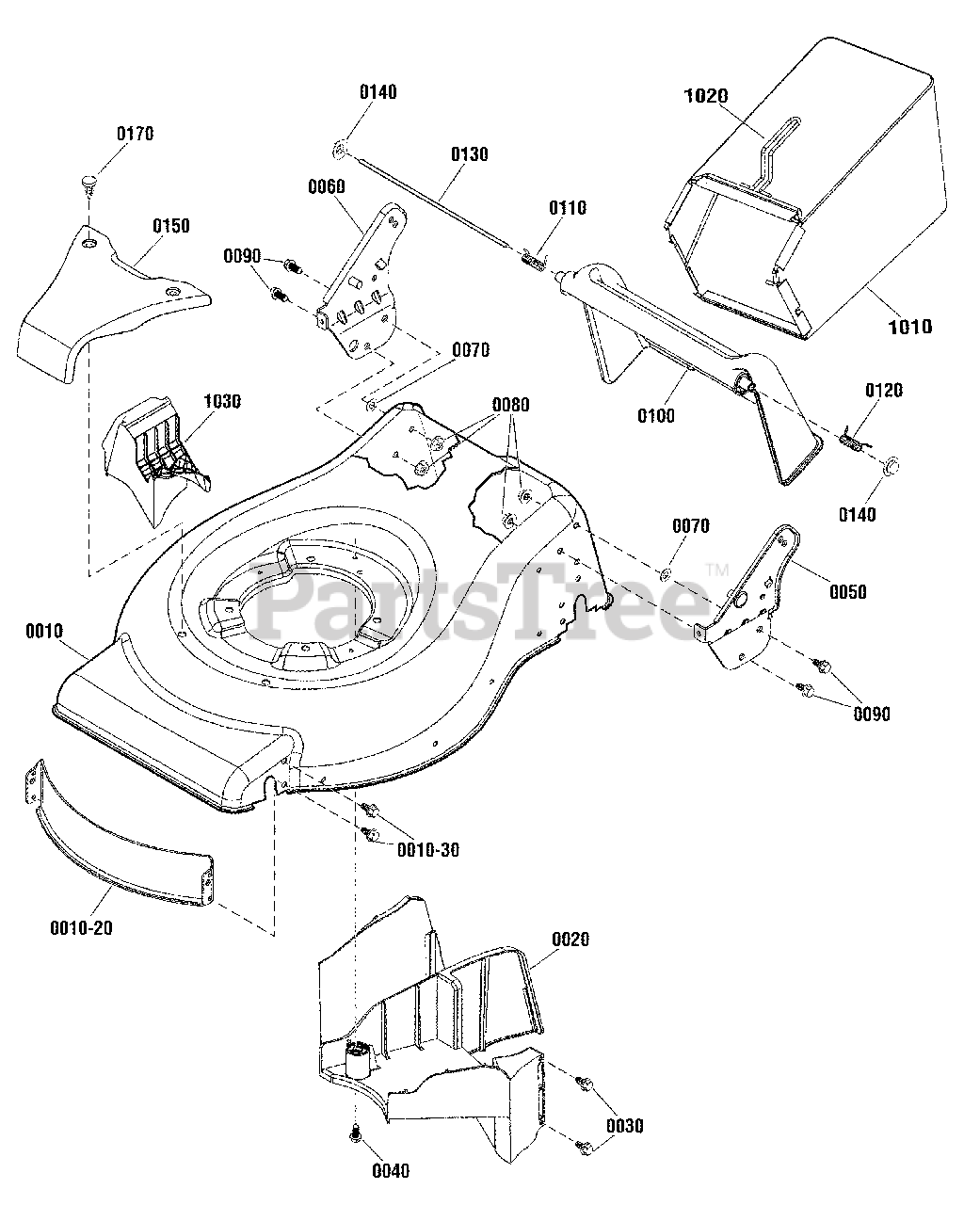

ERDP 16575EX (881584) - Snapper 16" Walk-Behind Mower Deck Group Parts Diagram

16" Walk-Behind Mower

Deck Group Parts Diagram

  • Title

0010

Snapper 881121D

MOWER HOUSING
(Superseded to 881121DYP)

$471.99

$

Usually ships in 2-12 days

0

0010-20

Snapper 880794

BAFFLE, Front

Note: (Included with Ref. 0010)

$

$

Not available

0010-30

Snapper 880664

SCREW, Pan Head, Taptite, 1/4-20 x 1/2
(Superseded to 880664YP)

Note: (Included with Ref. 0010)

$4.49

$

Usually ships in 2-12 days

0

0020

Snapper 880793

BAFFLE, Rear
(Superseded to 880793YP)

$43.99

$

Usually ships in 2-12 days

0

0030

Snapper 880804

SCREW, Hi-Lo, 1/4 x 3/4
(Superseded to 880804YP)

$3.99

$

Usually ships in 2-12 days

0

0040

Snapper 880664

SCREW, Pan Head, Taptite, 1/4-20 x 1/2
(Superseded to 880664YP)

$4.49

$

Usually ships in 2-12 days

0

0050

Snapper 880951A

BRACKET, Handle, LH
(Superseded to 880951AYP)

$20.99

$

Usually ships in 2-12 days

0

0060

Snapper 880950A

BRACKET, Handle, RH
(Superseded to 880950AYP)

$20.99

$

Usually ships in 2-12 days

0

0070

Snapper 880607

WASHER, Flat, .34ID x .69OD
(Superseded to 880607YP)

$3.99

$

Usually ships in 2-12 days

0

0080

Snapper 1739305

NUT, Hex Flange, ESNA, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0090

Snapper 880748

SCREW, Hex Washer Head x
(Superseded to 880748YP)

$3.99

$

Usually ships in 2-12 days

0

0100

Snapper 880661

DOOR, Rear
(Superseded to 880661YP)

$32.99

$

Usually ships in 2-12 days

0

0110

Snapper 880942

SPRING, Torsion, RH
(Superseded to 880942YP)

$4.49

$

Usually ships in 2-12 days

0

0120

Snapper 880943

SPRING, Torsion, LH
(Superseded to 880943YP)

$4.49

$

Usually ships in 2-12 days

0

0130

Snapper 880213

ROD, Rear Door
(Superseded to 880213YP)

$4.99

$

Usually ships in 2-12 days

0

0140

Snapper 7091020

NUT, Push, 1/4
(Superseded to 7091020YP)

$4.49

$

In Stock, Qty 20+

0

0150

Snapper 881736

COVER, Heat Shield
(Superseded to 881736YP)

$17.99

$

Usually ships in 2-12 days

0

0170

Snapper 723182

FASTENER, Heat Shield
(Superseded to 309235MA)

$3.99

$

Usually ships in 2-12 days

0

1010

Snapper 880947

BAG
(Superseded to 880947YP)

$71.99

$

Usually ships in 2-12 days

0

1020

Snapper 880944Z

FRAME, Bag
(Superseded to 880944ZYP)

$82.99

$

Usually ships in 2-12 days

0

1030

Snapper 880914

MULCH PLUG
(Superseded to 880914YP)

$53.99

$

Usually ships in 2-12 days
