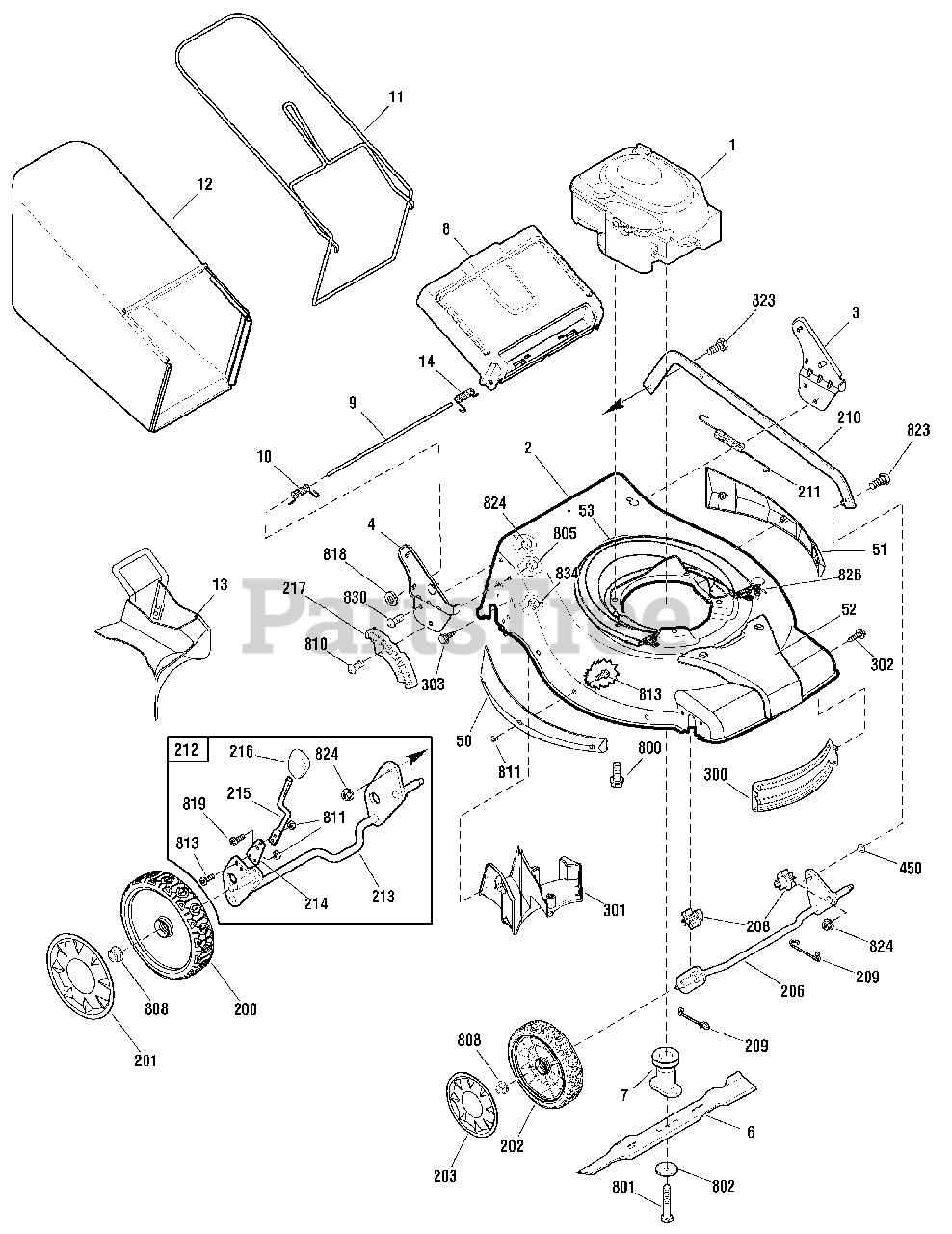

ERDS 19700HW (881037) - Snapper 19" Walk-Behind Mower Deck & Engine Group Parts Diagram

19" Walk-Behind Mower

Deck & Engine Group Parts Diagram

  • Title

1

Snapper 100602-2137-B8

* ENGINE, B&S 700 Series DOV, EU

$

$

Currently unavailable

2

Snapper 881117D

MOWER HOUSING
(Superseded to 881117DYP)

$199.99

$

Usually ships in 2-12 days

0

3

Snapper 880951A

BRACKET ASSEMBLY, Left Handle
(Superseded to 880951AYP)

$20.99

$

Usually ships in 2-12 days

0

4

Snapper 880950A

BRACKET ASSEMBLY, Right Handle
(Superseded to 880950AYP)

$20.99

$

Usually ships in 2-12 days

0

6

Snapper 880638

BLADE, 19"
(Superseded to 880638BZYP)

$26.99

$

Usually ships in 2-12 days

0

7

Snapper 880567

BLADE ADAPTER ASSEMBLY
(Superseded to 880567YP)

$31.99

$

In Stock, only 1 left!

0

8

Snapper 880671

DOOR, Rear
(Superseded to 880671YP)

$42.99

$

Usually ships in 2-12 days

0

9

Snapper 880214

ROD, Rear Door
(Superseded to 880214YP)

$10.99

$

Usually ships in 2-12 days

0

10

Snapper 880942

SPRING, Torsion Rear Door, Right
(Superseded to 880942YP)

$4.49

$

Usually ships in 2-12 days

0

11

Snapper 880963Z

FRAME ASSEMBLY
(Superseded to 880963ZYP)

$72.99

$

In Stock, only 1 left!

0

12

Snapper 880965

BAG ASSEMBLY
(Superseded to 880965YP)

$67.99

$

Usually ships in 2-12 days

0

13

Snapper 880909

MULCH PLUG
(Superseded to 880909YP)

$43.99

$

Usually ships in 2-12 days

0

14

Snapper 880943

SPRING, Torsion Rear Door, Left
(Superseded to 880943YP)

$4.49

$

Usually ships in 2-12 days

0

50

Snapper 881106

SIDE GUARD, Right
(Superseded to 881106YP)

$19.99

$

Usually ships in 2-12 days

0

51

Snapper 881109

SIDE GUARD, Left
(Superseded to 881109YP)

$14.99

$

Usually ships in 2-12 days

0

52

Snapper 880667

HOUSING COVER, Front
(Superseded to 880667YP)

$9.49

$

Usually ships in 2-12 days

0

53

Snapper 881047

HOUSING COVER, Rear
(Superseded to 881047YP)

$5.99

$

Usually ships in 2-12 days

0

200

Snapper 880696

WHEEL, Rear
(Superseded to 880696YP)

$43.99

$

Usually ships in 2-12 days

0

201

Snapper 880700

HUBCAP, Rear
(Superseded to 880700YP)

$12.99

$

Usually ships in 2-12 days

0

202

Snapper 880715

WHEEL ASSEMBLY, Front, 200MM 5 Spoke Tread II SI
(Superseded to 880715YP)

$35.99

$

Usually ships in 2-12 days

0

203

Snapper 880701

HUBCAP, Front
(Superseded to 880701YP)

$13.99

$

Usually ships in 2-12 days

0

206

Snapper 880550

CROSSBAR ASSEMBLY, Front
(Superseded to 880550YP)

$38.99

$

Usually ships in 2-12 days

0

208

Snapper 880050

BUSHING, Front Crossbar
(Superseded to 880050YP)

$4.99

$

Usually ships in 2-12 days

0

209

Snapper 881163

SPRING, Clip Crossbar
(Superseded to 881163YP)

Note: (Was 880057)

$8.99

$

In Stock, Qty 7

0

210

Snapper 881174D

LINK, Single Lever

$

$

Currently unavailable

211

Snapper 880052

SPRING, Extension
(Superseded to 880052YP)

$6.99

$

Usually ships in 2-12 days

0

212

CROSSBAR ASSEMBLY, Rear (Not Available)

$

$

Not available

213

Snapper 880855BI

REAR CROSSBAR
(Superseded to 880855YP)

$60.99

$

Usually ships in 2-12 days

0

214

Snapper 880642

SPRING, Adjuster
(Superseded to 880642YP)

$5.99

$

In Stock, only 2 left!

0

215

Snapper 880540

LEVER, Height Adjustment
(Superseded to 880540YP)

$7.99

$

In Stock, only 2 left!

0

216

Snapper 880325

KNOB, Adjuster
(Superseded to 880325YP)

$5.99

$

Usually ships in 2-12 days

0

217

Snapper 880959

BRACKET, Height Adjuster
(Superseded to 880959YP)

$6.49

$

Usually ships in 2-12 days

0

300

Snapper 880784

BAFFLE, Front
(Superseded to 880784BMYP)

$46.99

$

Usually ships in 2-12 days

0

301

Snapper 880785

BAFFLE, Rear
(Superseded to 880785YP)

$64.99

$

Usually ships in 2-12 days

0

302

Snapper 880664

SCREW, 1/4-20 x 1/2
(Superseded to 880664YP)

$3.99

$

Usually ships in 2-12 days

0

303

Snapper 880804

SCREW, 1/4-15 x 5/8
(Superseded to 880804YP)

$3.99

$

Usually ships in 2-12 days

0

450

Snapper 7026257

WASHER, Wave
(Superseded to 7026257MA)

$4.49

$

In Stock, only 2 left!

0

800

Snapper 720044

SCREW, Hex Head, 3/8-16 x 1
(Superseded to 0025X6MA)

$5.49

$

Usually ships in 2-12 days

0

801

Snapper 880034

BOLT, Blade, 3/8-24 x 2
(Superseded to 880034YP)

$4.49

$

Usually ships in 2-12 days

0

802

Snapper 721890

WASHER, Belleville
(Superseded to 1101989MA)

$5.49

$

Usually ships in 2-12 days

0

805

Snapper 880020

NUT, Nylock, M8 x 1-1/4
(Superseded to 880020YP)

$3.99

$

Usually ships in 2-12 days

0

808

Snapper 720142

NUT, Flange, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

810

Snapper 880323

BOLT, Hex Key Head
(Superseded to 880323YP)

$3.99

$

In Stock, only 4 left!

0

811

Snapper 880428

NUT, Nylock
(Superseded to 880428YP)

$3.99

$

Usually ships in 2-12 days

0

813

Snapper 880339

SCREW, Torx Head, M5 x .8 x 14mm
(Superseded to 880339YP)

$3.99

$

In Stock, only 4 left!

0

818

Snapper 7091020

PUSHNUT, 1/4
(Superseded to 7091020YP)

$4.49

$

In Stock, Qty 20+

0

819

Snapper 880577

SCREW, Torx Head, M5 x .8 x 12.5mm
(Superseded to 880577YP)

$3.99

$

In Stock, only 4 left!

0

823

Snapper 880651

BOLT, Shoulder, 5/16-18 x 1
(Superseded to 880651YP)

$3.99

$

Usually ships in 2-12 days

0

824

Snapper 720145

Nut, Flange, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

826

Snapper 880456

SCREW, 1/4-20 x 7/8
(Superseded to 880456YP)

$3.49

$

Usually ships in 2-12 days

0

830

Snapper 727291

SCREW , 5/16-18 x 3/4
(Superseded to 48901MA)

$3.99

$

Usually ships in 2-12 days

0

1000

Snapper 700277

DECAL KIT
(Superseded to 700277YP)

$24.99

$

Usually ships in 2-12 days

0
