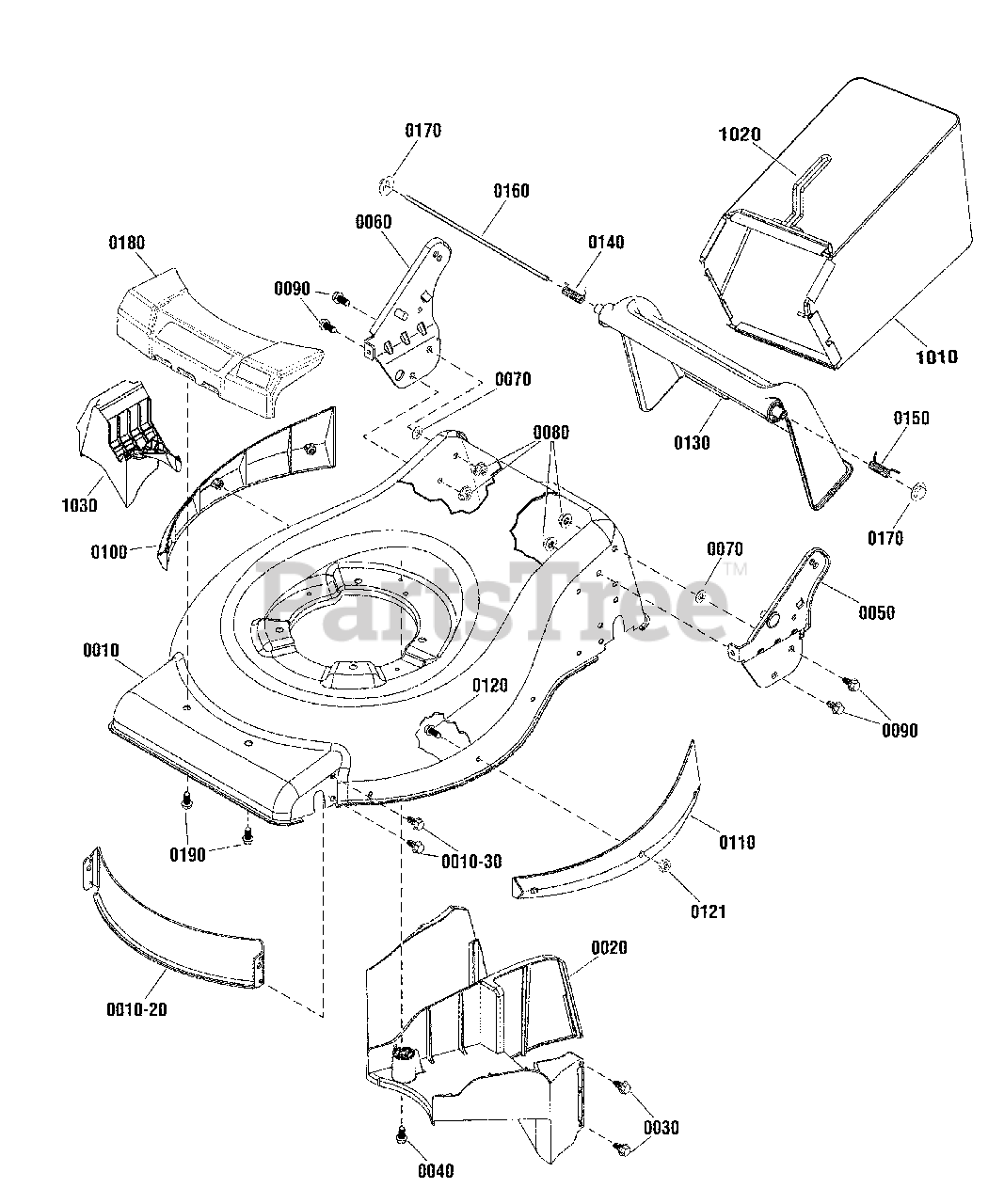

ERDV 19675EX (881586) - Snapper 19" Walk-Behind Mower Deck Group Parts Diagram

19" Walk-Behind Mower

Deck Group Parts Diagram

  • Title

0010

Snapper 881591D

MOWER HOUSING

$

$

Not available

0010-20

Snapper 880784

BAFFLE, Front, 19"
(Superseded to 880784BMYP)

$46.99

$

Usually ships in 2-12 days

0

0010-30

Snapper 880664

SCREW, Pan Head, Taptite, 1/4-20 x 1/2
(Superseded to 880664YP)

$3.99

$

Usually ships in 2-12 days

0

0020

Snapper 880785

BAFFLE, Rear
(Superseded to 880785YP)

$64.99

$

Usually ships in 2-12 days

0

0030

Snapper 880804

SCREW, Hi-Lo, 1/4 x 3/4
(Superseded to 880804YP)

$3.99

$

Usually ships in 2-12 days

0

0040

Snapper 880664

SCREW, Pan Head, Taptite, 1/4-20 x 1/2
(Superseded to 880664YP)

$3.99

$

Usually ships in 2-12 days

0

0050

Snapper 880951A

BRACKET, Handle, LH
(Superseded to 880951AYP)

$20.99

$

Usually ships in 2-12 days

0

0060

Snapper 880950A

BRACKET, Handle, RH
(Superseded to 880950AYP)

$20.99

$

Usually ships in 2-12 days

0

0070

Snapper 880607

WASHER, Flat, .34 ID x .69 OD
(Superseded to 880607YP)

$3.99

$

Usually ships in 2-12 days

0

0080

Snapper 1739305

NUT, Hex Flange, ESNA, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 19

0

0090

Snapper 880748

SCREW, Hex Washer, 5/16-18 x 1/2
(Superseded to 880748YP)

$3.99

$

Usually ships in 2-12 days

0

0100

Snapper 881106

GUARD, Side, RH
(Superseded to 881106YP)

$19.99

$

Usually ships in 2-12 days

0

0110

Snapper 881109

GUARD, Side, LH
(Superseded to 881109YP)

$14.99

$

Usually ships in 2-12 days

0

0120

Snapper 880339

SCREW, Torx Head, M5 x .8 x 14mm
(Superseded to 880339YP)

$3.99

$

In Stock, only 4 left!

0

0121

Snapper 880428

NUT, Nylock, M5 X 0.8
(Superseded to 880428YP)

$3.99

$

Usually ships in 2-12 days

0

0130

Snapper 880671

DOOR, Rear
(Superseded to 880671YP)

$42.99

$

Usually ships in 2-12 days

0

0140

Snapper 880942

SPRING, Torsion, RH
(Superseded to 880942YP)

$4.49

$

Usually ships in 2-12 days

0

0150

Snapper 880943

SPRING, Torsion, LH
(Superseded to 880943YP)

$4.49

$

Usually ships in 2-12 days

0

0160

Snapper 880214

ROD, Rear Door
(Superseded to 880214YP)

$10.99

$

Usually ships in 2-12 days

0

0170

Snapper 7091020

NUT, Push, 1/4
(Superseded to 7091020YP)

$4.49

$

In Stock, Qty 20+

0

0180

Snapper 881537

COVER, Nose
(Superseded to 881537YP)

$15.99

$

Usually ships in 2-12 days

0

0190

Snapper 7900018

SCREW, Torx, Hi-Lo,
(Superseded to 703834)

$4.49

$

In Stock, only 4 left!

0

1010

Snapper 880965

BAG
(Superseded to 880965YP)

$67.99

$

Usually ships in 2-12 days

0

1020

Snapper 880963Z

FRAME, Bag
(Superseded to 880963ZYP)

$72.99

$

In Stock, only 1 left!

0

1030

Snapper 880909

MULCH PLUG
(Superseded to 880909YP)

$43.99

$

Usually ships in 2-12 days

0
