ERDV 19675EX (881586) - Snapper 19" Walk-Behind Mower Handle Group Parts Diagram

19" Walk-Behind Mower

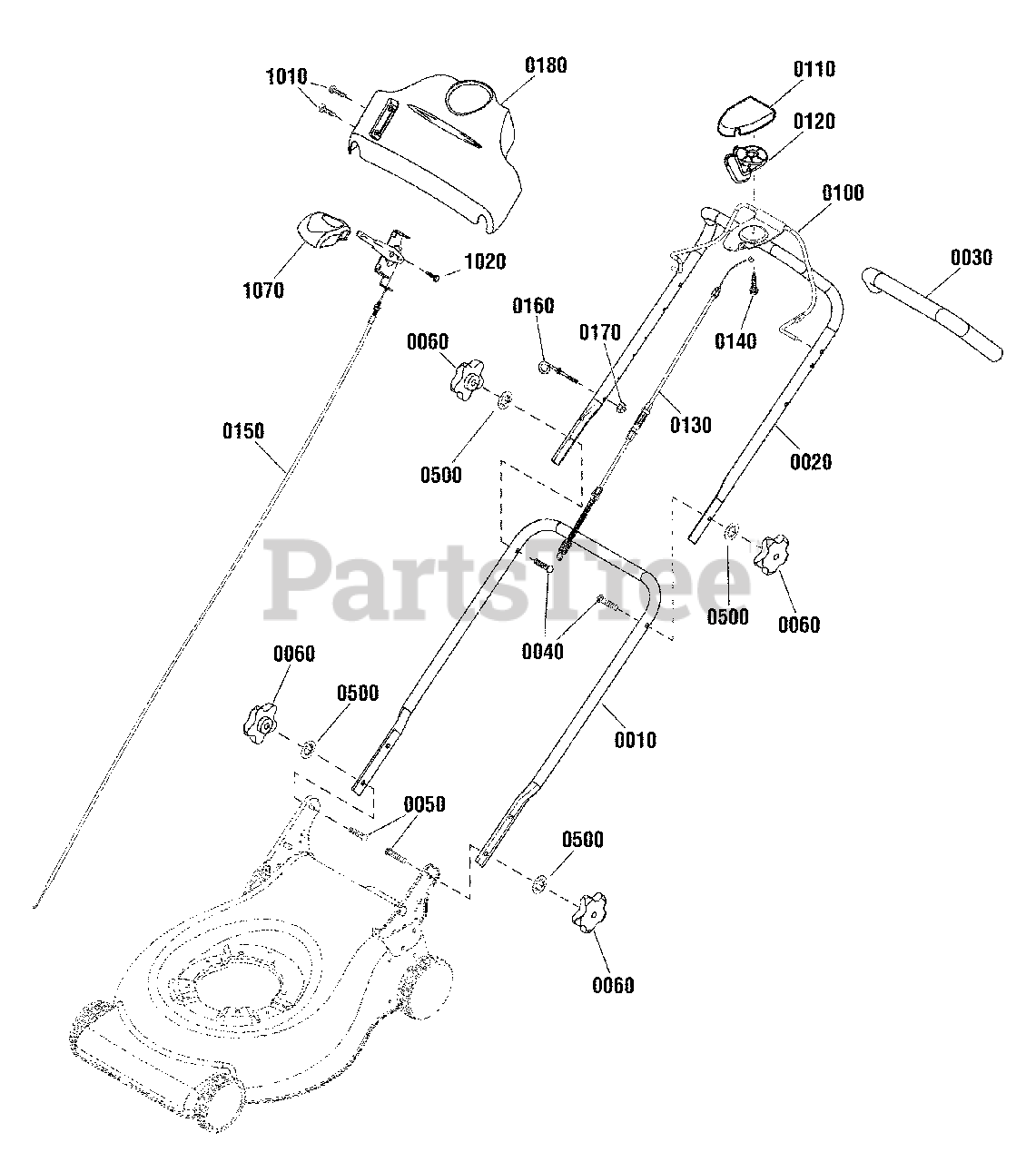

Handle Group Parts Diagram

  • Title

0010

Snapper 880571A

HANDLE, Lower
(Superseded to 880571AYP)

$

$

Not available

0020

Snapper 881594A

HANDLE, Upper
(Superseded to 881594AYP)

$50.99

$

Usually ships in 2-12 days

0

0030

Snapper 880457

TUBE, Foam
(Superseded to 880457YP)

$11.99

$

Usually ships in 2-12 days

0

0040

Snapper 7091714

BOLT, Carriage, Short Neck, 5/16-18 x 1, GR5
(Superseded to 703483)

$3.99

$

In Stock, only 3 left!

0

0050

Snapper 7091189

BOLT, Carriage, Curved Head, 5/16-18 x 2
(Superseded to 703059)

$4.49

$

In Stock, Qty 16

0

0060

Snapper 7105085

KNOB, Handle
(Superseded to 7105085YP)

$3.99

$

In Stock, Qty 20+

0

0100

Snapper 881068A

BAIL, Engine Stop, With Bracket
(Superseded to 881854ZYP)

$43.99

$

Usually ships in 2-12 days

0

0110

Snapper 880328

COVER, SP Control
(Superseded to 880328YP)

$4.99

$

Usually ships in 2-12 days

0

0120

Snapper 880329

LEVER, SP Drive
(Superseded to 880329YP)

$8.49

$

Usually ships in 2-12 days

0

0130

Snapper 881140

CABLE, Drive
(Superseded to 881140YP)

$24.99

$

Usually ships in 2-12 days

0

0140

Snapper 880070

SCREW, Hi-Lo, 1/2
(Superseded to 880070YP)

$3.49

$

Usually ships in 2-12 days

0

0150

Snapper 880652

THROTTLE CONTROL
(Superseded to 880652YP)

Note: (Use on 675 Series Models)

$25.99

$

Usually ships in 2-12 days

0

0150

Snapper 881718

THROTTLE CONTROL
(Superseded to 881718YP)

Note: Use on 850 Series Models)

$52.99

$

Usually ships in 2-12 days

0

0160

Snapper 7028488

GUIDE, Rope
(Superseded to 7028488MA)

$6.49

$

Usually ships in 2-12 days

0

0170

Snapper 880561

NUT, Nylock, 1/4-20
(Superseded to 880561YP)

$3.99

$

Usually ships in 2-12 days

0

0180

Snapper 880635

CONTROL PANEL
(Superseded to 880635YP)

$51.99

$

Usually ships in 2-12 days

0

0500

Snapper 7090391

WASHER, Internal Tooth, 5/16
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

1010

Snapper 880819

FASTENER, Panel
(Superseded to 880819YP)

$2.99

$

Usually ships in 2-12 days

0

1020

Snapper 880664

SCREW, Pan Head, Taptite, 1/4-20 x 1/2
(Superseded to 880664YP)

$3.99

$

Usually ships in 2-12 days

0

1070

Snapper 7075308

KNOB, Throttle
(Superseded to 7075308YP)

$11.99

$

In Stock, only 1 left!

0
