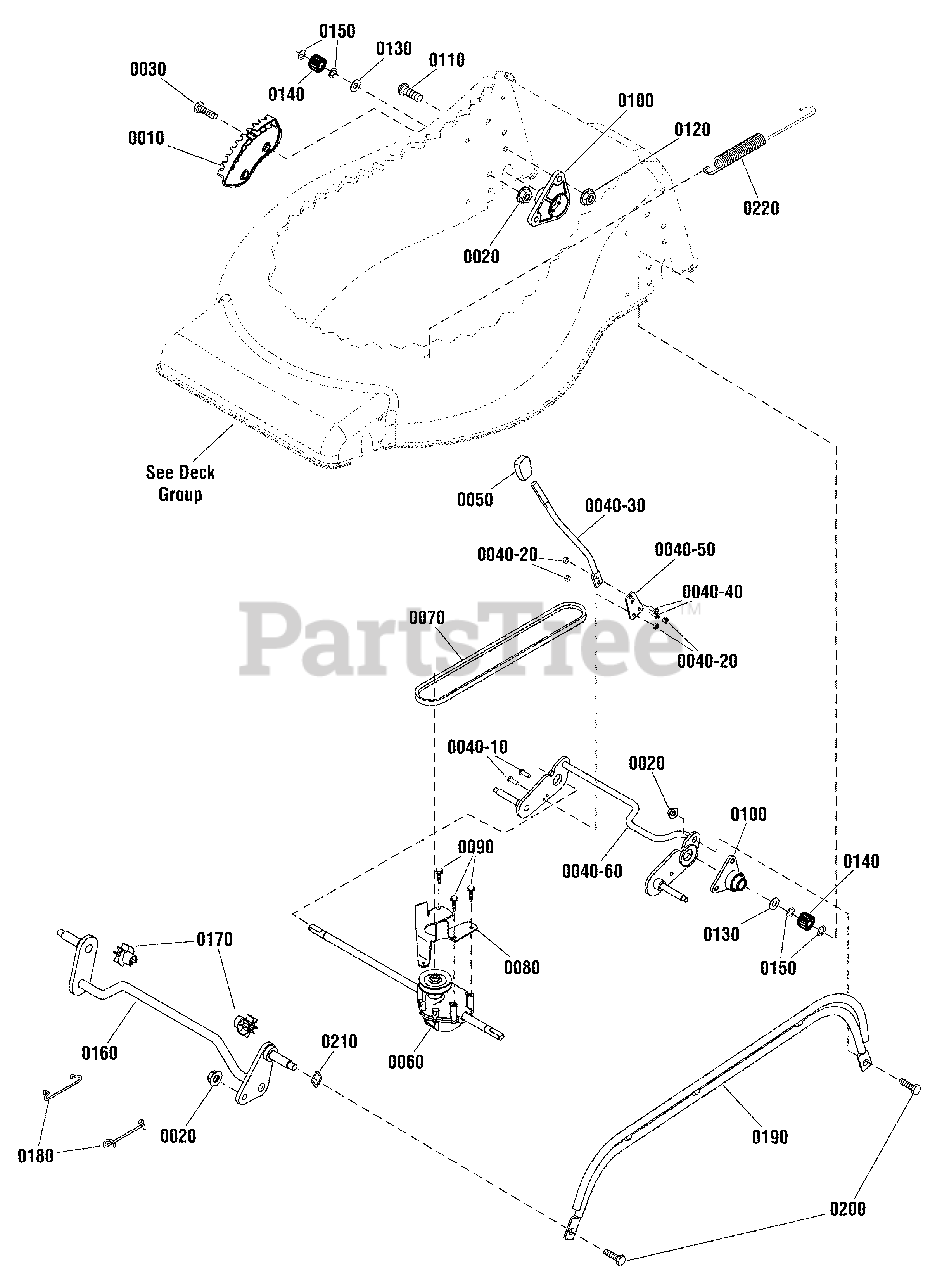

ERDV 19675EX (881586) - Snapper 19" Walk-Behind Mower Height of Cut Group Parts Diagram

19" Walk-Behind Mower

Height of Cut Group Parts Diagram

  • Title

0010

Snapper 880960

INDEX BRACKET, Standard Wheel
(Superseded to 880960YP)

$16.99

$

Usually ships in 2-12 days

0

0010

Snapper 880959

INDEX BRACKET, High Wheel
(Superseded to 880959YP)

$6.49

$

Usually ships in 2-12 days

0

0020

Snapper 1739305

NUT, Hex Flange, ESNA, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 12

0

0030

Snapper 22142

CAPSCREW, Hex Head, 5/16-18 x 3/4
(Superseded to 5022142)

$45.99

$

Usually ships in 2-12 days

0

0040-10

Snapper 880339

SCREW, Torx Head
(Superseded to 880339YP)

$3.99

$

In Stock, only 4 left!

0

0040-20

Snapper 880428

NUT, Nylock, M5 x 0.8
(Superseded to 880428YP)

$3.99

$

Usually ships in 2-12 days

0

0040-30

Snapper 880540

LEVER, Height Adjust
(Superseded to 880540YP)

$7.99

$

In Stock, only 2 left!

0

0040-40

Snapper 880577

SCREW, Torx, M5 - 0.8 x 12.5
(Superseded to 880577YP)

$3.99

$

In Stock, only 4 left!

0

0040-50

Snapper 880642

SPRING, Height Adjustment
(Superseded to 880642YP)

$5.99

$

In Stock, only 2 left!

0

0040-60

Snapper 880829

CROSSBAR, Rear, Standard Wheel
(Superseded to 880829YP)

$94.99

$

Usually ships in 2-12 days

0

0040-60

Snapper 880855

CROSSBAR, Rear, Hi Wheel
(Superseded to 880855YP)

$60.99

$

Usually ships in 2-12 days

0

0050

Snapper 880325

KNOB, Adjuster, Red
(Superseded to 880325YP)

$5.99

$

Usually ships in 2-12 days

0

0060

Snapper 880341

TRANSMISSION, Standard Wheel
(Superseded to 880341YP)

$119.99

$

Usually ships in 2-12 days

0

0060

Snapper 880604

TRANSMISSION, Hi Wheel
(Superseded to 880604YP)

$148.99

$

Usually ships in 2-12 days

0

0070

Snapper 880268

BELT, Drive
(Superseded to 880268YP)

$26.99

$

Usually ships in 2-12 days

0

0080

Snapper 880282

GUIDE, Belt
(Superseded to 880282YP)

$12.99

$

Usually ships in 2-12 days

0

0090

Snapper 880760

SCREW, Plastite, #10-14 x 7/8
(Superseded to 880760YP)

$4.49

$

Usually ships in 2-12 days

0

0100

Snapper 880787

RETAINER ASSEMBLY, Ball Bearing
(Superseded to 880787YP)

$17.99

$

Usually ships in 2-12 days

0

0110

Snapper 880845

SCREW, Torx Truss Head, 1/4-20 x 5/8
(Superseded to 880845YP)

$3.49

$

Usually ships in 2-12 days

0

0120

Snapper 880859

NUT, Flange Lock, 1/4-20
(Superseded to 880859YP)

$3.99

$

Usually ships in 2-12 days

0

0130

Snapper 880324

WASHER, Thrust
(Superseded to 880324YP)

$3.49

$

Usually ships in 2-12 days

0

0140

Snapper 880226

GEAR, Pinion, 11 Teeth, Standard Wheel
(Superseded to 880226YP)

$7.99

$

Usually ships in 2-12 days

0

0140

Snapper 880527

GEAR, Pinion, 13 Teeth, High Wheel
(Superseded to 880527YP)

$8.49

$

Usually ships in 2-12 days

0

0150

Snapper 880269

RING, Retaining
(Superseded to 880269YP)

$3.99

$

Usually ships in 2-12 days

0

0160

Snapper 880053

CROSSBAR, Front Standard Wheel
(Superseded to 880053YP)

$48.99

$

Usually ships in 2-12 days

0

0160

Snapper 880550

CROSSBAR, Front, High Wheel
(Superseded to 880550YP)

$38.99

$

Usually ships in 2-12 days

0

0170

Snapper 880050

BUSHING, Front
(Superseded to 880050YP)

$4.99

$

Usually ships in 2-12 days

0

0180

Snapper 881163

SPRING CLIP, Crossbar
(Superseded to 881163YP)

$8.99

$

In Stock, Qty 8

0

0190

Snapper 880791A

LIFTER LINK, Standard Wheel
(Superseded to 880791AYP)

$23.99

$

Usually ships in 2-12 days

0

0190

Snapper 881174A

LIFTER LINK, High Wheel
(Superseded to 881174AYP)

$31.99

$

Usually ships in 2-12 days

0

0200

Snapper 880651

BOLT, Shoulder, 5/16-18
(Superseded to 880651YP)

$3.99

$

Usually ships in 2-12 days

0

0210

Snapper 7026257

WASHER, Wave, 1/2
(Superseded to 7026257MA)

Note: (Used on High Wheel Models only)

$4.49

$

In Stock, only 2 left!

0

0220

Snapper 880052

SPRING, Extension
(Superseded to 880052YP)

$6.99

$

Usually ships in 2-12 days

0
