ERPV 21675SW (7800874) - Snapper 21" Walk-Behind Mower, 6.75hp Handle Group Parts Diagram

21" Walk-Behind Mower, 6.75hp

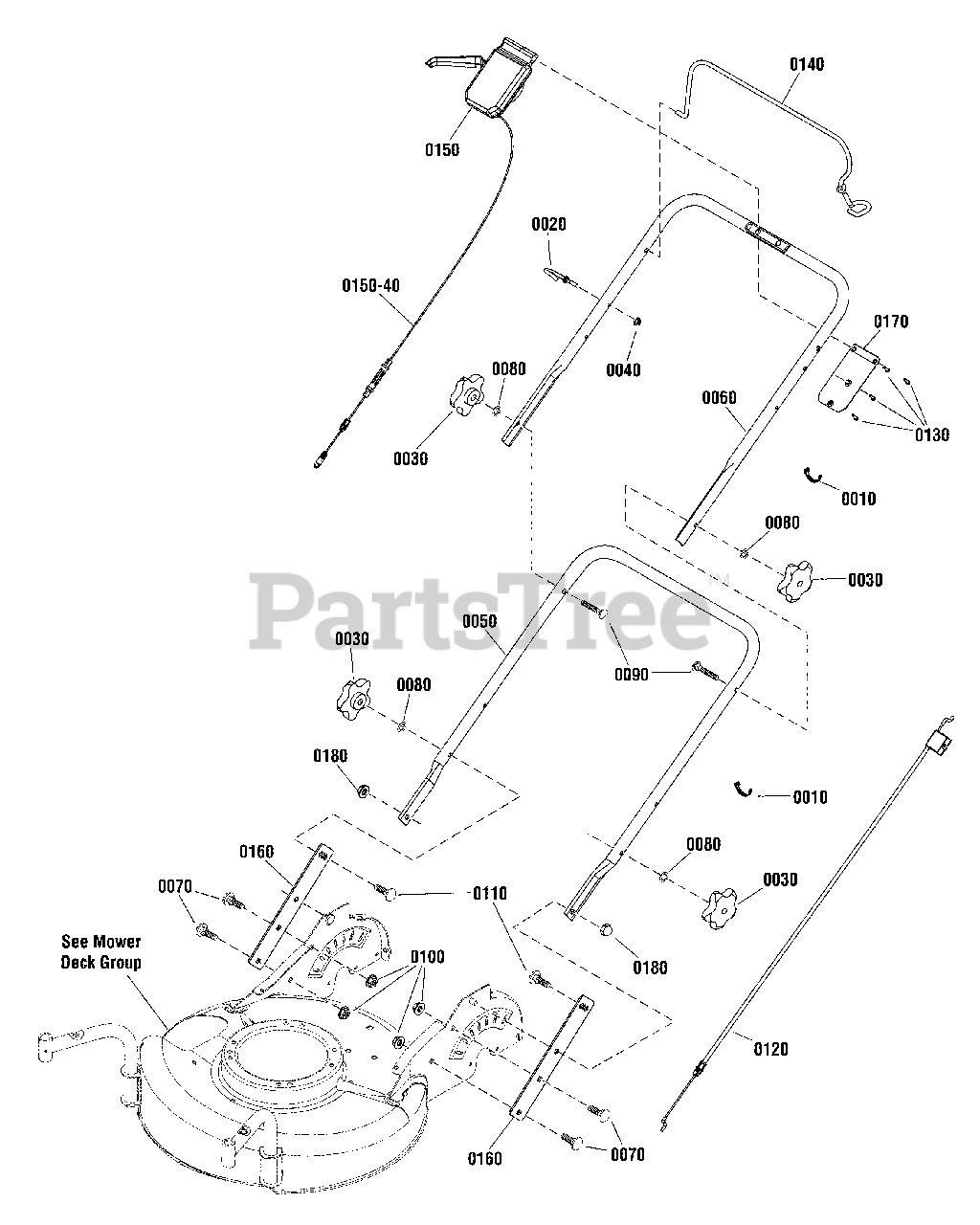

Handle Group Parts Diagram

  • Title

0010

Snapper 7024649YP

WIRE TIE, 11", Black Nylon

$5.49

$

Usually ships in 2-12 days

0

0020

Snapper 7028488MA

GUIDE, 1/4-20, Rope, CL/ZC

$6.49

$

Usually ships in 2-12 days

0

0030

Snapper 7105085YP

KNOB, 5/16-18, Handle, Fluted 5 Prong, Black

$3.99

$

In Stock, Qty 20+

0

0040

Snapper 703232

NUT, 1/4-20, Nylock, GR A, Zinc/Clear

$4.49

$

In Stock, Qty 20+

0

0050

Snapper 7078246AYP

HANDLE, Lower

$139.99

$

Usually ships in 2-12 days

0

0060

Snapper 7078247AYP

HANDLE, Upper

$142.99

$

Usually ships in 2-12 days

0

0070

Snapper 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 20+

0

0080

Snapper 703587

WASHER, 5/16, Internal Lock, Zinc/Clear

$4.49

$

In Stock, Qty 20+

0

0090

Snapper 703059

BOLT, 5/16-18 X 2.00 Conical Head, SN ZC/CL

$4.49

$

In Stock, Qty 16

0

0100

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0110

Snapper 002X97MA

BOLT, Carriage 5/16C X1-1/2 GR5 YZ
(Superseded to 704210)

$4.99

$

In Stock, only 2 left!

0

0120

Snapper 7100074YP

CABLE, Control Zone, 54.26" LG

$21.99

$

Usually ships in 2-12 days

0

0130

Snapper 704209

SCREW, #8-16X5/8, Torx, RH Twin Helix, ZC/CL

$3.99

$

Usually ships in 2-12 days

0

0140

Snapper 7101675AYP

BAIL, OPC, 15.37" Wide

$46.99

$

Usually ships in 2-12 days

0

0150

Snapper 7104003YP

ASSEMBLY, Control Head, VS

$72.99

$

Usually ships in 2-12 days

0

0150-40

Snapper 7104004YP

CABLE, Drive, 54.2" LG, 21" WBM

$48.99

$

In Stock, only 1 left!

0

0160

Snapper 7300103AYP

BRACKET, Lower Handle, Black Textured

$11.99

$

Usually ships in 2-12 days

0

0170

Snapper 7300130AMA

PLATE, Control Panel

$22.99

$

Usually ships in 2-12 days

0

0180

Snapper 7900066YP

RETAINING CAP, .375" ID, Push On

$3.99

$

Usually ships in 2-12 days

0
