ERPV 21675SW (7800874) - Snapper 21" Walk-Behind Mower, 6.75hp Rear Wheels Group Parts Diagram

21" Walk-Behind Mower, 6.75hp

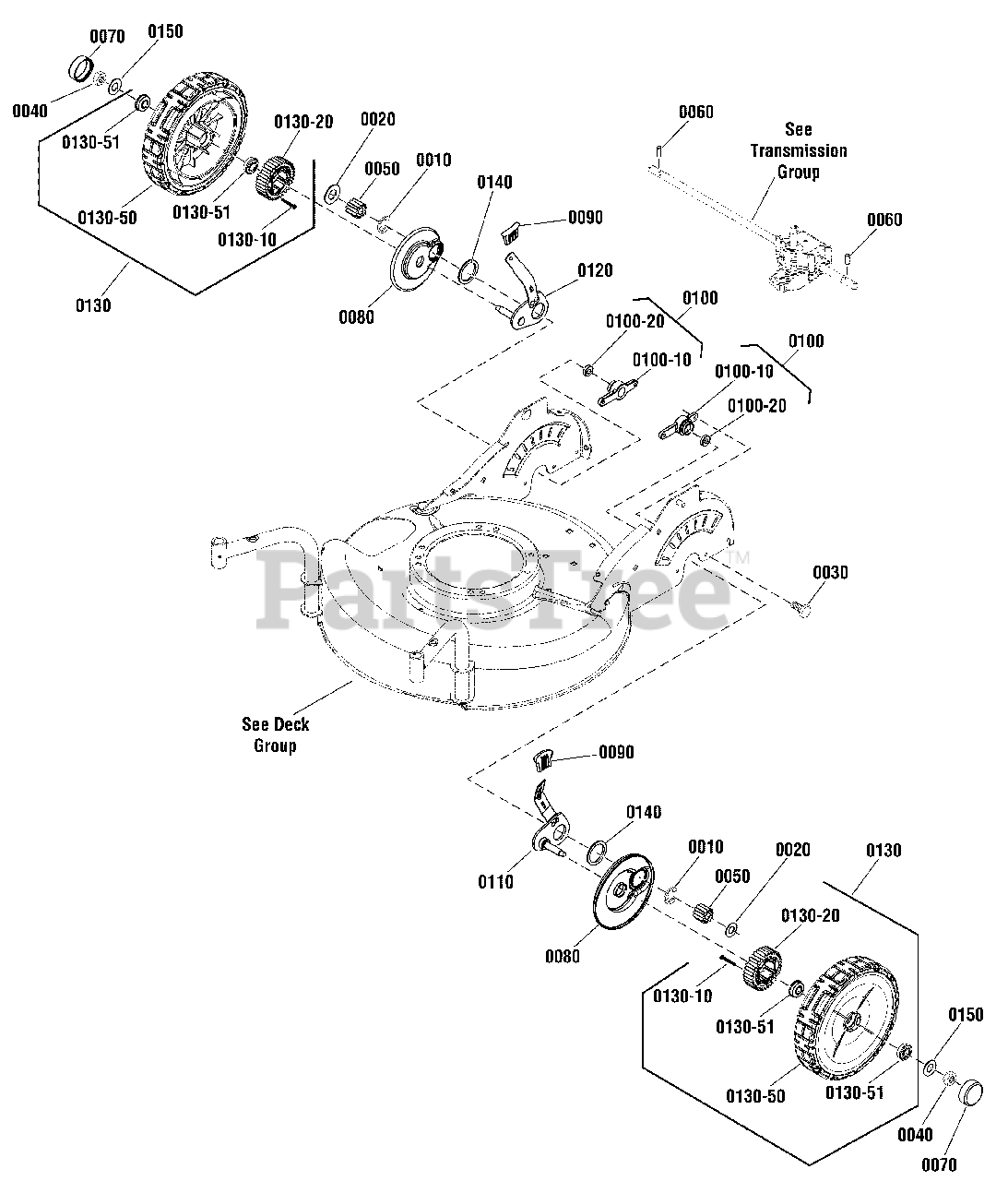

Rear Wheels Group Parts Diagram

  • Title

0010

Snapper 703976

RETAINING RING, .392 ID EXT, .042 Thk

$4.49

$

In Stock, Qty 20+

0

0020

Snapper 7027999YP

RETAINING RING, .452-.463 ID

$4.49

$

In Stock, Qty 7

0

0030

Snapper 1935450SM

BOLT, 1/4 - 20 X .750, Hex Flanged Cap, GR5, Zinc/Clear

$4.49

$

Usually ships in 2-12 days

0

0040

Snapper 703347

NUT, 3/8-16, Hex Center-Lock, GR B, Zinc/Clear

$4.99

$

In Stock, Qty 18

0

0050

Snapper 7100820YP

GEAR, Pinion, 11 T

$6.49

$

In Stock, only 1 left!

0

0060

Snapper 7100861YP

PIN, .187 OD, .625 Long, Axle

$4.99

$

In Stock, only 1 left!

0

0070

Snapper 7101350YP

HUBCAP, 8" & 9" Spoked Wheel, Cool Gray

$10.99

$

In Stock, only 2 left!

0

0080

Snapper 7101367YP

DUST SHIELD, 21 WBM, RD

$7.49

$

In Stock, only 2 left!

0

0090

Snapper 7103793YP

GRIP, Height Latch, Black

$4.49

$

In Stock, Qty 9

0

0100

Snapper 7600184YP

KIT, Axle Bearing Assembly

$24.99

$

Usually ships in 2-12 days

0

0100-10

Snapper 7078214YP

HOUSING, Axle Bearing

$13.99

$

Usually ships in 2-12 days

0

0100-20

Snapper 7078243YP

BEARING, Ball

$10.99

$

Usually ships in 2-12 days

0

0110

Snapper 7500273YP

ASSEMBLY, Axle Arm, Rear, LH, Clear Zinc

$88.99

$

In Stock, only 1 left!

0

0120

Snapper 7500274YP

ASSEMBLY, Axle Arm, Rear, RH, Clear Zinc

$125.99

$

Usually ships in 2-12 days

0

0130

Snapper 7600174YP

ASSEMBLY, Wheel 9X2 Drive, BB, W/Ext Gear, Gray

$56.99

$

Usually ships in 2-12 days

0

0130-10

Snapper 7091196SM

SCREW, #8 x 1-1/4 Hi-Lo, Hex Washer Self-Tap

$4.99

$

Usually ships in 2-12 days

0

0130-20

Snapper 7100914YP

GEAR, 34 T, External Wheel

$10.99

$

Usually ships in 2-12 days

0

0130-50

Snapper 7500647YP

ASSEMBLY, Wheel, 9 x 2 W/BB, Gray

$49.99

$

In Stock, Qty 5

0

0130-51

Snapper 7101380YP

BALL BEARING, 1-1/8 O.D., Flange
(Superseded to 071579MA)

$40.99

$

In Stock, only 1 left!

0

0140

Snapper 7900010YP

SNAP RING, 1-3/8, HD

$4.49

$

Usually ships in 2-12 days

0

0150

Snapper 703966

WASHER, 1 OD x .387 ID, Flat

$4.49

$

In Stock, only 2 left!

0
