ES-1000 - Echo Shred N Vac Blower (SN: 001001 - 025416) Engine, Crankcase Parts Diagram

Shred N Vac Blower

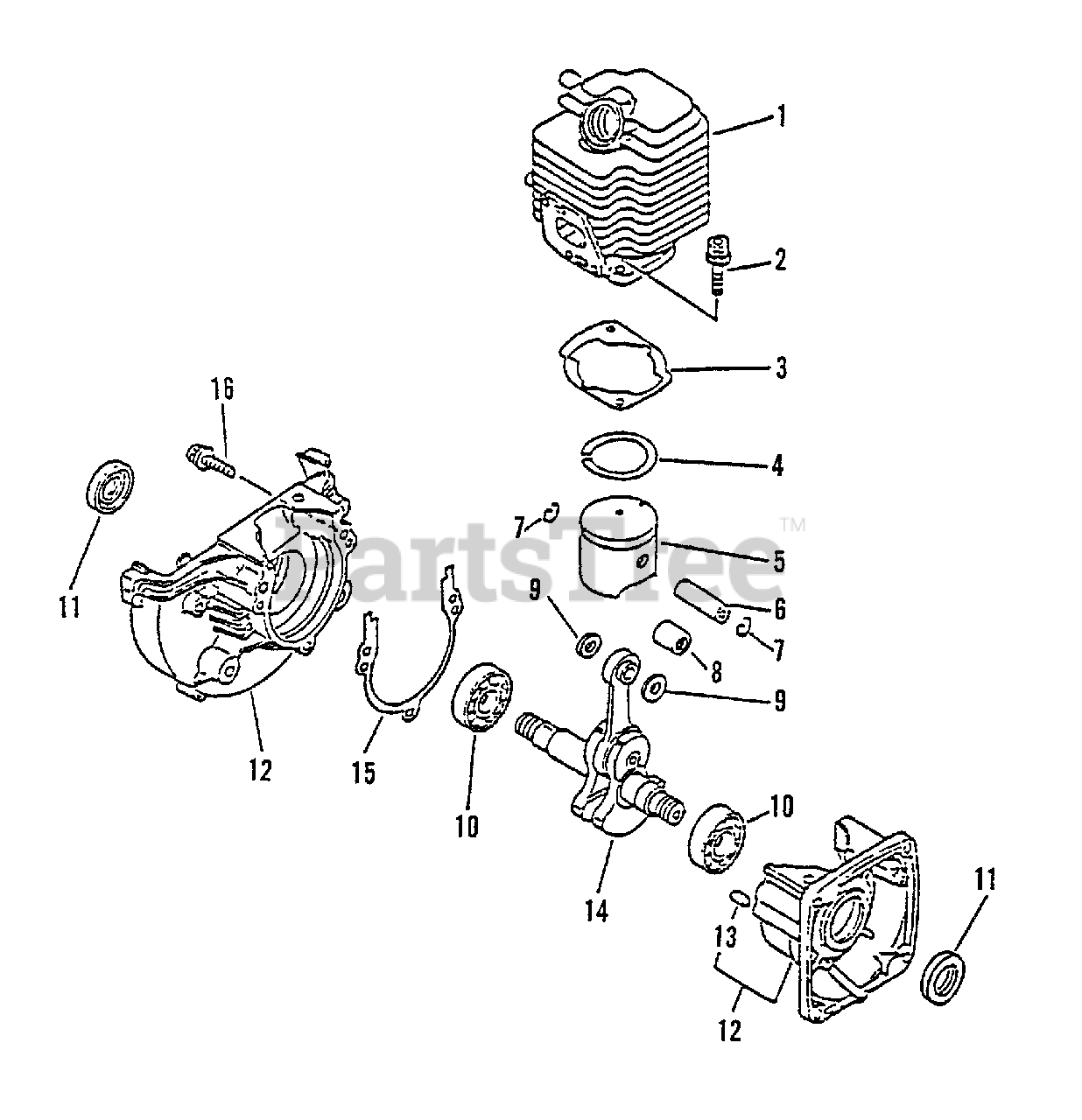

Engine, Crankcase Parts Diagram

  • Title

1

Echo 101011-45230

CYLINDER

$153.99

$

Usually ships in 2-4 days

0

2

Echo 900162-05022

BOLT 5×22

$0.99

$

In Stock, only 3 left!

0

3

Echo 10101044331

GASKET, CYLINDER
(Superseded to 10101044332)

Note: USE GASKET KIT P/N 88900005063

$4.99

$

Usually ships in 2-4 days

0

4

Echo 100011-05330

RING, PISTON
(Superseded to 10001105330)

$10.99

$

In Stock, Qty 8

0

5

Echo 10001044330

PISTON
(Superseded to 10000044330)

$78.99

$

Usually ships in 2-4 days

0

6

Echo 100013-11520

PIN, PISTON 8

$8.49

$

In Stock, only 2 left!

0

7

Echo 100015-04630

RING, SNAP
(Superseded to 10001504630)

$0.99

$

In Stock, Qty 20+

0

8

Echo 10001251230

BEARING, NEEDLE
(Superseded to V553000010)

$11.99

$

In Stock, only 2 left!

0

9

Echo 100014-11520

WASHER, THRUST

$3.99

$

In Stock, only 2 left!

0

10

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, only 3 left!

0

11

Echo 100212-42031

SEAL, OIL 12

$7.99

$

In Stock, only 4 left!

0

12

Echo 10020042030

CRANKCASE KIT
(Superseded to 10020451030)

Note: Includes ITEMS 13-15

$157.99

$

Usually ships in 2-4 days

0

13

Echo V622000020

PIN, LOCATING 4

$0.99

$

In Stock, only 4 left!

0

14

Echo 10010044730

CRANKSHAFT ASSY
(Superseded to 10010044731)

$186.99

$

Usually ships in 2-4 days

0

15

GASKET, CRANKCASE

Note: USE GASKET KIT P/N 88900005063

$

$

Not available

16

Echo 900162-05028

BOLT 5×28

$2.49

$

In Stock, Qty 10

0

Echo SB10011

SHORT BLOCK

$

$

Currently unavailable

Echo 88900005063

GASKET KIT
(Superseded to 88900005065)

Note: Includes Parts Below

$41.99

$

In Stock, only 2 left!

0

Echo 13001005062

GASKET, INTAKE
(Superseded to Discontinued)

$

$

Not available

Echo 130016-42031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

Echo 145866-42031

GASKET, EXHAUST

$2.99

$

In Stock, only 2 left!

0

Echo V104000160

GASKET, EXHAUST

$2.49

$

In Stock, Qty 20+

0

GASKET, CRANKCASE

$

$

Not available

Echo 10101044331

GASKET, CYLINDER
(Superseded to 10101044332)

$4.99

$

Usually ships in 2-4 days

0

Echo 14587105760

COVER, MUFFLER

$13.99

$

Usually ships in 2-4 days

0
