ES-1000 - Echo Shred N Vac Blower (SN: 001001 - 025416) Engine, Crankcase Parts Diagram

Shred N Vac Blower

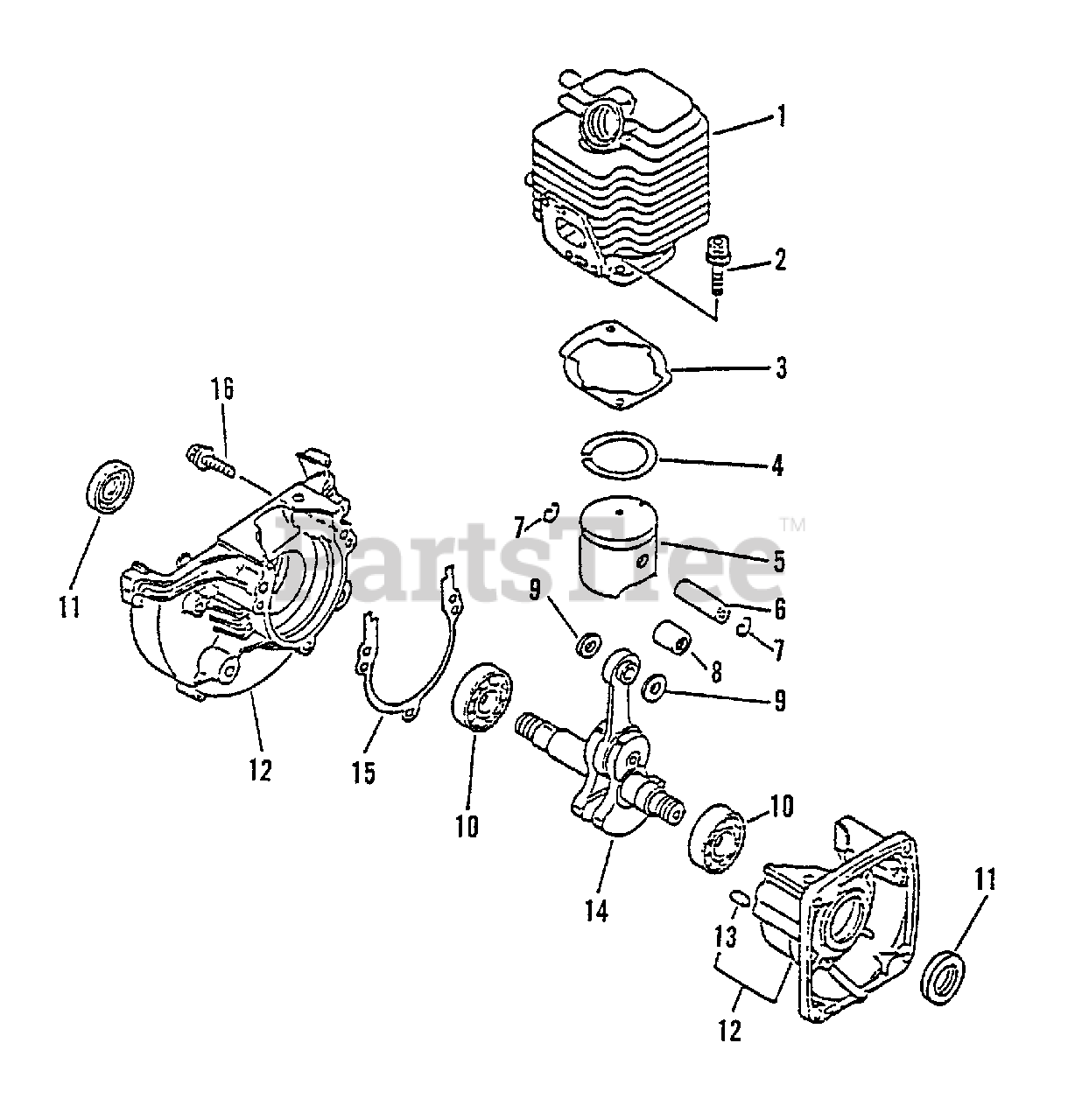

Engine, Crankcase Parts Diagram

  • Title

1

Echo 10101145230

CYLINDER

$141.99

$

In Stock, only 1 left!

0

2

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 18

0

3

Echo 10101044331

GASKET, CYLINDER
(Superseded to 10101044332)

Note: USE GASKET KIT P/N 88900005063

$4.49

$

In Stock, Qty 12

0

4

Echo 10001105330

RING, PISTON

$9.49

$

In Stock, Qty 20+

0

5

Echo 10001044330

PISTON
(Superseded to 10000044330)

$72.99

$

Usually ships in 2-4 days

0

6

Echo 10001311520

PIN, PISTON

$7.99

$

Usually ships in 2-4 days

0

7

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 20+

0

8

Echo 10001251230

BEARING, NEEDLE
(Superseded to V553000010)

$11.99

$

In Stock, only 1 left!

0

9

Echo 10001411520

SPACER, PISTON

$3.99

$

In Stock, only 4 left!

0

10

Echo 9403536201

BEARING, BALL - 6201

$8.99

$

In Stock, Qty 14

0

11

Echo 10021242031

SEAL, OIL

$7.49

$

In Stock, Qty 17

0

12

Echo 10020042030

CRANKCASE KIT
(Superseded to 10020451030)

Note: Includes ITEMS 13-15

$145.99

$

Usually ships in 2-4 days

0

13

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

14

Echo 10010044730

CRANKSHAFT ASSY
(Superseded to 10010044731)

$172.99

$

Usually ships in 2-4 days

0

15

------------------

GASKET, CRANKCASE

Note: USE GASKET KIT P/N 88900005063

$

$

Not available

16

Echo 90016205028

SCREW - 5X28

$2.49

$

In Stock, Qty 11

0

Echo SB10011

SHORT BLOCK

$

$

Currently unavailable

Echo 88900005063

GASKET KIT
(Superseded to 88900005065)

Note: Includes Parts Below

$38.99

$

Usually ships in 2-4 days

0

Echo 13001005062

GASKET, INTAKE
(Superseded to Discontinued)

$

$

Not available

Echo 13001642031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

Echo 14586642031

GASKET, EXHAUST

$2.99

$

In Stock, Qty 8

0

Echo V104000160

GASKET, EXHAUST

$2.49

$

In Stock, Qty 5

0

------------------

GASKET, CRANKCASE

$

$

Not available

Echo 10101044331

GASKET, CYLINDER
(Superseded to 10101044332)

$4.49

$

In Stock, Qty 12

0

Echo 14587105760

SHIELD, EXHAUST

$12.99

$

Usually ships in 2-4 days

0
