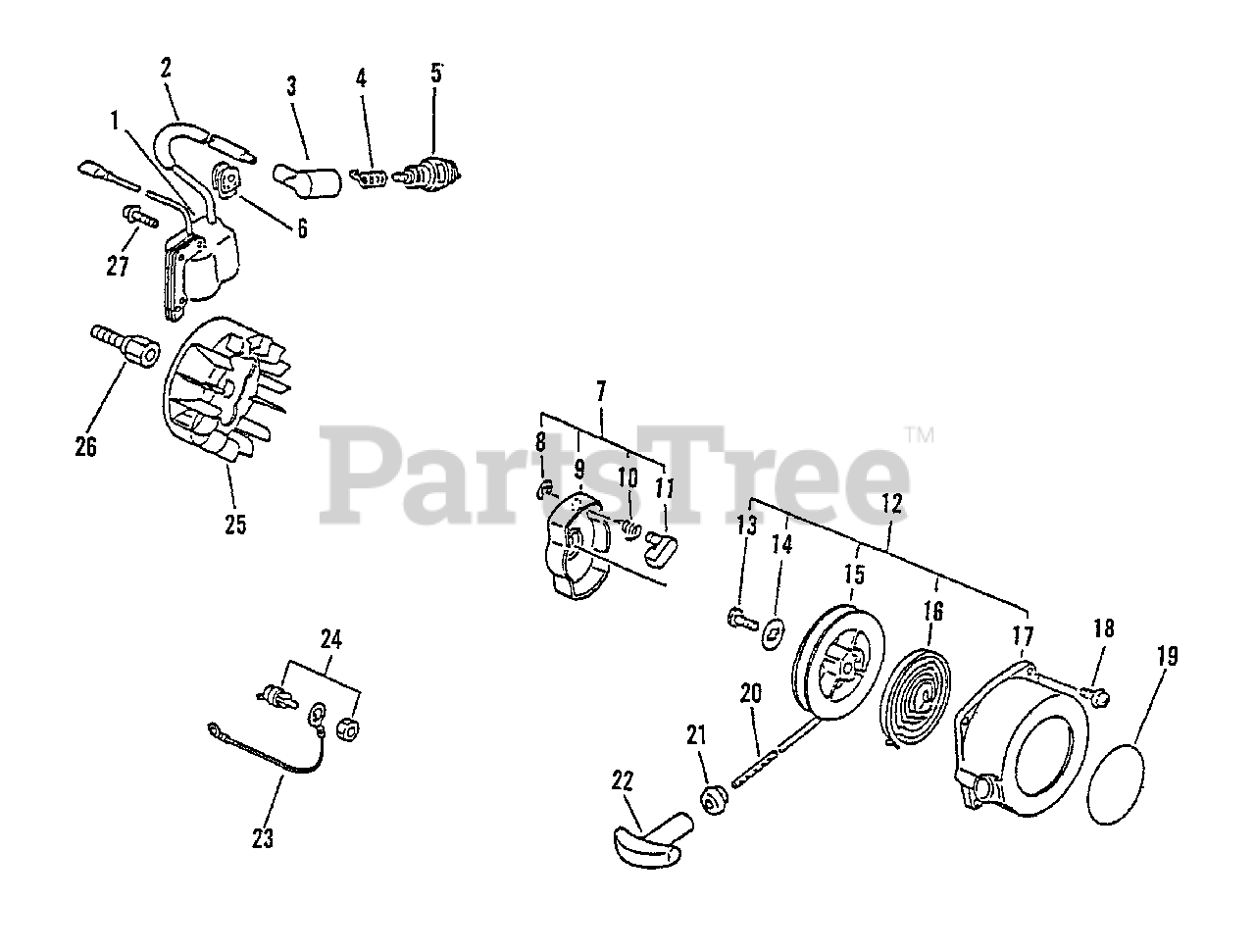

ES-1000 - Echo Shred N Vac Blower (SN: 001001 - 025416) Ignition, Starter Parts Diagram

Shred N Vac Blower

Ignition, Starter Parts Diagram

  • Title

1

Echo 15662608760

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

2

Echo 15661105060

TUBE

$1.99

$

In Stock, Qty 5

0

3

Echo 15901201620

CAP, SPARK PLUG

$1.49

$

In Stock, Qty 20+

0

4

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

5

Echo 15901010630

SPARK PLUG -- BPM-7A
(Superseded to 15901010230)

$3.49

$

In Stock, Qty 20+

0

5

Echo 15901010230

SPARK PLUG -- BPMR-7A

Note: CANADA MODEL

$3.49

$

In Stock, Qty 20+

0

6

Echo 15011205060

GROMMET

$1.49

$

Usually ships in 2-4 days

0

7

Echo 17720242030

STARTER PAWL ASSY
(Superseded to 17720244330)

Note: INCLUDES ITEMS 8 - 11

$16.99

$

In Stock, Qty 20+

0

8

Echo 90070000004

RING, RETAINING - 4

$0.99

$

In Stock, Qty 20+

0

9

Echo 17721042030

CATCHER, PAWL
(Superseded to 17720244330)

$16.99

$

In Stock, Qty 20+

0

10

Echo 17723412220

SPRING, RETURN

$3.99

$

In Stock, Qty 20+

0

11

Echo 17721842030

PAWL, STARTER

$3.49

$

Usually ships in 2-4 days

0

12

Echo 17720042032

STARTER ASSY
(Superseded to 17720042033)

Note: INCLUDES ITEMS 13 - 17, 20 - 22

$49.99

$

In Stock, Qty 20+

0

13

Echo 17723640630

SCREW

$3.99

$

In Stock, Qty 14

0

14

Echo 17721442030

WASHER
(Superseded to V303000230)

$1.99

$

In Stock, Qty 5

0

15

Echo 17721542030

REEL, ROPE
(Superseded to 17721544430)

$8.99

$

In Stock, Qty 20+

0

16

Echo 17722042030

SPRING, REWIND
(Superseded to P022019680)

$9.99

$

In Stock, Qty 20+

0

17

Echo 17723242032

CASE, STARTER

$20.99

$

In Stock, only 3 left!

0

18

Echo 90023804018

SCREW - 4X18

$0.99

$

In Stock, Qty 13

0

19

Echo 89011848830

LABEL - ECHO
(Superseded to X502000320)

$0.99

$

In Stock, Qty 15

0

20

------------------

ROPE, STARTER - 3X1000

Note: RePower BULK OPTION: 99944440000

$

$

Not available

21

Echo 17722742030

GUIDE, ROPE

$2.49

$

In Stock, Qty 19

0

22

Echo 17722806530

GRIP, STARTER

$4.99

$

In Stock, Qty 20+

0

23

Echo 16201008760

LEAD - GROUND

$9.99

$

Usually ships in 2-4 days

0

24

Echo 16340003460

IGNITION SWITCH ASSY

$8.49

$

In Stock, Qty 20+

0

25

Echo 15680144730

FLYWHEEL
(Superseded to 15680144731)

$105.99

$

Usually ships in 2-4 days

0

26

Echo 20001105660

HUB, FAN
(Superseded to 20001105661)

$15.99

$

In Stock, only 1 left!

0

27

Echo 90016204022

SCREW - 4X22

$0.99

$

In Stock, Qty 20+

0

Echo 99944400040

BULK ROPE - 3X1000
(Superseded to 99944440000)

$29.99

$

In Stock, Qty 15

0
