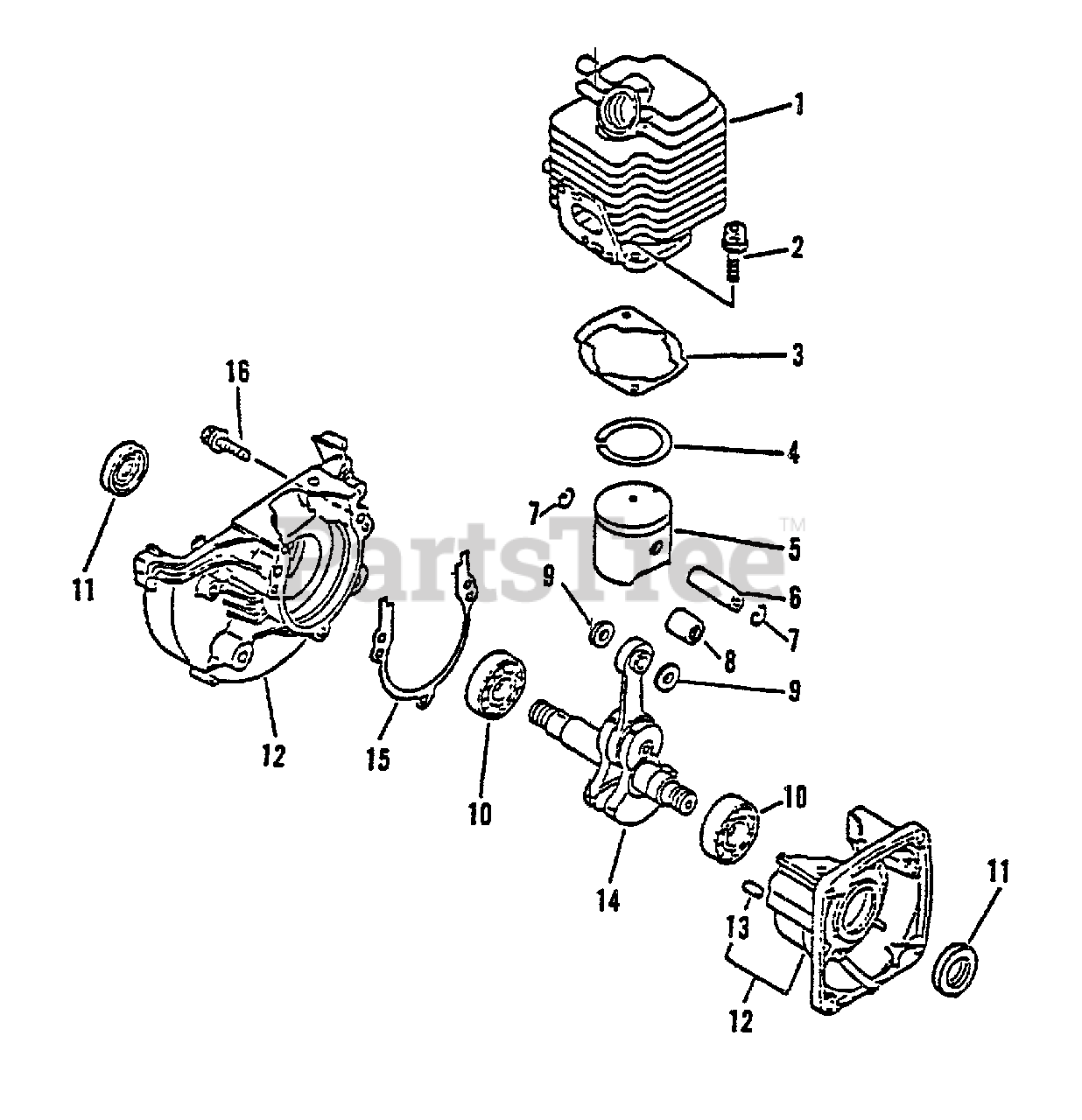

ES-2000 - Echo Shred N Vac Blower (SN: 001001 - 007941) Engine, Crankcase Parts Diagram

Shred N Vac Blower

Engine, Crankcase Parts Diagram

  • Title

1

Echo 10101152130

CYLINDER
(Superseded to 10101109560)

$

$

Not available

2

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

3

Echo 10101044331

GASKET, CYLINDER
(Superseded to 10101044332)

Note: USE GASKET KIT P/N 88900005063

$3.99

$

In Stock, Qty 20+

0

4

Echo 10001121230

RING, PISTON

$7.49

$

Usually ships in 2-4 days

0

5

Echo 10000052130

PISTON KIT

Note: INCLUDES ITEMS 4, 6, 7 & 9

$70.99

$

In Stock, only 1 left!

0

6

Echo 10001311520

PIN, PISTON

$7.49

$

In Stock, only 1 left!

0

7

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 20+

0

8

Echo 10001251230

BEARING, NEEDLE
(Superseded to V553000010)

$9.99

$

In Stock, only 2 left!

0

9

Echo 10001411520

SPACER, PISTON

$3.49

$

In Stock, only 2 left!

0

10

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 12

0

11

Echo 10021242031

SEAL, OIL

$6.49

$

In Stock, Qty 20+

0

12

Echo 10020451030

CRANKCASE KIT
(Superseded to 10020451031)

Note: Includes ITEMS 13-15

$131.99

$

Usually ships in 2-4 days

0

13

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 9

0

14

Echo 10010052130

CRANKSHAFT ASSY
(Superseded to 10010052131)

Note: Includes ITEM 8

$147.99

$

Usually ships in 2-4 days

0

15

------------------

GASKET, CRANKCASE

Note: USE GASKET KIT P/N 88900005063

$

$

Not available

16

Echo 90016205028

SCREW - 5X28

$1.99

$

In Stock, Qty 20+

0

Echo SB1024

SHORT BLOCK -- SB1024
(Superseded to SB1027)

$

$

Not available

Echo 88900005063

GASKET KIT
(Superseded to 88900005065)

Note: OPTIONAL

$34.99

$

Usually ships in 2-4 days

0

Echo 13001005062

GASKET, INTAKE
(Superseded to Discontinued)

$

$

Not available

Echo 13001642031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

Echo 14586642031

GASKET, EXHAUST

$2.49

$

In Stock, Qty 20+

0

Echo V104000160

GASKET, EXHAUST

$0.99

$

In Stock, Qty 20+

0

------------------

GASKET, CRANKCASE

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

Echo 10101044331

GASKET, CYLINDER
(Superseded to 10101044332)

$3.99

$

In Stock, Qty 20+

0

Echo 14563142030

COVER, MUFFLER
(Superseded to A320000250)

$4.99

$

In Stock, Qty 20+

0

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

$2.49

$

In Stock, Qty 20+

0
