ES-2000 - Echo Shred N Vac Blower (SN: 001001 - 007941) Intake, Exhaust, Air Cleaner, Fuel System Parts Diagram

Shred N Vac Blower

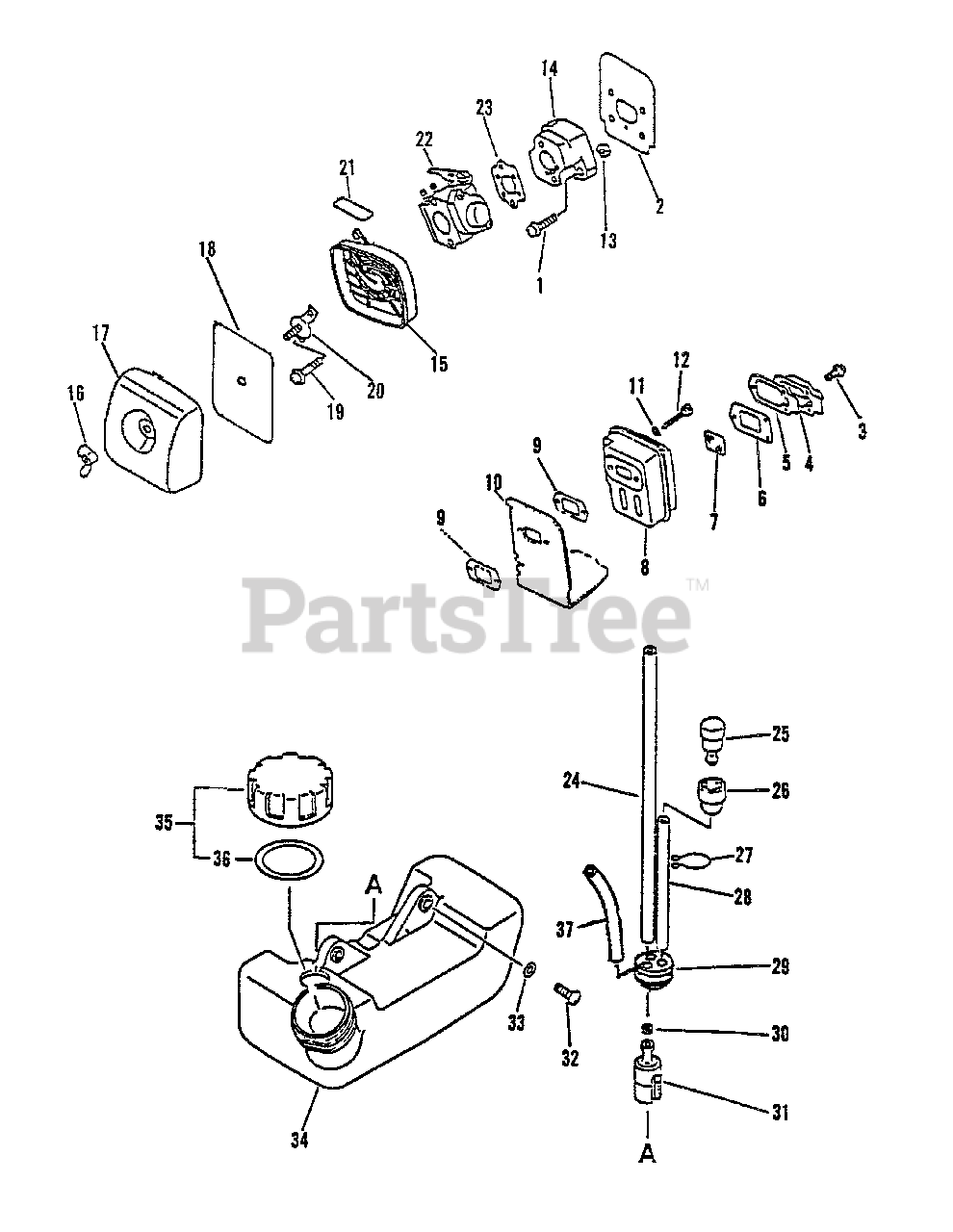

Intake, Exhaust, Air Cleaner, Fuel System Parts Diagram

  • Title

1

Echo 90023805022

SCREW 5×22

$0.99

$

In Stock, only 4 left!

0

2

Echo 13001005062

GASKET, INTAKE
(Superseded to Discontinued)

$

$

Not available

3

Echo 900242-04010

SCREW 4×10

$0.99

$

In Stock, Qty 20+

0

4

Echo 14587605060

GUIDE, EXHAUST - INNER
(Superseded to 14587605061)

$3.99

$

In Stock, only 1 left!

0

5

Echo 14587642030

GUIDE, EXHAUST

$4.99

$

In Stock, only 3 left!

0

6

Echo 145866-42031

GASKET, EXHAUST

$2.99

$

In Stock, only 2 left!

0

7

Echo 14586240630

SCREEN, SPARK ARRESTER

$2.49

$

In Stock, Qty 6

0

8

Echo 14580005062

MUFFLER ASSY
(Superseded to 14580005063)

Note: INCLUDES ITEMS 3 - 7, 9 & 10

$100.99

$

Usually ships in 2-4 days

0

9

Echo V104000160

GASKET, EXHAUST

$2.49

$

In Stock, Qty 20+

0

10

Echo 14587105760

COVER, MUFFLER

$13.99

$

Usually ships in 2-4 days

0

11

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

12

Echo 900105-05055

BOLT 5×55

$1.99

$

In Stock, Qty 20+

0

13

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

14

Echo 13001705061

INSULATOR, INTAKE
(Superseded to 13001705062)

$7.49

$

In Stock, only 2 left!

0

15

Echo 13030706561

AIR FILTER CASE ASSY
(Superseded to P021002921)

Note: When replacing the Air Cleaner Case on units in S/N range 001001 thru 007941 order (2) P/N 90024205065 Screw for proper case retention.

$14.99

$

In Stock, Qty 9

0

16

Echo 90052800005

WINGNUT - 6

$1.99

$

In Stock, Qty 5

0

17

Echo 13031306560

COVER, AIR FILTER
(Superseded to 13031306561)

$9.49

$

In Stock, only 2 left!

0

18

Echo 13031006560

FILTER, AIR

$4.99

$

In Stock, Qty 11

0

19

Echo 90024205065

SCREW 5×65

$0.99

$

In Stock, Qty 20+

0

20

Echo 12901105060

PLATE, PREVENT

$6.99

$

In Stock, Qty 7

0

21

Echo 89012106360

LABEL, CHOKE

$1.99

$

In Stock, only 4 left!

0

22

Echo 12520009460

CARBURETOR - C1U-K32
(Superseded to 12520009461)

$

$

Not available

23

Echo 130016-42031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

24

Echo V471001190

PIPE, FUEL 3x-5x-180
(Superseded to V471001191)

Note: RePower BULK OPTION: 90014

$1.99

$

In Stock, Qty 20+

0

25

Echo 13130040630

VENT ASSY
(Superseded to 13130056430)

$8.99

$

In Stock, Qty 7

0

26

Echo 13132840630

HOLDER, VENT

$7.49

$

In Stock, Qty 13

0

27

Echo 13201305060

CLIP, TUBE

$0.99

$

Usually ships in 2-4 days

0

28

Echo V471001200

PIPE, FUEL 3x-5x-70 BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$2.49

$

In Stock, Qty 20+

0

29

Echo V137000030

GROMMET, FUEL
(Superseded to 13211546730)

$2.49

$

In Stock, Qty 20+

0

30

Echo 132013-09820

CLIP 6 MM

$0.99

$

In Stock, Qty 8

0

31

Echo 131205-07320

FILTER, FUEL

$6.49

$

In Stock, Qty 20+

0

32

Echo 90023805016

SCREW 5×16

$0.99

$

In Stock, Qty 20+

0

33

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

34

Echo 13100505760

TANK, FUEL
(Superseded to 13100505761)

$

$

Not available

35

Echo 13100448730

CAP ASSY
(Superseded to 13100455830)

Note: INCLUDES ITEMS 36

$5.49

$

In Stock, only 2 left!

0

36

Echo 13101640930

GASKET, FUEL CAP

$3.49

$

In Stock, Qty 8

0

37

Echo 13201056330

PIPE, FUEL RETURN 3×6×90 MM CLEAR

Note: RePower BULK OPTION: 90017
