ES-210 - Echo Shred N Vac Blower (SN: 09001001 - 09999999) Intake, Exhaust Parts Diagram

Shred N Vac Blower

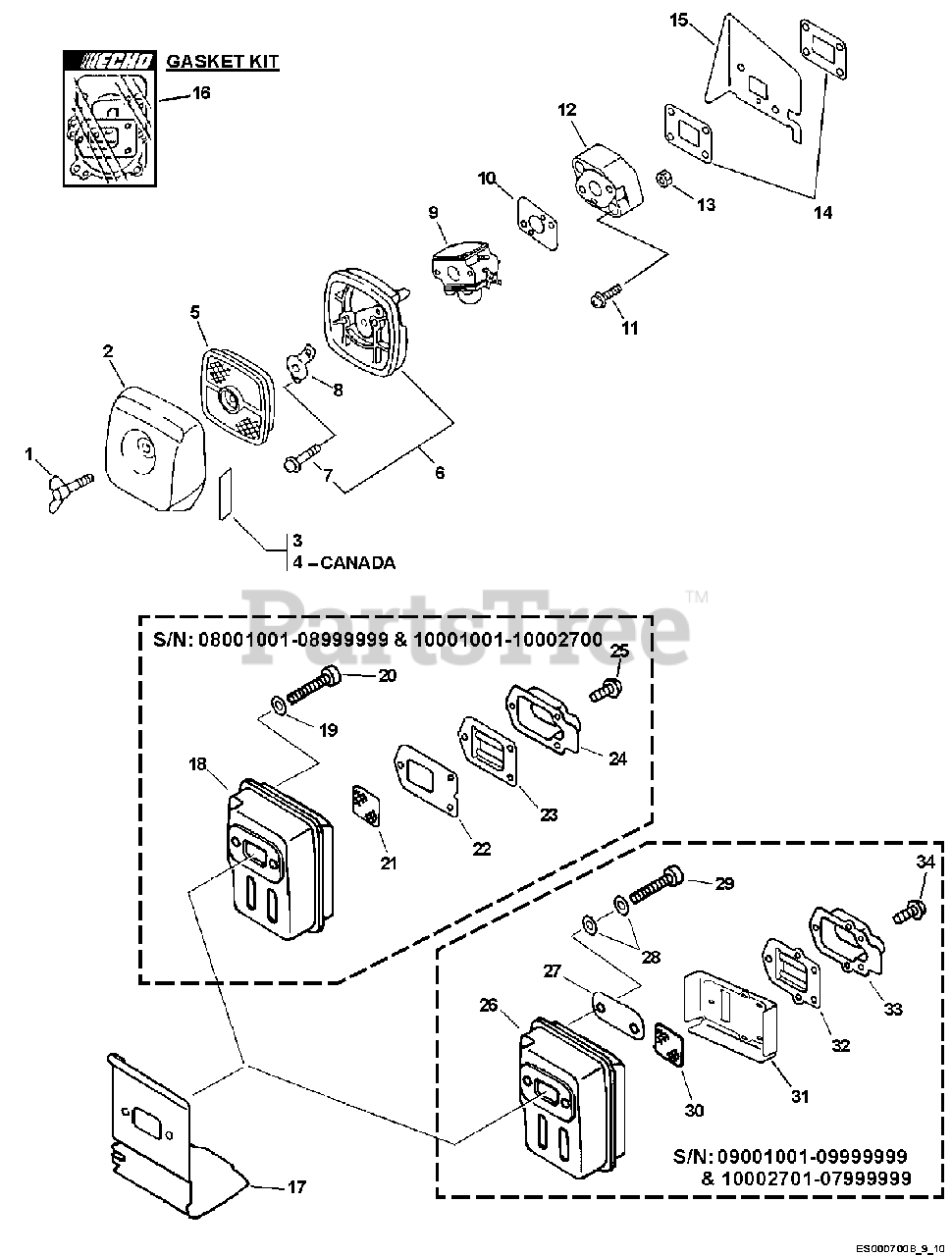

Intake, Exhaust Parts Diagram

  • Title

1

Echo 21041752730

THUMBSCREW

$1.99

$

In Stock, Qty 20+

0

2

Echo 13031306563

COVER, AIR FILTER - GRAY

$7.99

$

In Stock, Qty 20+

0

3

Echo 89012106360

LABEL - CHOKE

$1.99

$

In Stock, Qty 5

0

4

Echo 89012105360

LABEL - CHOKE

Note: CANADA MODELS

$1.99

$

In Stock, Qty 5

0

5

Echo 13031054130

FILTER, AIR - SINGLE LAYER
(Superseded to A226001410)

$8.99

$

In Stock, Qty 20+

0

6

Echo 13030706561

AIR FILTER CASE ASSY
(Superseded to P021002921)

Note: Includes ITEM 7

$14.99

$

In Stock, Qty 13

0

7

Echo 90024205065

SCREW - 5X65

$0.99

$

In Stock, Qty 20+

0

8

Echo 12901152730

PLATE, PREVENT

$4.49

$

In Stock, Qty 20+

0

9

------------------

CARBURETOR

Note: See Carburetor Diagram For Details

$

$

Not available

10

Echo 13001020560

GASKET, INTAKE

$2.99

$

In Stock, Qty 10

0

11

Echo 90023805022

SCREW - 5X22

$0.99

$

In Stock, only 4 left!

0

12

Echo 13001705062

INSULATOR, INTAKE

$7.49

$

In Stock, only 2 left!

0

13

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

14

Echo 13001009561

GASKET, INTAKE

$3.49

$

In Stock, only 2 left!

0

15

Echo 10151420560

SHIELD, INTAKE

$3.49

$

Usually ships in 2-4 days

0

16

Echo P021008590

GASKET KIT

$42.99

$

In Stock, only 1 left!

0

17

Echo V104000631

SHIELD, EXHAUST

$6.49

$

In Stock, only 1 left!

0

18

Echo 14580642030

MUFFLER

$55.99

$

In Stock, only 2 left!

0

19

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

20

Echo 90010505055

SCREW - 5X55

$1.99

$

In Stock, Qty 20+

0

21

Echo 14586240630

SCREEN, SPARK ARRESTOR

$2.49

$

In Stock, Qty 20+

0

22

Echo 14586642031

GASKET, EXHAUST

$2.99

$

In Stock, Qty 6

0

23

Echo A313000570

GUIDE, EXHAUST - INNER

$3.99

$

Usually ships in 2-4 days

0

24

Echo A313000620

GUIDE, EXHAUST - OUTER

$2.49

$

Usually ships in 2-4 days

0

25

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 20+

0

26

Echo A300000141

MUFFLER
(Superseded to A300000790)

$88.99

$

In Stock, Qty 7

0

27

Echo V150000371

PLATE

$1.49

$

In Stock, Qty 8

0

28

Echo V347000000

WASHER - CONICAL

$0.99

$

In Stock, Qty 8

0

29

Echo 90010505055

SCREW - 5X55

$1.99

$

In Stock, Qty 20+

0

30

Echo 14586240630

SCREEN, SPARK ARRESTOR

$2.49

$

In Stock, Qty 20+

0

31

Echo V104000360

GASKET, EXHAUST
(Superseded to V104001760)

$8.49

$

In Stock, Qty 7

0

32

Echo A313000590

GUIDE, EXHAUST - INNER

$3.99

$

Usually ships in 2-4 days

0

33

Echo A313000630

GUIDE, EXHAUST - OUTER

$2.99

$

Usually ships in 2-4 days

0

34

Echo 9136704012

SCREW - 4X12

$0.99

$

In Stock, Qty 20+

0
