ES-210 - Echo Shred N Vac Blower (SN: P08711001001 - P08711999999) Fan Case, Engine Cover, Throttle Control S/N: P08711005313 - P08711999999 Parts Diagram

Shred N Vac Blower

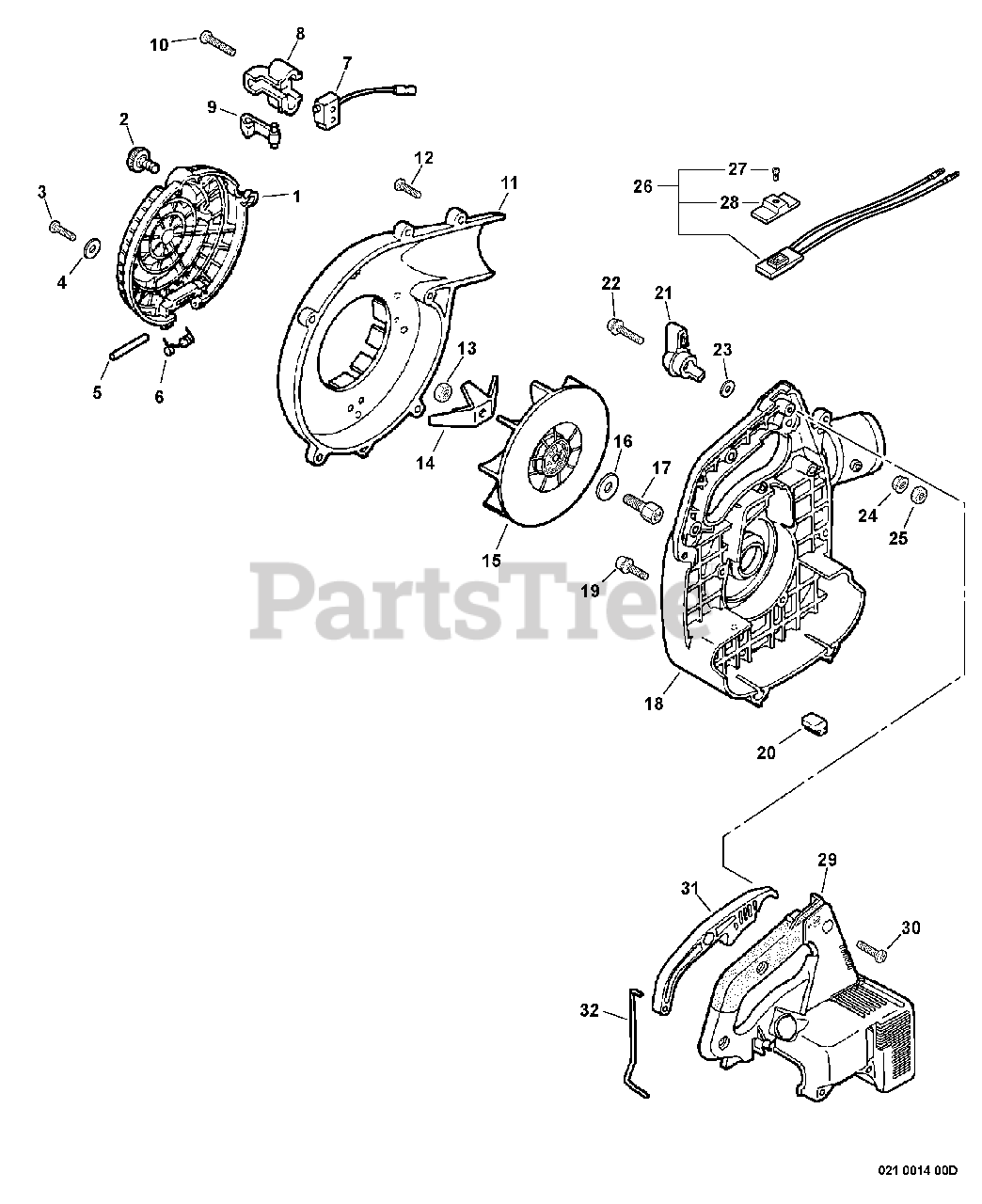

Fan Case, Engine Cover, Throttle Control S/N: P08711005313 - P08711999999 Parts Diagram

  • Title

1

Echo 20012420661

COVER, INTAKE

$24.99

$

In Stock, only 2 left!

0

2

Echo V299000290

THUMBSCREW
(Superseded to V299000650)

$2.99

$

In Stock, Qty 20+

0

3

Echo 90025305014

SCREW 5×14

$1.49

$

In Stock, Qty 5

0

4

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

5

Echo 20015005060

PIN, INTAKE COVER

$3.49

$

Usually ships in 2-4 days

0

6

Echo 20015205060

SPRING, COIL

$3.99

$

In Stock, only 1 left!

0

7

Echo 16340020660

SWITCH, INTERLOCK

$12.99

$

Usually ships in 2-4 days

0

8

Echo A439000370

BRACKET, SWITCH

$11.99

$

Usually ships in 2-4 days

0

9

Echo 16333520660

LEVER, SHUT OFF ACTUATOR

$4.99

$

Usually ships in 2-4 days

0

10

Echo 90025604022

SCREW 4×22

$0.99

$

In Stock, Qty 20+

0

11

Echo E103000570

COVER, FAN - LEFT -- ORANGE

$18.99

$

Usually ships in 2-4 days

0

12

Echo 90025305020

SCREW, TAPPING 5×20

$1.99

$

In Stock, Qty 20+

0

13

Echo 90050000008

NUT M8

$0.99

$

In Stock, Qty 20+

0

14

Echo 20018008761

SHREDDER

$11.99

$

In Stock, Qty 10

0

15

Echo 20001006363

FAN

$19.99

$

In Stock, only 2 left!

0

16

Echo 10013205660

WASHER

$2.49

$

In Stock, only 1 left!

0

17

Echo 20001105661

HUB, FAN

$18.99

$

In Stock, only 1 left!

0

18

Echo E103000580

COVER, FAN - RIGHT -- ORANGE

$32.99

$

Usually ships in 2-4 days

0

19

Echo 90016204022

SCREW 4×22

$0.99

$

In Stock, Qty 20+

0

20

Echo 35133520560

CUSHION

$7.49

$

In Stock, only 2 left!

0

21

Echo 17805421760

LEVER, CRUISE CONTROL

$14.99

$

Usually ships in 2-4 days

0

22

Echo 900238-05025

SCREW 5×25

$0.99

$

In Stock, Qty 20+

0

23

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

24

Echo 90051600005

NUT, FLANGE M5

$1.49

$

In Stock, Qty 20+

0

25

Echo 900502-00005

NUT M5

$0.99

$

In Stock, Qty 8

0

26

Echo P021015460

SWITCH, ON-OFF

Note: INCLUDES ITEMS 27-28

$5.49

$

Usually ships in 2-4 days

0

27

Echo 9154503010

SCREW 3×10

$0.99

$

In Stock, Qty 20+

0

28

Echo A444000060

KNOB, SWITCH

$4.49

$

In Stock, only 2 left!

0

29

Echo A190000740

COVER, ENGINE

$22.99

$

Usually ships in 2-4 days

0

30

Echo 90025305020

SCREW, TAPPING 5×20

$1.99

$

In Stock, Qty 20+

0

31

Echo 17801021760

TRIGGER, THROTTLE

$9.99

$

Usually ships in 2-4 days

0

32

Echo 17801120561

ROD, THROTTLE

$7.99

$

In Stock, Qty 14

0
