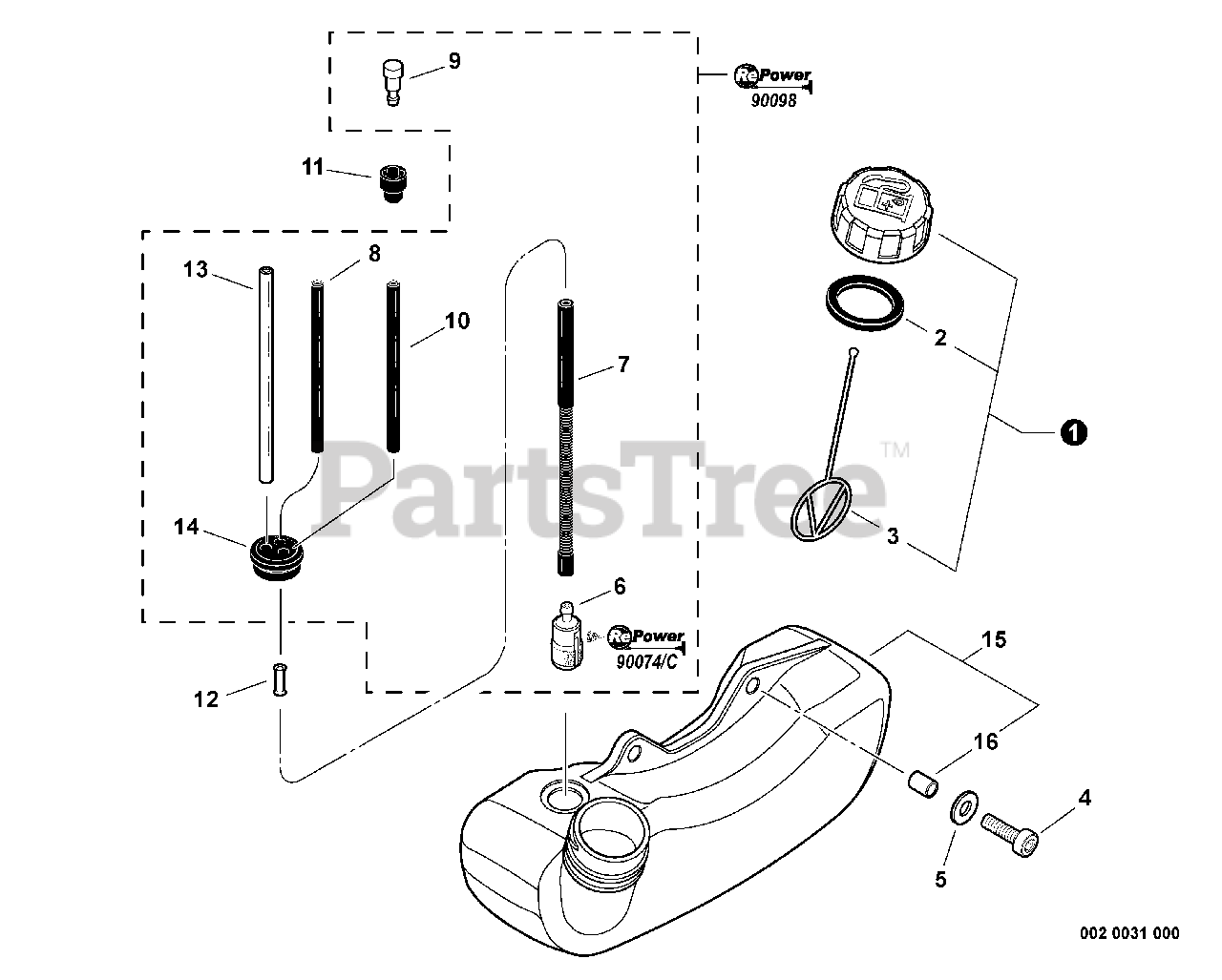

ES-210 - Echo Shred N Vac Blower (SN: P08711001001 - P08711999999) Fuel System Parts Diagram

Shred N Vac Blower

Fuel System Parts Diagram

  • Title

1

Echo 13100455530

CAP ASSY, FUEL
(Superseded to P100006640)

Note: INCLUDES ITEMS 2-3

$7.49

$

In Stock, Qty 9

0

2

Echo 131016-55830

GASKET, FUEL CAP

$

$

Not available

3

Echo 13105156030

CONNECTOR, CAP L= 100 MM

$1.49

$

In Stock, Qty 6

0

4

Echo 90016205016

BOLT 5×16

$1.49

$

In Stock, Qty 20+

0

5

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

6

Echo 131205-07320

FILTER, FUEL

Note: Included In RePower KIT RePower BULK OPTION: 90014

$6.49

$

In Stock, Qty 20+

0

7

Echo 13201212361

PIPE, FUEL 3×7×100 FLEXIBLE
(Superseded to 13201212362)

Note: Included In RePower KIT

$4.49

$

In Stock, Qty 10

0

8

Echo V471001210

PIPE, FUEL 3×5×90 BLACK
(Superseded to V471001211)

Note: RePower BULK OPTION: 90014

$0.99

$

In Stock, Qty 20+

0

9

Echo A356000031

VENT ASSY

Note: Also Included In REPOWER FUEL SYSTEM KIT

$9.49

$

In Stock, Qty 20+

0

10

Echo V471001200

PIPE, FUEL 3x-5x-70 BLACK
(Superseded to V471001201)

Note: Included In RePower KIT RePower BULK OPTION: 90014

$2.49

$

In Stock, Qty 20+

0

11

Echo 13132840630

HOLDER, VENT

$7.49

$

In Stock, Qty 13

0

12

Echo 13201103360

CONNECTOR, PIPE

$3.49

$

In Stock, only 3 left!

0

13

Echo 13201056330

PIPE, FUEL RETURN 3×6×90 MM CLEAR

Note: Included In RePower KIT RePower BULK OPTION: 90017

$3.49

$

In Stock, Qty 11

0

14

Echo V137000030

GROMMET, FUEL
(Superseded to 13211546730)

Note: Included In RePower KIT

$2.49

$

In Stock, Qty 20+

0

15

Echo A350000640

TANK ASSY, FUEL
(Superseded to A350002540)

Note: Includes ITEM 16

$29.99

$

In Stock, only 2 left!

0

16

Echo 13104528230

SPACER 6.2×7.8×6

$1.99

$

In Stock, Qty 20+

0

17

Echo 90098

FUEL SYSTEM KIT
(Superseded to 90098Y)

$22.99

$

In Stock, Qty 13

0

18

Echo 90074

TUNE-UP KIT - REPOWER
(Superseded to 90152)

$21.99

$

In Stock, Qty 20+

0

18

Echo 90074C

TUNE-UP KIT - REPOWER
(Superseded to 90152)

Note: CANADA MODELS

$21.99

$

In Stock, Qty 20+

0
