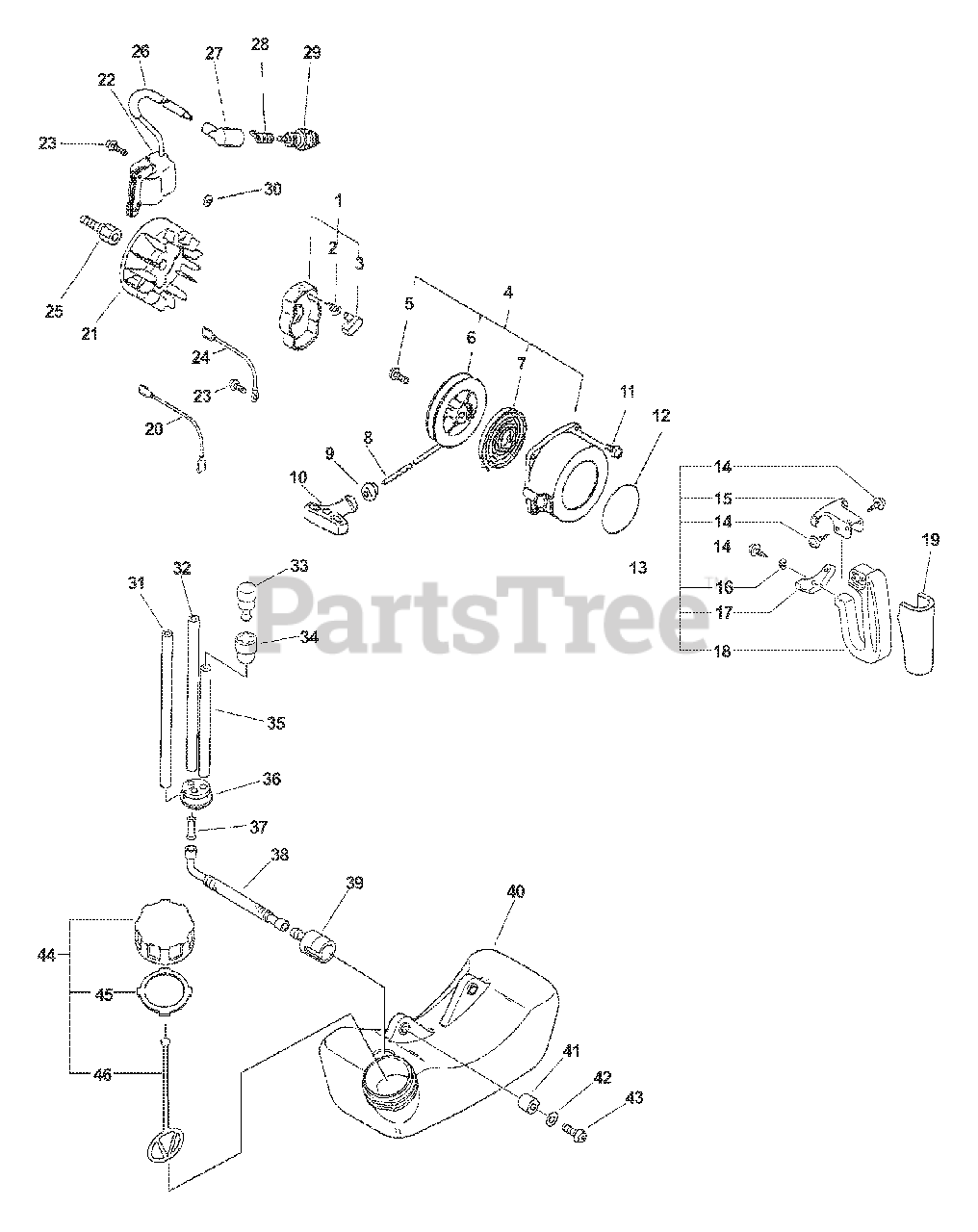

ES-2100 - Echo Shred N Vac Blower (Type 1) Clutch, Fuel System, Ignition, Starter Parts Diagram

Shred N Vac Blower (Type 1)

Clutch, Fuel System, Ignition, Starter Parts Diagram

  • Title

1

Echo 17720244330

STARTER PAWL ASSY
(Superseded to 17720244331)

Note: INCLUDES ITEMS 2-3

$18.99

$

In Stock, only 4 left!

0

2

Echo 17723412220

SPRING, RETURN

$4.49

$

In Stock, Qty 20+

0

3

Echo 17721844330

PAWL, STARTER - BLACK

$3.99

$

In Stock, Qty 20+

0

4

Echo 17720042033

STARTER ASSY

Note: INCLUDES ITEMS 5-10

$54.99

$

In Stock, Qty 20+

0

5

Echo 17723644330

SCREW

$3.99

$

In Stock, Qty 10

0

6

Echo 17721544430

REEL, ROPE

$9.99

$

In Stock, only 3 left!

0

7

Echo 17722042030

SPRING, REWIND
(Superseded to P022019680)

$10.99

$

In Stock, Qty 20+

0

8

------------------

ROPE, STARTER - 3X890

Note: RePower BULK OPTION: 99944440000

$

$

Not available

9

Echo 17722742030

GUIDE, ROPE

$2.99

$

Usually ships in 2-4 days

0

10

Echo 17722806530

GRIP, STARTER

$5.49

$

In Stock, Qty 8

0

11

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

$1.99

$

In Stock, Qty 20+

0

12

Echo 89011849130

LABEL - ECHO
(Superseded to X502000190)

$0.99

$

In Stock, Qty 20+

0

13

Echo 35100005060

HANDLE ASSY - REAR

Note: Includes ITEMS 14-18

$13.99

$

In Stock, only 1 left!

0

14

Echo 90025305016

SCREW - 5X16 -- TAPPING

$0.99

$

In Stock, Qty 20+

0

15

Echo 35101105060

BRACKET, HANDLE - UPPER

$8.99

$

Usually ships in 2-4 days

0

16

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 10

0

17

Echo 35102805060

BRACKET, HANDLE - LOWER

$3.49

$

In Stock, only 1 left!

0

18

Echo 35101005060

HANDLE - REAR

$4.49

$

Usually ships in 2-4 days

0

19

Echo 35121354330

GRIP, HANDLE

$

$

Not available

20

Echo 16201020660

LEAD - IGNITION

Note: TYPE 1/1E S/N 001001 - 549732,CANADA 001001 - 025597

$10.99

$

In Stock, only 1 left!

0

21

Echo 15880020560

FLYWHEEL
(Superseded to Discontinued)

Note: TYPE 1/1E S/N 001001 - 549732,CANADA 001001 - 025597

$

$

Not available

22

Echo 15862606361

COIL, IGNITION
(Superseded to A411000020)

Note: TYPE 1/1E S/N 001001 - 549732,CANADA 001001 - 025597

$88.99

$

Usually ships in 2-4 days

0

20

Echo V485000040

LEAD - IGNITION

Note: TYPE 1E S/N 549733 & UP,CANADA 025598 & UP

$10.99

$

Usually ships in 2-4 days

0

21

Echo A409000100

FLYWHEEL

Note: TYPE 1E S/N 549733 & UP,CANADA 025598 & UP

$63.99

$

Usually ships in 2-4 days

0

22

Echo A411000020

COIL, IGNITION
(Superseded to A411000021)

Note: TYPE 1E S/N 549733 & UP,CANADA 025598 & UP

$88.99

$

Usually ships in 2-4 days

0

23

Echo 90016204022

SCREW - 4X22

$0.99

$

In Stock, Qty 20+

0

24

Echo 16202120660

LEAD - GROUND
(Superseded to Discontinued)

$

$

Not available

25

Echo 20001105661

HUB, FAN

$17.99

$

In Stock, only 1 left!

0

26

Echo 15661105060

TUBE

$1.99

$

In Stock, Qty 5

0

27

Echo 15901201620

CAP, SPARK PLUG

$1.99

$

In Stock, Qty 8

0

28

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

29

Echo 99944500071

SPARK PLUG -- BPM-7Y

$

$

Not available

29

Echo 15901010230

SPARK PLUG -- BPMR-7A

Note: CANADA MODELS

$3.99

$

In Stock, Qty 20+

0

30

Echo 10153154330

SPACER

$2.99

$

Usually ships in 2-4 days

0

31

Echo 13201056330

PIPE - 3X6X90 -- CLEAR

Note: RePower BULK OPTION: 90017

$2.99

$

In Stock, Qty 20+

0

32

Echo V471001210

PIPE - 3X5X90 -- BLACK
(Superseded to V471001211)

Note: RePower BULK OPTION: 90014

$0.99

$

In Stock, Qty 20+

0

33

Echo A356000031

VENT, FUEL TANK

$8.99

$

In Stock, Qty 20+

0

34

Echo 13132840630

COVER, VENT

$6.99

$

In Stock, Qty 7

0

35

Echo V471001200

PIPE - 3X5X70 -- BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$2.49

$

In Stock, Qty 20+

0

36

Echo V137000030

GROMMET
(Superseded to 13211546730)

$2.49

$

In Stock, Qty 20+

0

37

Echo 13201103360

CONNECTOR, PIPE

$3.49

$

In Stock, Qty 16

0

38

Echo 13201212361

PIPE, FUEL - CORRUGATED
(Superseded to 13201212362)

$3.99

$

In Stock, Qty 20+

0

39

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

$6.49

$

In Stock, Qty 20+

0

40

Echo A350000640

FUEL TANK ASSY
(Superseded to A350002540)

$27.99

$

In Stock, only 2 left!

0

41

Echo 13104528230

SLEEVE

$1.49

$

In Stock, Qty 8

0

42

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

43

Echo 90023805016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

44

Echo 13100455830

CAP ASSY
(Superseded to P200000830)

Note: INCLUDES ITEMS 45-46

$4.99

$

In Stock, Qty 8

0

45

Echo 13101655830

GASKET, CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

46

Echo 13105156030

CONNECTOR, CAP

$1.49

$

In Stock, Qty 20+

0
