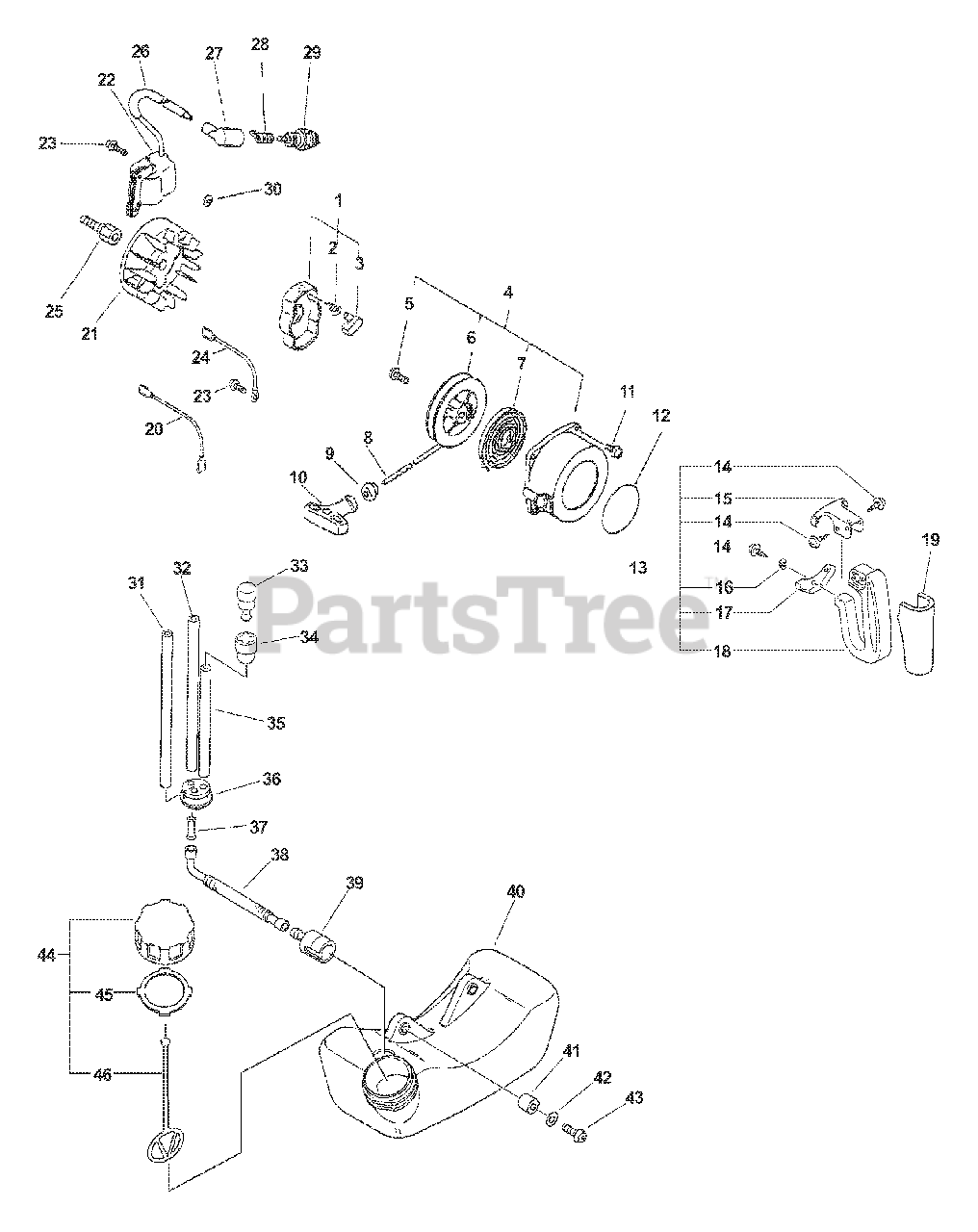

ES-2100 - Echo Shred N Vac Blower (Type 1) Clutch, Fuel System, Ignition, Starter Parts Diagram

Shred N Vac Blower (Type 1)

Clutch, Fuel System, Ignition, Starter Parts Diagram

  • Title

1

Echo 177202-44330

PAWL ASSY, STARTER

Note: INCLUDES ITEMS 2-3

$11.99

$

In Stock, Qty 9

0

2

Echo 17723412220

SPRING, RETURN

$4.99

$

In Stock, Qty 13

0

3

Echo 177218-44330

PAWL, STARTER - BLACK

$4.49

$

In Stock, Qty 20+

0

4

Echo 177200-42033

STARTER ASSY, RECOIL

Note: INCLUDES ITEMS 5-10

$58.99

$

In Stock, Qty 10

0

5

Echo 177236-44330

SCREW
(Superseded to 17723644330)

$3.99

$

In Stock, Qty 10

0

6

Echo 177215-44430

REEL, ROPE

$10.99

$

In Stock, Qty 7

0

7

Echo 177220-42030

SPRING, RECOIL
(Superseded to P022019680)

$11.99

$

In Stock, Qty 10

0

------------------

ROPE, STARTER 3.0×890

Note: RePower BULK OPTION: 99944440000

$

$

Not available

9

Echo 177227-42030

GUIDE, ROPE
(Superseded to 17722742030)

$2.99

$

Usually ships in 2-4 days

0

10

Echo 177228-06530

GRIP, STARTER

$5.99

$

In Stock, Qty 5

0

11

Echo 90016304016

BOLT 4×16
(Superseded to V202000830)

$1.99

$

In Stock, Qty 18

0

12

Echo 890118-49130

LABEL, ECHO

$0.99

$

In Stock, Qty 20+

0

13

Echo 35100005060

HANDLE ASSY, SIDE

Note: Includes ITEMS 14-18

$14.99

$

In Stock, only 2 left!

0

14

Echo 90025305016

SCREW 5×16

$0.99

$

In Stock, Qty 20+

0

15

Echo 35101105060

BRACKET, UPPER HANDLE

$9.99

$

Usually ships in 2-4 days

0

16

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

17

Echo 35102805060

BRACKET, LOWER HANDLE

$3.49

$

Usually ships in 2-4 days

0

18

Echo 35101005060

HANDLE

$4.99

$

Usually ships in 2-4 days

0

19

Echo 35121354330

GRIP, HANDLE

$

$

Not available

20

Echo 16201020660

LEAD - GROUND

Note: TYPE 1/1E S/N 001001 - 549732,CANADA 001001 - 025597

$11.99

$

In Stock, only 1 left!

0

21

Echo 15880020560

FLYWHEEL
(Superseded to Discontinued)

Note: TYPE 1/1E S/N 001001 - 549732,CANADA 001001 - 025597

$

$

Not available

22

Echo 15862606361

COIL, IGNITION
(Superseded to A411000020)

Note: TYPE 1/1E S/N 001001 - 549732,CANADA 001001 - 025597

$95.99

$

Usually ships in 2-4 days

0

20

Echo V485000040

LEAD - IGNITION

Note: TYPE 1E S/N 549733 & UP,CANADA 025598 & UP

$11.99

$

Usually ships in 2-4 days

0

21

Echo A409000100

FLYWHEEL

Note: TYPE 1E S/N 549733 & UP,CANADA 025598 & UP

$68.99

$

Usually ships in 2-4 days

0

22

Echo A411000020

COIL, IGNITION
(Superseded to A411000021)

Note: TYPE 1E S/N 549733 & UP,CANADA 025598 & UP

$95.99

$

Usually ships in 2-4 days

0

23

Echo 90016204022

SCREW 4×22

$0.99

$

In Stock, Qty 20+

0

24

Echo 16202120660

LEAD
(Superseded to Discontinued)

$

$

Not available

25

Echo 20001105661

HUB, FAN

$18.99

$

In Stock, only 1 left!

0

26

Echo 15661105060

PIPE

$1.99

$

In Stock, Qty 5

0

27

Echo 159012-01620

CAP, SPARK PLUG

$1.99

$

In Stock, Qty 11

0

28

Echo 159011-03432

TERMINAL, SPARK PLUG
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

29

Echo 99944500071

SPARK PLUG - BPM-7Y

$

$

Not available

29

Echo 15901010230

SPARK PLUG - BPMR7A

Note: CANADA MODELS

$3.99

$

In Stock, Qty 20+

0

30

Echo 10153154330

COLLAR

$2.99

$

Usually ships in 2-4 days

0

31

Echo 13201056330

PIPE, FUEL RETURN 3×6×90 MM CLEAR

Note: RePower BULK OPTION: 90017

$3.49

$

In Stock, Qty 10

0

32

Echo V471001210

PIPE, FUEL 3×5×90 BLACK
(Superseded to V471001211)

Note: RePower BULK OPTION: 90014

$0.99

$

In Stock, Qty 20+

0

33

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

34

Echo 13132840630

HOLDER, VENT

$7.49

$

In Stock, Qty 13

0

35

Echo V471001200

PIPE, FUEL 3x-5x-70 BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$2.49

$

In Stock, Qty 20+

0

36

Echo V137000030

GROMMET, FUEL
(Superseded to 13211546730)

$2.49

$

In Stock, Qty 20+

0

37

Echo 13201103360

CONNECTOR, PIPE

$3.49

$

In Stock, only 3 left!

0

38

Echo 13201212361

PIPE, FUEL 3×7×100 FLEXIBLE
(Superseded to 13201212362)

$4.49

$

In Stock, Qty 10

0

39

Echo 131205-07320

FILTER, FUEL

$6.49

$

In Stock, Qty 20+

0

40

Echo A350000640

TANK ASSY, FUEL
(Superseded to A350002540)

$29.99

$

In Stock, only 2 left!

0

41

Echo 13104528230

SPACER 6.2×7.8×6

$1.99

$

In Stock, Qty 20+

0

42

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

43

Echo 90023805016

SCREW 5×16

$0.99

$

In Stock, Qty 20+

0

44

Echo 13100455830

CAP ASSY, FUEL
(Superseded to P200000830)

Note: INCLUDES ITEMS 45-46

$5.49

$

In Stock, only 2 left!

0

45

Echo 131016-55830

GASKET, FUEL CAP

$

$

Not available

46

Echo 13105156030

CONNECTOR, CAP L= 100 MM

$1.49

$

In Stock, Qty 6

0
