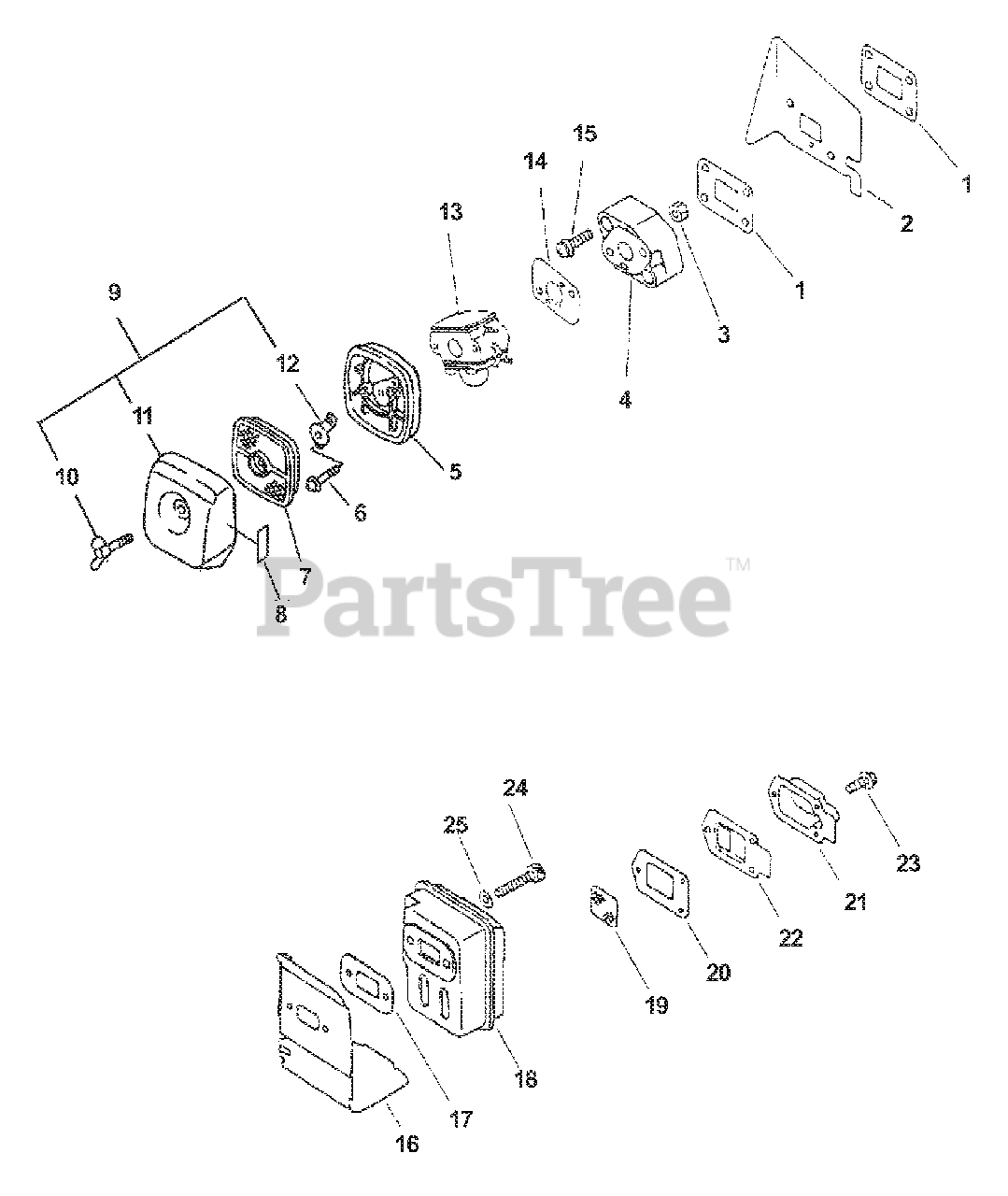

ES-2100 - Echo Shred N Vac Blower (Type 1) Intake, Air Cleaner, Exhaust Parts Diagram

Shred N Vac Blower (Type 1)

Intake, Air Cleaner, Exhaust Parts Diagram

  • Title

1

Echo 13001009561

GASKET, INTAKE

Note: INCLUDED IN KIT 88900020560

$3.49

$

Usually ships in 2-4 days

0

2

Echo 10151420560

HEAT SHIELD, INTAKE

$3.49

$

In Stock, only 2 left!

0

3

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

4

Echo 13001705062

INSULATOR, INTAKE

$7.49

$

In Stock, only 2 left!

0

5

Echo 13030706561

AIR FILTER CASE ASSY
(Superseded to P021002921)

$14.99

$

In Stock, Qty 9

0

6

Echo 90024205065

SCREW 5×65

$0.99

$

In Stock, Qty 20+

0

7

Echo 13031054130

FILTER, AIR - SINGLE LAYER
(Superseded to A226001410)

$8.99

$

In Stock, Qty 20+

0

8

Echo 89012106360

LABEL, CHOKE

$1.99

$

In Stock, only 4 left!

0

8

Echo 89012105360

LABEL, CHOKE

Note: CANADA MODELS

$1.99

$

In Stock, only 4 left!

0

9

Echo 13030206561

COVER, AIR FILTER

Note: Includes ITEMS 10-12

$9.49

$

In Stock, only 2 left!

0

10

Echo 21041752730

BOLT, WING 5×20

$1.99

$

In Stock, Qty 14

0

11

Echo 13031306563

COVER, AIR FILTER - GRAY

$7.99

$

In Stock, Qty 20+

0

12

Echo 12901152730

PLATE, PREVENT

$4.49

$

In Stock, Qty 5

0

13

Echo 12520020660

CARBURETOR - C1U-K43
(Superseded to 12520020661)

$83.99

$

In Stock, only 1 left!

0

14

Echo 13001020560

GASKET, INTAKE

Note: INCLUDED IN KIT 88900020560

$2.99

$

In Stock, Qty 8

0

15

Echo 90023805022

SCREW 5×22

$0.99

$

In Stock, only 4 left!

0

16

Echo 14587105760

COVER, MUFFLER

$13.99

$

Usually ships in 2-4 days

0

17

Echo V104000160

GASKET, EXHAUST

Note: INCLUDED IN KIT 88900020560

$2.49

$

In Stock, Qty 20+

0

18

Echo 145806-42030

MUFFLER

$55.99

$

In Stock, only 1 left!

0

19

Echo 14586240630

SCREEN, SPARK ARRESTER

$2.49

$

In Stock, Qty 6

0

20

Echo 145866-42031

GASKET, EXHAUST

Note: TYPE 1/1E S/N 001001 - 536090,CANADA S/N 001001 - 023553; INCLUDED IN KIT 88900020560

$2.99

$

In Stock, only 2 left!

0

21

Echo 14587420560

GUIDE, EXHAUST

Note: TYPE 1/1E S/N 001001 - 536090,CANADA S/N 001001 - 023553

$8.99

$

Usually ships in 2-4 days

0

20

Echo V104000003

GASKET, EXHAUST

Note: TYPE 1E S/N 536091 & UP,CANADA S/N 023554 & UP; INCLUDED IN KIT 88900020560

$3.49

$

In Stock, Qty 5

0

21

Echo A313000020

GUIDE, EXHAUST - INNER
(Superseded to A313000120)

Note: TYPE 1E S/N 536091 & UP,CANADA S/N 023554 & UP

$3.99

$

Usually ships in 2-4 days

0

22

Echo 14587642030

GUIDE, EXHAUST

$4.99

$

In Stock, only 3 left!

0

23

Echo 900242-04010

SCREW 4×10

$0.99

$

In Stock, Qty 20+

0

24

Echo 900105-05055

BOLT 5×55

$1.99

$

In Stock, Qty 20+

0

25

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

Echo 88900020560

GASKET KIT

$27.99

$

In Stock, only 2 left!

0
