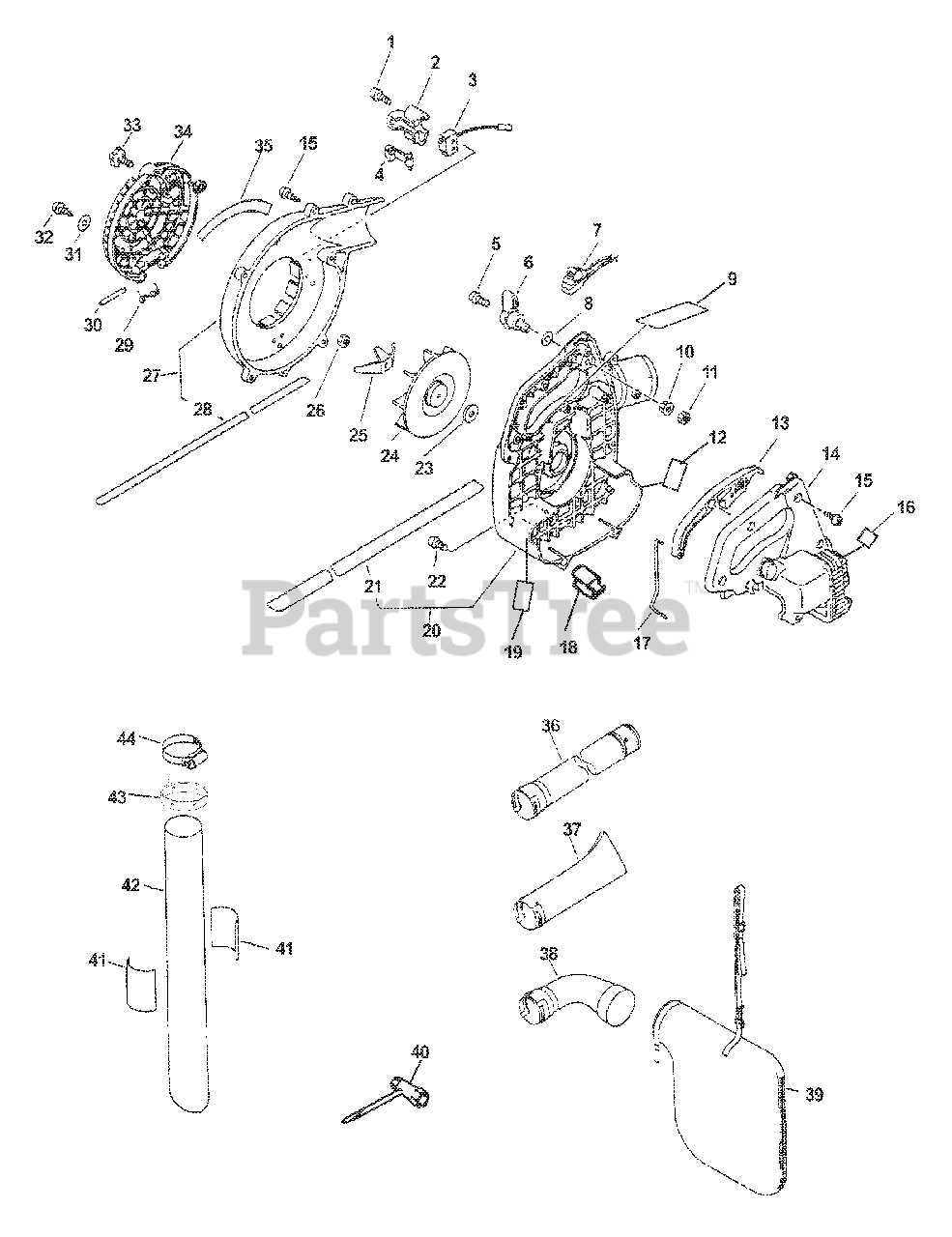

ES-2100 - Echo Shred N Vac Blower (Type 1E) Fan, Fan Cases, Engine Cover, Tubes, Tool Parts Diagram

Shred N Vac Blower (Type 1E)

Fan, Fan Cases, Engine Cover, Tubes, Tool Parts Diagram

  • Title

1

Echo 90025604022

SCREW 4×22

$0.99

$

In Stock, Qty 20+

0

2

Echo 16381020660

BRACKET, SWITCH

$11.99

$

In Stock, only 1 left!

0

3

Echo 16340020660

SWITCH, INTERLOCK

$12.99

$

Usually ships in 2-4 days

0

4

Echo 16333520660

LEVER, SHUT OFF ACTUATOR

$4.99

$

Usually ships in 2-4 days

0

5

Echo 900238-05025

SCREW 5×25

$0.99

$

In Stock, Qty 20+

0

6

Echo 17805420560

CONTROL, THROTTLE

$12.99

$

Usually ships in 2-4 days

0

7

Echo 16340120660

IGNITION SWITCH ASSY
(Superseded to 16340120661)

$15.99

$

Usually ships in 2-4 days

0

8

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

9

Echo 89016008761

LABEL, CAUTION

$3.49

$

Usually ships in 2-4 days

0

10

Echo 90051600005

NUT, FLANGE M5

$1.49

$

In Stock, Qty 20+

0

11

Echo 900502-00005

NUT M5

$0.99

$

In Stock, Qty 8

0

12

Echo 89022808760

LABEL - CAUTION -- SPANISH
(Superseded to 89016009461)

$1.99

$

In Stock, Qty 15

0

13

Echo 17801020560

CONTROL, THROTTLE

$8.99

$

In Stock, Qty 5

0

14

Echo 10401220560

COVER, ENGINE
(Superseded to 10401220561)

$30.99

$

Usually ships in 2-4 days

0

15

Echo 90025305020

SCREW, TAPPING 5×20

$1.99

$

In Stock, Qty 20+

0

16

Echo X505002310

LABEL, CAUTION - HOT

$2.49

$

In Stock, only 2 left!

0

17

Echo 17801120561

ROD, THROTTLE

$7.99

$

In Stock, Qty 14

0

18

Echo 35133520560

CUSHION

$7.49

$

In Stock, only 2 left!

0

19

Echo 89016003360

LABEL - CAUTION
(Superseded to 89016009461)

$1.99

$

In Stock, Qty 15

0

20

Echo 20010820661

FAN COVER ASSY - RIGHT
(Superseded to 20010820662)

Note: Includes ITEM 21

$47.99

$

Usually ships in 2-4 days

0

21

Echo 22012020660

CUSHION
(Superseded to 22012020661)

$9.99

$

Usually ships in 2-4 days

0

22

Echo 90016204022

SCREW 4×22

$0.99

$

In Stock, Qty 20+

0

23

Echo 10013205660

WASHER

$2.49

$

In Stock, only 1 left!

0

24

Echo 20001006363

FAN

$19.99

$

In Stock, only 2 left!

0

25

Echo 20018008761

SHREDDER

$11.99

$

In Stock, Qty 10

0

26

Echo 90050000008

NUT M8

$0.99

$

In Stock, Qty 20+

0

27

Echo 20010920661

FAN COVER ASSY - LEFT
(Superseded to 20010920662)

Note: Includes ITEM 28

$

$

Not available

28

Echo 22012020560

CUSHION
(Superseded to 22012020561)

$8.99

$

Usually ships in 2-4 days

0

29

Echo 20015205060

SPRING, COIL

$3.99

$

In Stock, only 1 left!

0

30

Echo 20015005060

PIN, INTAKE COVER

$3.49

$

Usually ships in 2-4 days

0

31

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

32

Echo 90025305014

SCREW 5×14

$1.49

$

In Stock, Qty 5

0

33

Echo 13040606360

THUMBSCREW
(Superseded to 13040620660)

$2.99

$

In Stock, Qty 20+

0

34

Echo 20012420661

COVER, INTAKE

$24.99

$

In Stock, only 2 left!

0

35

Echo 89011520660

LABEL - MODEL

$6.49

$

Usually ships in 2-4 days

0

36

Echo 21001505060

TUBE, BLOWER - STRAIGHT

$15.99

$

In Stock, only 3 left!

0

37

Echo 21001420560

TUBE, BLOWER - NOZZLE
(Superseded to 21001420561)

$11.99

$

In Stock, Qty 17

0

38

Echo 21501205060

ELBOW

$13.99

$

In Stock, only 2 left!

0

39

Echo 88081409460

BAG, DUST

$

$

Currently unavailable

40

Echo 89541006960

T-WRENCH 13×19×180
(Superseded to 89541006961)

$4.49

$

In Stock, only 2 left!

0

41

Echo 89013508760

LABEL - SHRED 'N' VAC

$3.49

$

Usually ships in 2-4 days

0

42

Echo 21002706562

TUBE, VACUUM
(Superseded to P021009410)

$

$

Not available

43

Echo 38515509660

SLEEVE

$10.99

$

Usually ships in 2-4 days

0

44

Echo 21041305060

CLAMP

$8.99

$

Usually ships in 2-4 days

0
