ES-211 - Echo Shred N Vac Blower (SN: 02001001 - 02999999) Engine, Short Block, Ignition Parts Diagram

Shred N Vac Blower

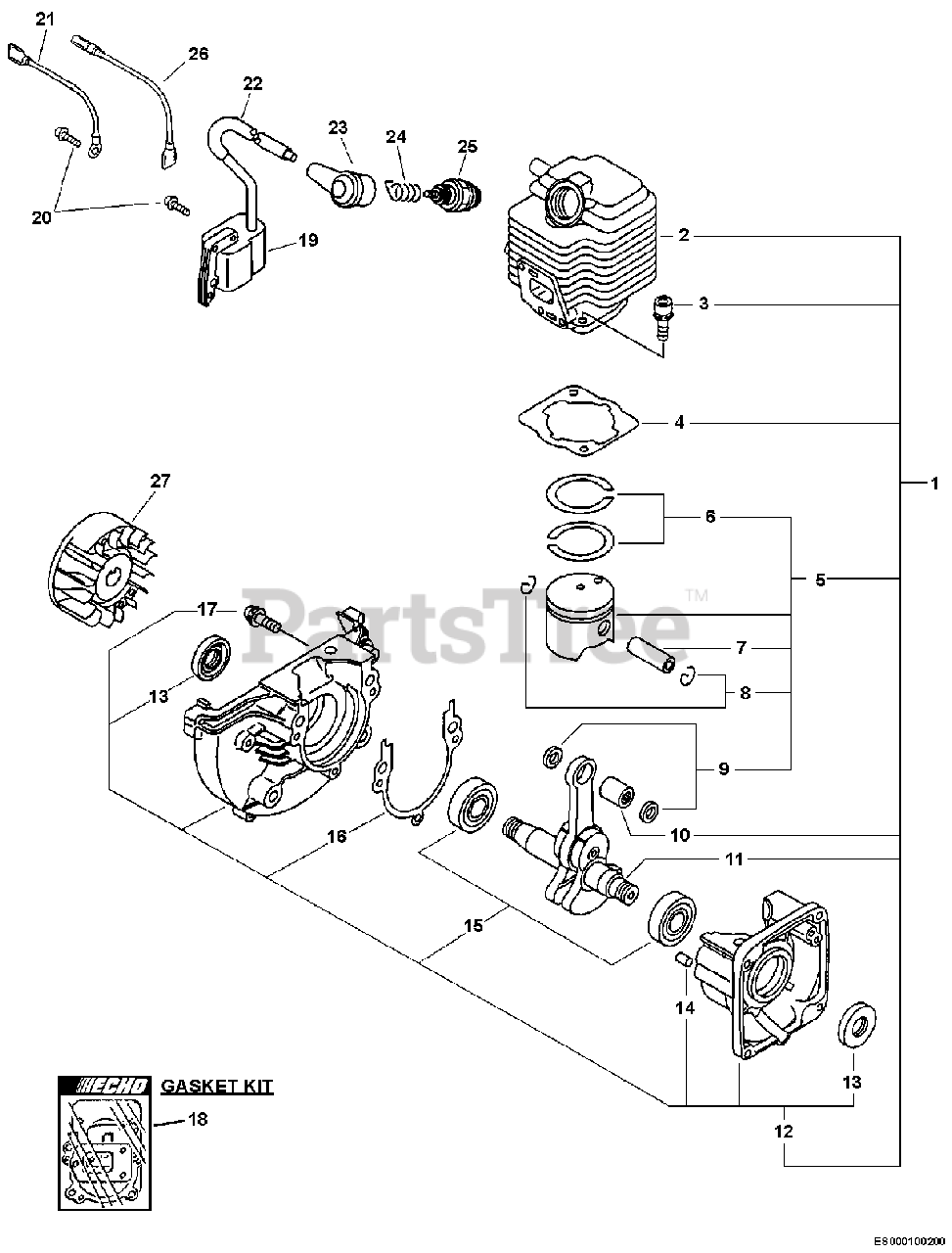

Engine, Short Block, Ignition Parts Diagram

  • Title

1

Echo SB1049

SHORT BLOCK

Note: INCLUDES 2-17 RePower OPTION

$198.99

$

Usually ships in 2-4 days

0

2

Echo A130000100

CYLINDER
(Superseded to A130000101)

$138.99

$

Usually ships in 2-4 days

0

3

Echo 900162-05022

BOLT 5×22

$0.99

$

In Stock, only 3 left!

0

4

Echo V100000020

GASKET, CYLINDER
(Superseded to Discontinued)

Note: Included In GASKET KIT

$

$

Not available

5

Echo P021000410

PISTON KIT

Note: Includes ITEMS 6-9

$

$

Currently unavailable

6

Echo A101000000

RING, PISTON

$10.99

$

In Stock, Qty 8

0

7

Echo 100013-11520

PIN, PISTON 8

$8.49

$

In Stock, only 2 left!

0

8

Echo 100015-04630

RING, SNAP
(Superseded to 10001504630)

$0.99

$

In Stock, Qty 20+

0

9

Echo 100014-11520

WASHER, THRUST

$3.99

$

In Stock, only 2 left!

0

10

Echo 10001251230

BEARING, NEEDLE
(Superseded to V553000010)

$11.99

$

In Stock, only 2 left!

0

11

Echo 10010044732

CRANKSHAFT ASSY
(Superseded to 10010044733)

$186.99

$

Usually ships in 2-4 days

0

12

Echo 10020452132

CRANKCASE KIT
(Superseded to 10020452133)

$

$

Not available

13

Echo 100212-42031

SEAL, OIL 12

$7.99

$

In Stock, only 4 left!

0

14

Echo V622000020

PIN, LOCATING 4

$0.99

$

In Stock, only 4 left!

0

15

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, only 3 left!

0

16

Echo 100242-42030

GASKET, CRANKCASE

Note: Included In GASKET KIT

$1.99

$

In Stock, Qty 17

0

17

Echo 900162-05028

BOLT 5×28

$2.49

$

In Stock, Qty 10

0

18

Echo P021001621

GASKET KIT
(Superseded to P021001622)

$20.99

$

Usually ships in 2-4 days

0

19

Echo A411000020

COIL, IGNITION
(Superseded to A411000021)

$95.99

$

Usually ships in 2-4 days

0

20

Echo 90016204022

SCREW 4×22

$0.99

$

In Stock, Qty 20+

0

21

Echo V485000040

LEAD - IGNITION

$11.99

$

Usually ships in 2-4 days

0

22

Echo 15661105060

PIPE

$1.99

$

In Stock, Qty 5

0

23

Echo 159012-01620

CAP, SPARK PLUG

$1.99

$

In Stock, only 2 left!

0

24

Echo 159011-03432

TERMINAL, SPARK PLUG
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

25

Echo 99944500071

SPARK PLUG - BPM-7Y

$

$

Not available

26

Echo 16202120660

LEAD
(Superseded to Discontinued)

$

$

Not available

27

Echo A409000000

FLYWHEEL
(Superseded to A409000100)

$68.99

$

Usually ships in 2-4 days

0
