ES-211 - Echo Shred N Vac Blower (SN: 09001001 - 09999999) Fan Case, Engine Cover, Fuel System Parts Diagram

Shred N Vac Blower

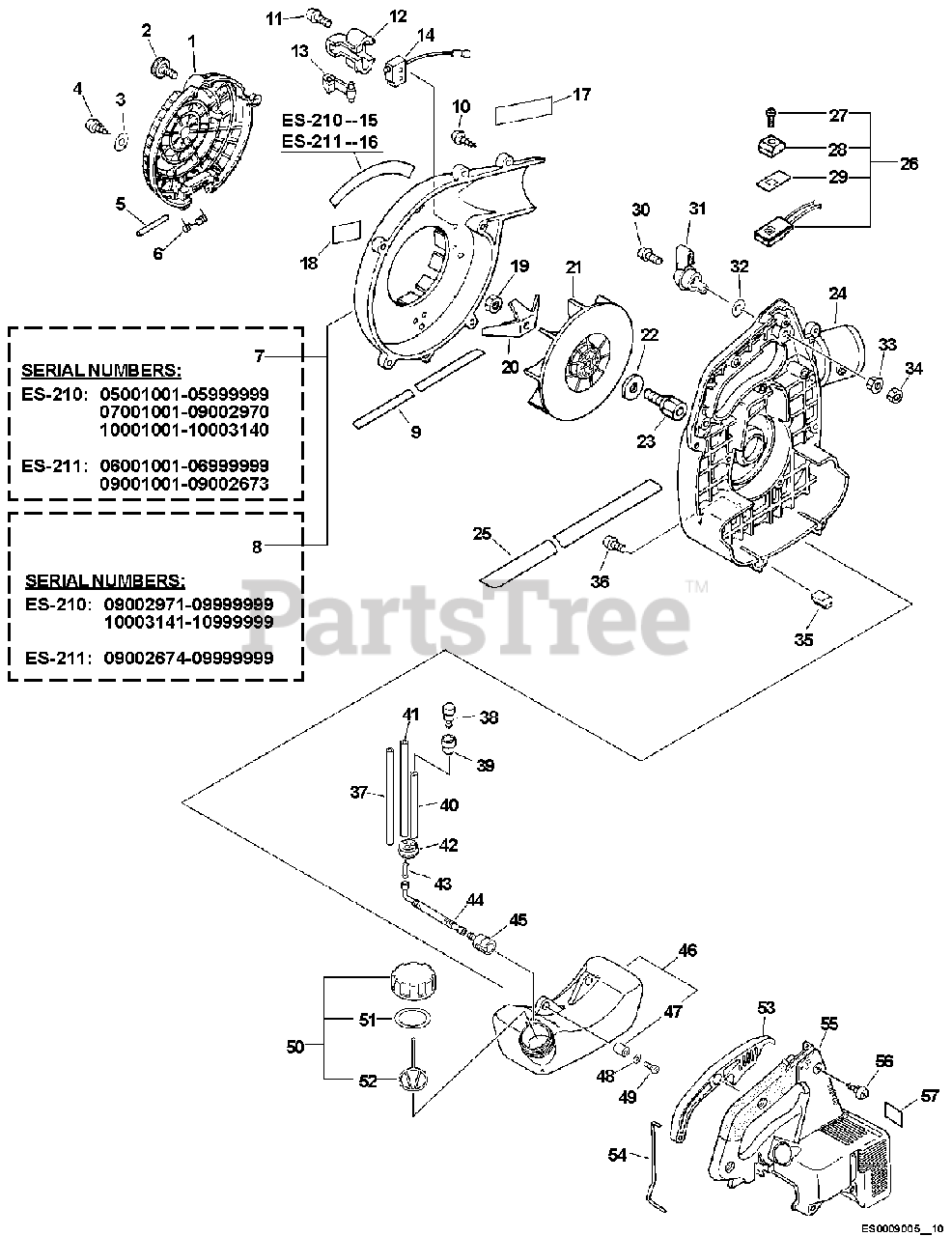

Fan Case, Engine Cover, Fuel System Parts Diagram

  • Title

1

Echo 20012420661

COVER, INTAKE

$24.99

$

In Stock, only 2 left!

0

2

Echo 13040620660

THUMBSCREW
(Superseded to V299000290)

$2.99

$

In Stock, Qty 20+

0

3

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

4

Echo 90025305014

SCREW 5×14

$1.49

$

In Stock, Qty 5

0

5

Echo 20015005060

PIN, INTAKE COVER

$3.49

$

Usually ships in 2-4 days

0

6

Echo 20015205060

SPRING, COIL

$3.99

$

In Stock, only 1 left!

0

7

Echo P021009410

COVER, FAN - LEFT -- GRAY
(Superseded to Discontinued)

$

$

Not available

8

Echo 20011120664

COVER, FAN - LEFT -- GRAY

$

$

Not available

9

Echo 22012020561

CUSHION

Note: S/N: 05001001-07999999 ONLY

$8.99

$

Usually ships in 2-4 days

0

10

Echo 90025305020

SCREW, TAPPING 5×20

$1.99

$

In Stock, Qty 20+

0

11

Echo 90025604022

SCREW 4×22

$0.99

$

In Stock, Qty 20+

0

12

Echo 16381020660

BRACKET, SWITCH

$11.99

$

In Stock, only 1 left!

0

13

Echo 16333520660

LEVER, SHUT OFF ACTUATOR

$4.99

$

Usually ships in 2-4 days

0

14

Echo 16340020660

SWITCH, INTERLOCK

$12.99

$

Usually ships in 2-4 days

0

15

Echo X503003740

LABEL - MODEL ES-210
(Superseded to X503003741)

$4.99

$

Usually ships in 2-4 days

0

16

Echo X503001320

LABEL, MODEL

$4.49

$

Usually ships in 2-4 days

0

17

Echo 89016009461

LABEL, CAUTION - ISO

$1.99

$

In Stock, Qty 15

0

18

Echo X508000140

LABEL, NOISE - 71DB(A) CAT. III

$1.49

$

In Stock, Qty 8

0

19

Echo 90050000008

NUT M8

$0.99

$

In Stock, Qty 20+

0

20

Echo 20018008761

SHREDDER

$11.99

$

In Stock, Qty 10

0

21

Echo 20001006363

FAN

$19.99

$

In Stock, only 2 left!

0

22

Echo 10013205660

WASHER

$2.49

$

In Stock, only 1 left!

0

23

Echo 20001105661

HUB, FAN

$18.99

$

In Stock, only 1 left!

0

24

Echo P021003702

FAN COVER ASSY - RIGHT -- GRAY

$47.99

$

Usually ships in 2-4 days

0

25

Echo 22012020661

CUSHION

Note: S/N: 05001001-07999999 ONLY

$9.99

$

Usually ships in 2-4 days

0

26

Echo 16340120561

CABLE ASSY, CONTROL
(Superseded to P021015460)

Note: INCLUDES ITEMS 27-29

$5.49

$

Usually ships in 2-4 days

0

27

Echo 9154503010

SCREW 3×10

$0.99

$

In Stock, Qty 20+

0

28

Echo 16341049231

KNOB, SWITCH - ORANGE

$4.99

$

In Stock, Qty 19

0

29

Echo 89015712330

LABEL, SWITCH

$3.99

$

In Stock, only 1 left!

0

30

Echo 900238-05025

SCREW 5×25

$0.99

$

In Stock, Qty 20+

0

31

Echo 17805420560

CONTROL, THROTTLE

$12.99

$

Usually ships in 2-4 days

0

32

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

33

Echo 90051600005

NUT, FLANGE M5

$1.49

$

In Stock, Qty 20+

0

34

Echo 900502-00005

NUT M5

$0.99

$

In Stock, Qty 8

0

35

Echo 35133520560

CUSHION

$7.49

$

In Stock, only 2 left!

0

36

Echo 90016204022

SCREW 4×22

$0.99

$

In Stock, Qty 20+

0

37

Echo 13201056330

PIPE, FUEL RETURN 3×6×90 MM CLEAR

Note: Included In RePower KIT RePower BULK OPTION: 90017

$3.49

$

In Stock, Qty 10

0

38

Echo A356000031

VENT ASSY

Note: Also Included In REPOWER FUEL SYSTEM KIT

$9.49

$

In Stock, Qty 20+

0

39

Echo 13132840630

HOLDER, VENT

$7.49

$

In Stock, Qty 13

0

40

Echo V471001200

PIPE, FUEL 3x-5x-70 BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$2.49

$

In Stock, Qty 20+

0

41

Echo V471001210

PIPE, FUEL 3×5×90 BLACK
(Superseded to V471001211)

Note: RePower BULK OPTION: 90014

$0.99

$

In Stock, Qty 20+

0

42

Echo V137000030

GROMMET, FUEL
(Superseded to 13211546730)

Note: Also Included In REPOWER FUEL SYSTEM KIT

$2.49

$

In Stock, Qty 20+

0

43

Echo 13201103360

CONNECTOR, PIPE

$3.49

$

In Stock, only 3 left!

0

44

Echo 13201212361

PIPE, FUEL 3×7×100 FLEXIBLE
(Superseded to 13201212362)

Note: Also Included In REPOWER FUEL SYSTEM KIT

$4.49

$

In Stock, Qty 10

0

45

Echo 131205-07320

FILTER, FUEL

Note: Also Included In REPOWER TUNE-UP KIT & FUEL SYSTEM KIT

$6.49

$

In Stock, Qty 20+

0

46

Echo A350000640

TANK ASSY, FUEL
(Superseded to A350002540)

Note: Includes ITEM 47

$29.99

$

In Stock, only 2 left!

0

47

Echo 13104528230

SPACER 6.2×7.8×6

$1.99

$

In Stock, Qty 20+

0

48

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

49

Echo 90023805016

SCREW 5×16

$0.99

$

In Stock, Qty 20+

0

50

Echo 13100455530

CAP ASSY, FUEL
(Superseded to P100006640)

Note: Includes ITEMS 50-52

$7.49

$

In Stock, Qty 9

0

51

Echo 131016-55830

GASKET, FUEL CAP

$

$

Not available

52

Echo 13105156030

CONNECTOR, CAP L= 100 MM

$1.49

$

In Stock, Qty 6

0

53

Echo 17801020560

CONTROL, THROTTLE

$8.99

$

In Stock, Qty 5

0

54

Echo 17801120561

ROD, THROTTLE

$7.99

$

In Stock, Qty 14

0

55

Echo A190000032

COVER, ENGINE

$23.99

$

In Stock, only 2 left!

0

56

Echo 90025305020

SCREW, TAPPING 5×20

$1.99

$

In Stock, Qty 20+

0

57

Echo X505002310

LABEL, CAUTION - HOT

$2.49

$

In Stock, only 2 left!

0
