ES-230 - Echo Shred N Vac Blower (SN: 07001001 - 07999999) Starter, Rear Handle, Fuel System Parts Diagram

Shred N Vac Blower

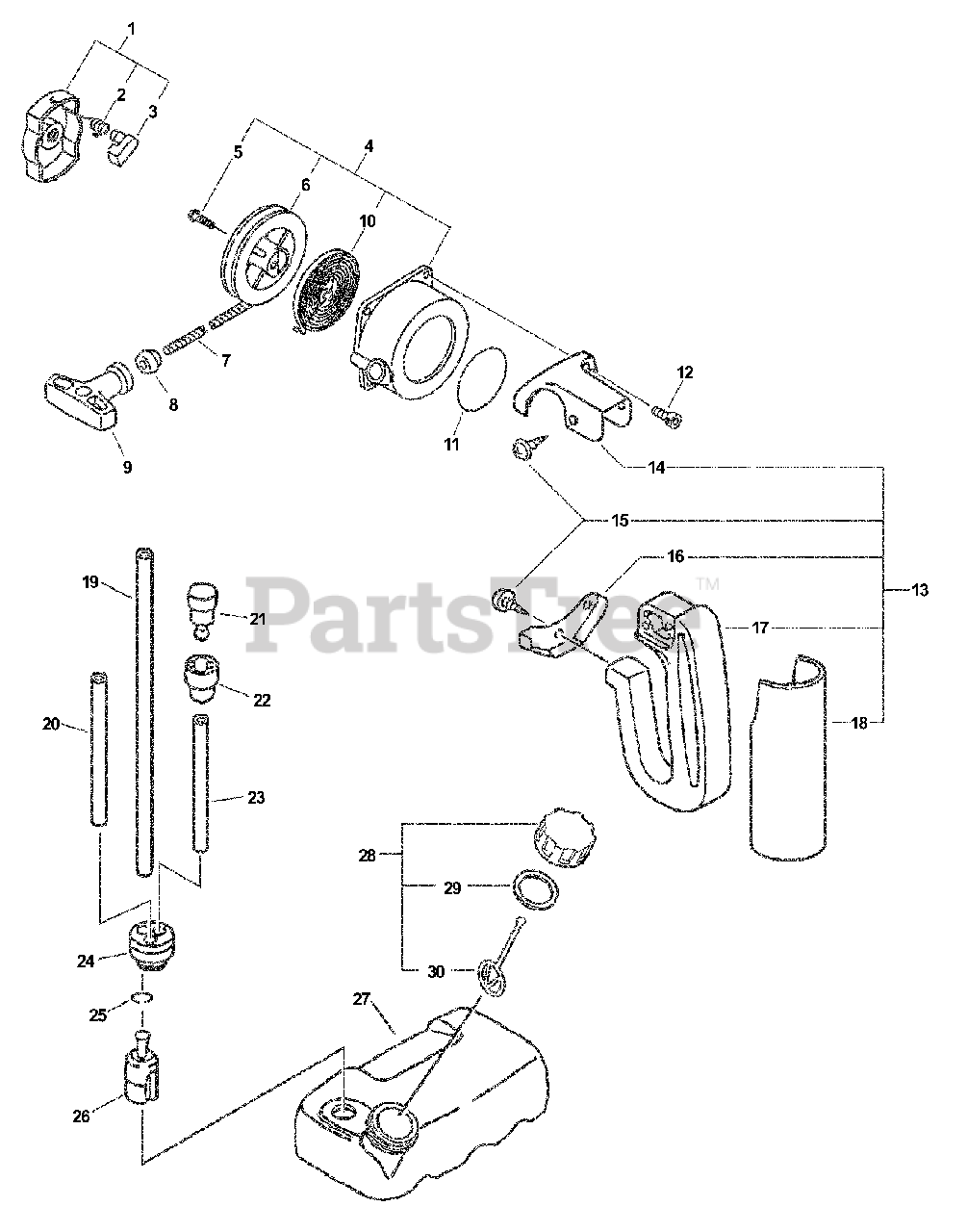

Starter, Rear Handle, Fuel System Parts Diagram

  • Title

1

Echo 17720244331

PAWL ASSY, STARTER
(Superseded to 17720212220)

Note: INCLUDES ITEMS 2-3

$19.99

$

In Stock, only 2 left!

0

2

Echo 17723412220

SPRING, RETURN

$4.99

$

In Stock, Qty 13

0

3

Echo 177218-44330

PAWL, STARTER - BLACK

$4.49

$

In Stock, Qty 20+

0

4

Echo 17720009560

STARTER ASSY

Note: INCLUDES ITEMS 5-10

$48.99

$

In Stock, only 2 left!

0

5

Echo 177236-44330

SCREW
(Superseded to 17723644330)

$3.99

$

In Stock, Qty 10

0

6

Echo 17721505960

REEL, ROPE

$15.99

$

In Stock, only 2 left!

0

7

Echo 17722605310

ROPE, STARTER

Note: RePower BULK OPTION: 99944445000

$6.49

$

In Stock, only 3 left!

0

8

Echo 17722709560

GUIDE, ROPE

$4.99

$

Usually ships in 2-4 days

0

9

Echo 177228-06530

GRIP, STARTER

$5.99

$

In Stock, Qty 5

0

10

Echo 177220-42030

SPRING, RECOIL
(Superseded to P022019680)

$11.99

$

In Stock, Qty 10

0

11

Echo 89011849330

LABEL, ECHO

$7.49

$

In Stock, only 2 left!

0

12

Echo 90016304018

BOLT 4×18

$1.49

$

In Stock, Qty 8

0

13

Echo P021001200

SIDE HANDLE ASSY

Note: Includes ITEMS 14-18

$32.99

$

Usually ships in 2-4 days

0

14

Echo C405000010

BRACKET, HANDLE

$6.99

$

Usually ships in 2-4 days

0

15

Echo 90025305016

SCREW 5×16

$0.99

$

In Stock, Qty 20+

0

16

Echo C405000000

BRACKET, HANDLE

$2.99

$

Usually ships in 2-4 days

0

17

Echo 35101005060

HANDLE

$4.99

$

Usually ships in 2-4 days

0

18

Echo 35121354330

GRIP, HANDLE

$

$

Not available

19

Echo 43721015130

PIPE, FUEL 3×6×200

Note: RePower BULK OPTION: 90015

$

$

Not available

20

Echo 13201014010

PIPE, FUEL 3×6×100

Note: RePower BULK OPTION: 90017

$3.49

$

In Stock, Qty 5

0

21

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

22

Echo 13132840630

HOLDER, VENT

$7.49

$

In Stock, Qty 13

0

23

Echo 43721720760

PIPE, FUEL 3×6×100
(Superseded to 43721720761)

Note: RePower BULK OPTION: 90015

$6.49

$

In Stock, only 2 left!

0

24

Echo 13211555930

GROMMET, FUEL
(Superseded to 13211555931)

$2.99

$

In Stock, Qty 17

0

25

Echo V490001230

CLIP Ø6.5 MM

$0.99

$

In Stock, Qty 20+

0

26

Echo 13120519831

FILTER, FUEL
(Superseded to 13120519832)

$9.99

$

In Stock, Qty 20+

0

27

Echo A350000023

TANK, FUEL
(Superseded to A350000650)

$25.99

$

Usually ships in 2-4 days

0

28

Echo 13100455530

CAP ASSY, FUEL
(Superseded to P100006640)

Note: INCLUDES ITEMS 29-30

$7.49

$

In Stock, Qty 9

0

29

Echo 131016-55830

GASKET, FUEL CAP

$

$

Not available

30

Echo 13105156030

CONNECTOR, CAP L= 100 MM

$1.49

$

In Stock, Qty 6

0
