ES-230 - Echo Shred N Vac Blower (SN: P07313001001 - P07313999999) Intake Parts Diagram

Shred N Vac Blower

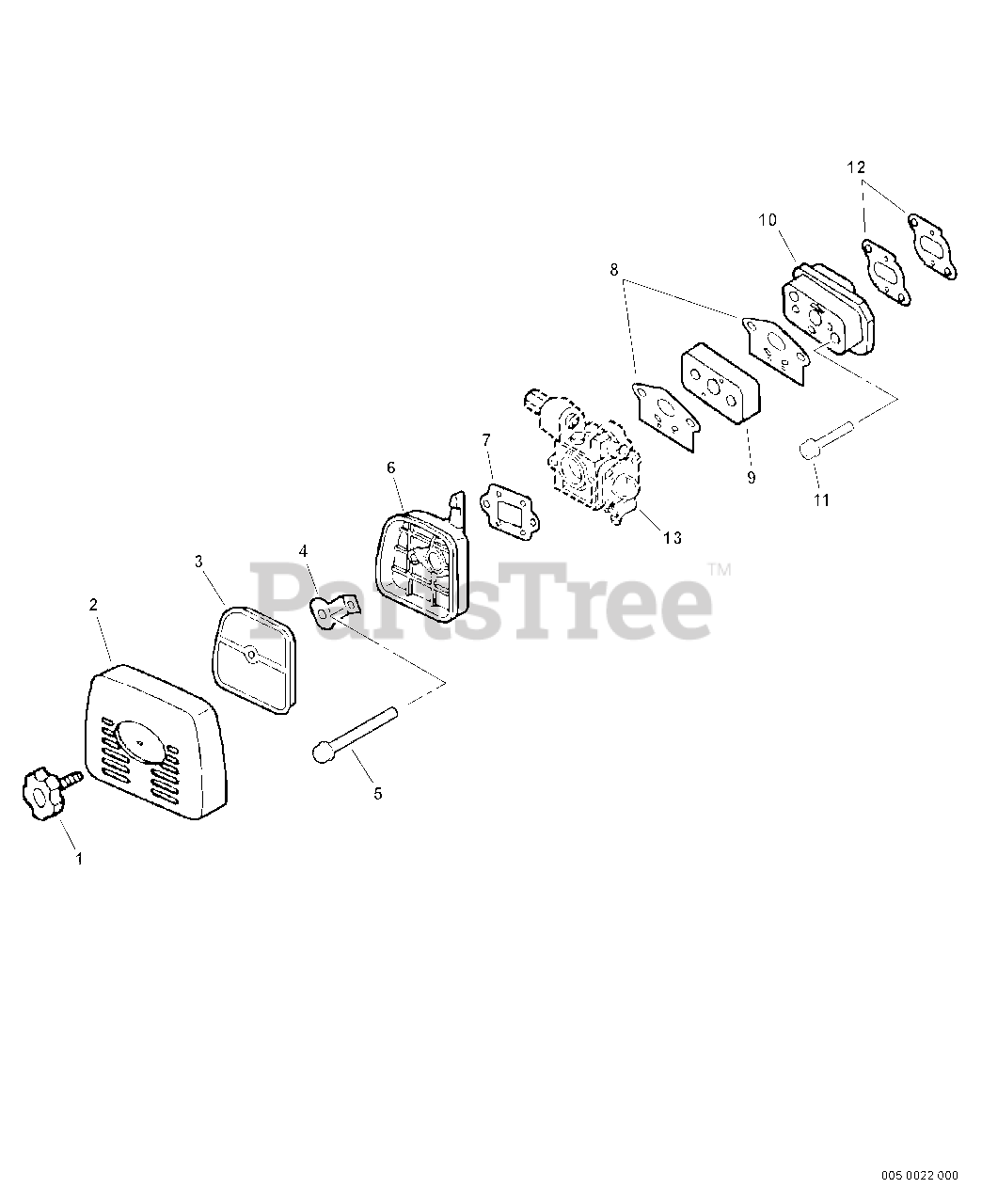

Intake Parts Diagram

  • Title

1

Echo 13040652131

THUMBSCREW

$5.99

$

In Stock, Qty 20+

0

2

Echo A232000120

COVER, AIR FILTER

$10.99

$

In Stock, Qty 7

0

3

Echo 13031051830

FILTER, AIR - HEAVY DUTY

$7.99

$

In Stock, Qty 20+

0

4

Echo A244000051

PLATE, PREVENT
(Superseded to Discontinued)

$

$

Not available

5

Echo 90024205065

SCREW - 5X65

$0.99

$

In Stock, Qty 20+

0

6

Echo P021001430

CASE, AIR FILTER

$8.99

$

In Stock, Qty 8

0

7

Echo 10158609660

SPACER

$4.49

$

In Stock, only 1 left!

0

8

Echo 13001013410

GASKET, INTAKE

$1.99

$

In Stock, Qty 13

0

9

Echo A200000030

INSULATOR, INTAKE

$8.49

$

Usually ships in 2-4 days

0

10

Echo 13001756431

INSULATOR, INTAKE

$14.99

$

In Stock, only 4 left!

0

11

Echo 90016205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

12

Echo 13001055930

GASKET, INTAKE

$1.99

$

In Stock, Qty 12

0

13

------------------

CARBURETOR

Note: See Carburetor Diagram For Details

$

$

Not available
